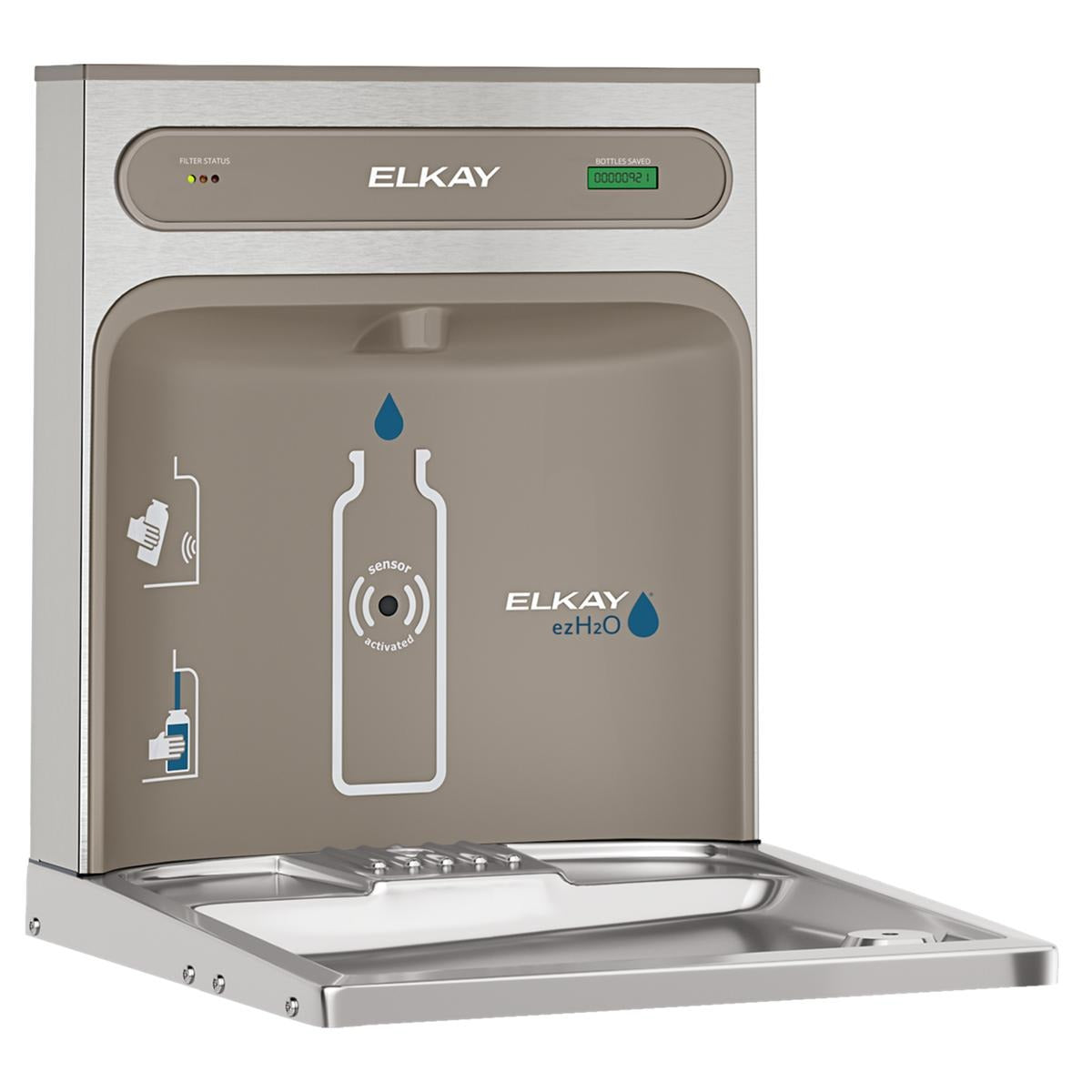

Bsc Preferred LMABFWS-RF Bottle Filling Station Kit

Product Description

The BSC PREFERRED LMABFWS-RF is a retrofit bottle filling station kit designed to convert existing EMABF 115V pushbar-style water coolers into modern, touchless hydration stations for indoor use. The kit delivers a fill rate of 1.5 gallons per minute through a laminar flow spout that minimizes spillage. An electronic sensor handles activation without contact. The included filter is rated for up to 3,000 gallons and is certified to NSF standards for reduction of lead, chlorine, and taste-affecting contaminants. An LED filter status indicator simplifies maintenance scheduling. Silver ion antimicrobial protection is applied to key plastic components to inhibit mold and mildew growth. A Green Ticker display tracks the number of 20 oz. plastic bottles saved, providing a sustainability metric for facility managers and building occupants.

This kit is intended for indoor installation in commercial and institutional facilities such as offices, schools, healthcare buildings, and gyms. It retrofits onto existing EMABF 115V pushbar-style water coolers, eliminating the need to replace the entire cooler unit. The bottle filler operates without refrigeration, making it a practical upgrade where chilled water is not required at the filling station. The kit includes a retrofit bottle filler head, basin with drain assembly, and a filter cartridge. A real drain system prevents standing water accumulation at the basin.

Key Features

• Touchless electronic sensor activation for hygienic, hands-free operation
• 1.5 gallon per minute fill rate with laminar flow design to reduce spillage
• NSF-certified filter rated for up to 3,000 gallons, reducing lead, chlorine, and taste issues
• LED visual filter monitor indicates when filter replacement is needed
• Silver ion antimicrobial protection on plastic components inhibits mold and mildew
• Green Ticker display counts equivalent 20 oz. plastic bottles saved
• Real drain system eliminates standing water in the basin

Compatibility

Designed to retrofit existing EMABF 115V pushbar-style water coolers for indoor installation.

Installation Notes

Installation of this retrofit kit should be performed by a licensed plumber familiar with commercial drinking water equipment and applicable IPC requirements. Shut off the water supply to the existing cooler before beginning any work. Follow all manufacturer instructions included with the kit for mounting the filler head and connecting the basin drain assembly. Do not install in outdoor or unconditioned spaces, as the unit is rated for indoor use only.
