Bsc Preferred LK940LGN05T6S Laminar Flow Faucet 1.5 Gpm

Product Description

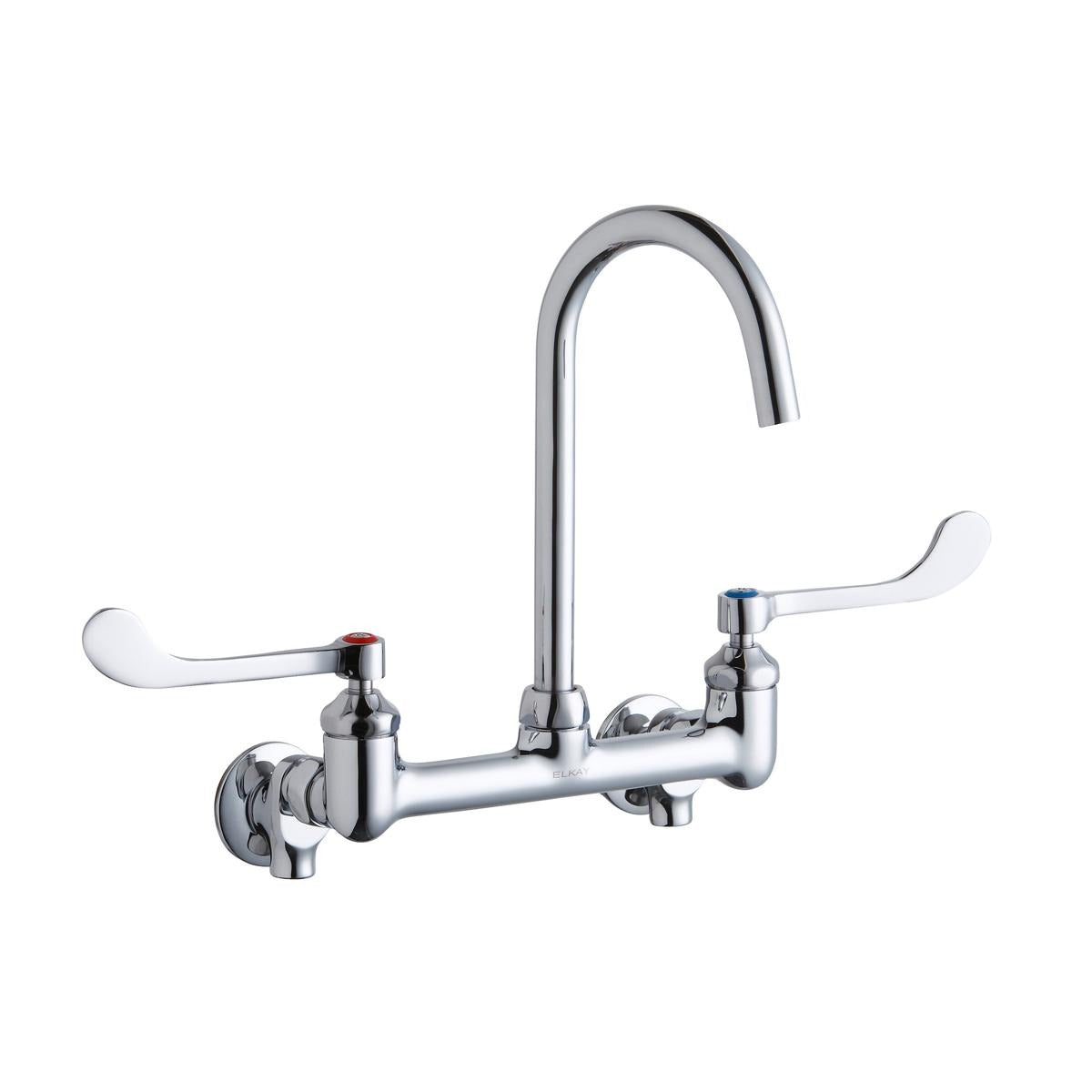

The BSC PREFERRED LK940LGN05T6S is an 8-inch centerset laminar flow faucet built for commercial plumbing installations. Constructed from solid brass with a certified lead-free design, it meets NSF/ANSI 61 and 372 standards for safe drinking water applications. The 5-inch gooseneck spout reaches 5.125 inches of clearance, paired with 6-inch wristblade handles for ease of use in high-traffic environments. A quarter-turn ceramic disc valve provides smooth, low-maintenance operation. The vandal-resistant aerator delivers 1.5 GPM at the primary setting, with additional inserts for 2.2 GPM and 0.5 GPM included for flexible flow-rate configurations. Licensed plumbers and commercial facility technicians are the typical installers for this fixture.

This faucet is designed for wall-mounted, two-hole centerset installations in demanding commercial settings. The 0.5-inch adjustable inlets with integral stops simplify shutoff and routine maintenance without requiring additional shutoff valves. A spout swing restrictor pin limits the arc of the spout for precise placement in confined or task-specific setups. Suitable applications include commercial kitchens, restrooms, educational facilities, and other institutional environments where vandal resistance, flow control, and NSF-certified materials are required by code or facility standards.

Key Features

• Solid brass construction rated lead-free, certified to NSF/ANSI 61 and 372
• Vandal-resistant aerator with 1.5 GPM primary flow rate; 2.2 GPM and 0.5 GPM inserts included
• 5-inch gooseneck spout with 5.125-inch reach and spout swing restrictor pin
• 6-inch wristblade handles for single-hand or wrist operation in sanitary environments
• Quarter-turn ceramic disc valve for smooth actuation and reduced maintenance
• 0.5-inch adjustable inlets with integral stops for in-line shutoff without additional valves

Compatibility

Designed for two-hole centerset wall-mounted installations with an 8-inch center-to-center spread, compatible with standard 0.5-inch supply connections in commercial plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and depressurize the lines before beginning any work. The integral stops on the adjustable inlets allow for service isolation without shutting off the branch supply. Do not overtighten the mounting hardware against the mounting surface, as solid brass fittings can be damaged by excess torque applied without proper backing.
