Bsc Preferred LK535GN05T4 Single Hole Gooseneck Faucet

Product Description

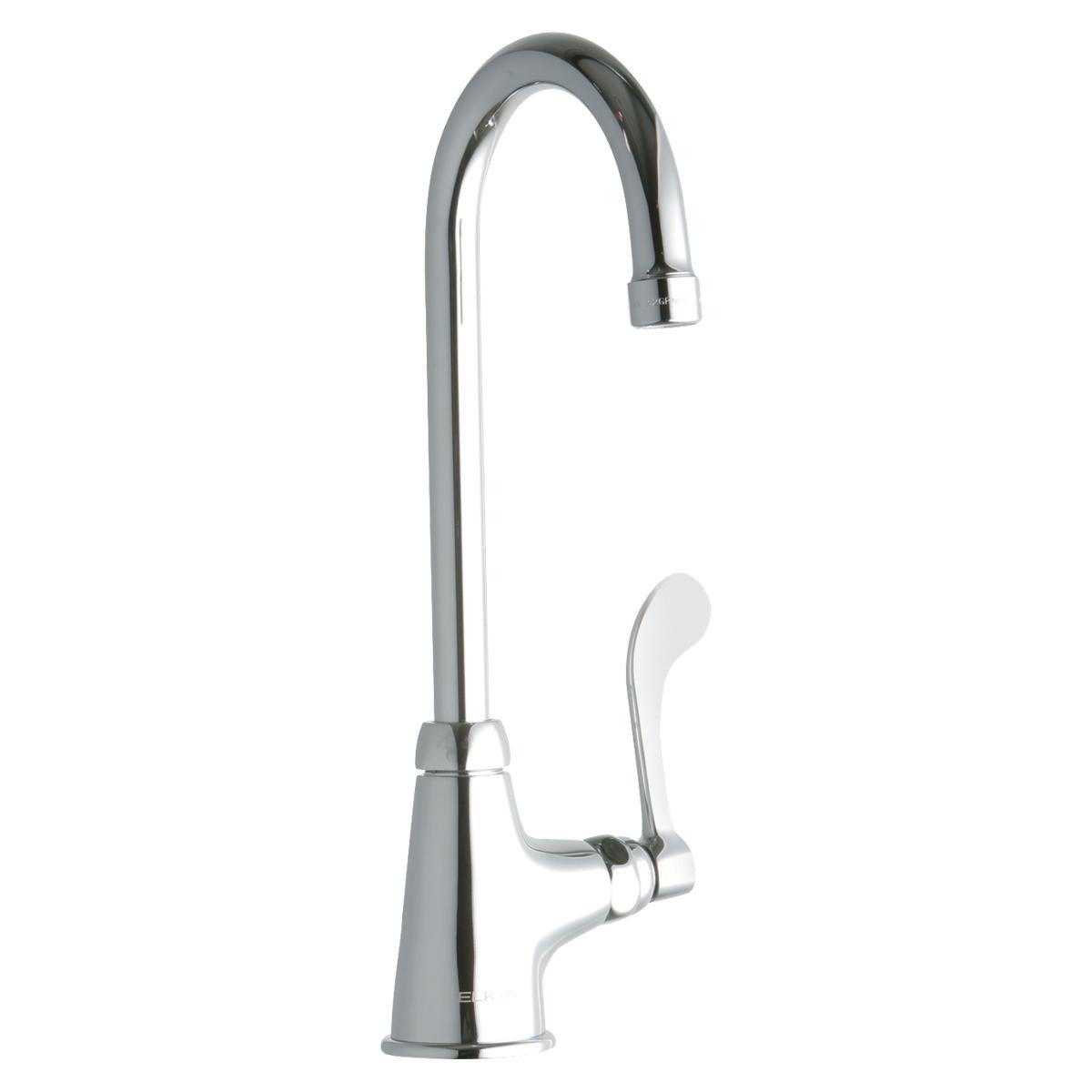

The BSC PREFERRED LK535GN05T4 is a deck-mounted, single-hole gooseneck faucet built for demanding commercial environments. Constructed from solid brass with a chrome finish, it features a 5-inch gooseneck spout with a 13.3125-inch spout height and a 5-inch reach, delivering ample clearance for washing tasks at commercial sinks. A quarter-turn ceramic disc valve controls flow, and the installed vandal-resistant aerator is rated at 1.5 GPM. Licensed plumbers and facilities maintenance professionals install this fixture in schools, commercial kitchens, healthcare facilities, and other institutional settings where durability and code compliance are required.

The LK535GN05T4 is suited for single-hole deck-mounted installations in commercial and institutional settings. The 4-inch wristblade handle meets ADA accessibility requirements, making it appropriate for public restrooms, classrooms, and healthcare wash stations. The faucet includes a spout swing restriction pin for applications where fixed spout position is required. Additional aerator inserts at 2.2 GPM and 0.5 GPM are included, allowing flow rate adjustment to match facility water-conservation requirements or local code mandates.

Key Features

• Solid brass body construction for long-term durability in high-use commercial environments
• 5-inch gooseneck spout with 13.3125-inch height and 5-inch reach for ample basin clearance
• Quarter-turn ceramic disc valve for smooth, reliable operation
• Installed 1.5 GPM vandal-resistant aerator with 2.2 GPM and 0.5 GPM inserts included
• 4-inch wristblade handle compliant with ADA accessibility standards
• Spout swing restriction pin for fixed-position applications
• Certified to NSF/ANSI 61 and NSF/ANSI 372 lead-free standards

Compatibility

Designed for single-hole deck-mounted sink installations in commercial and institutional applications. Requires a single faucet hole. Compatible with standard deck-mounted sink configurations where gooseneck spout clearance and ADA-compliant handle operation are required.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ASME A112.18.1 standards. Shut off the water supply and relieve line pressure before beginning installation or service. Verify that the mounting surface accommodates a single-hole configuration and that supply line connections match the faucet inlet specifications. Do not overtighten mounting hardware, as this may damage the brass body or deck surface.
