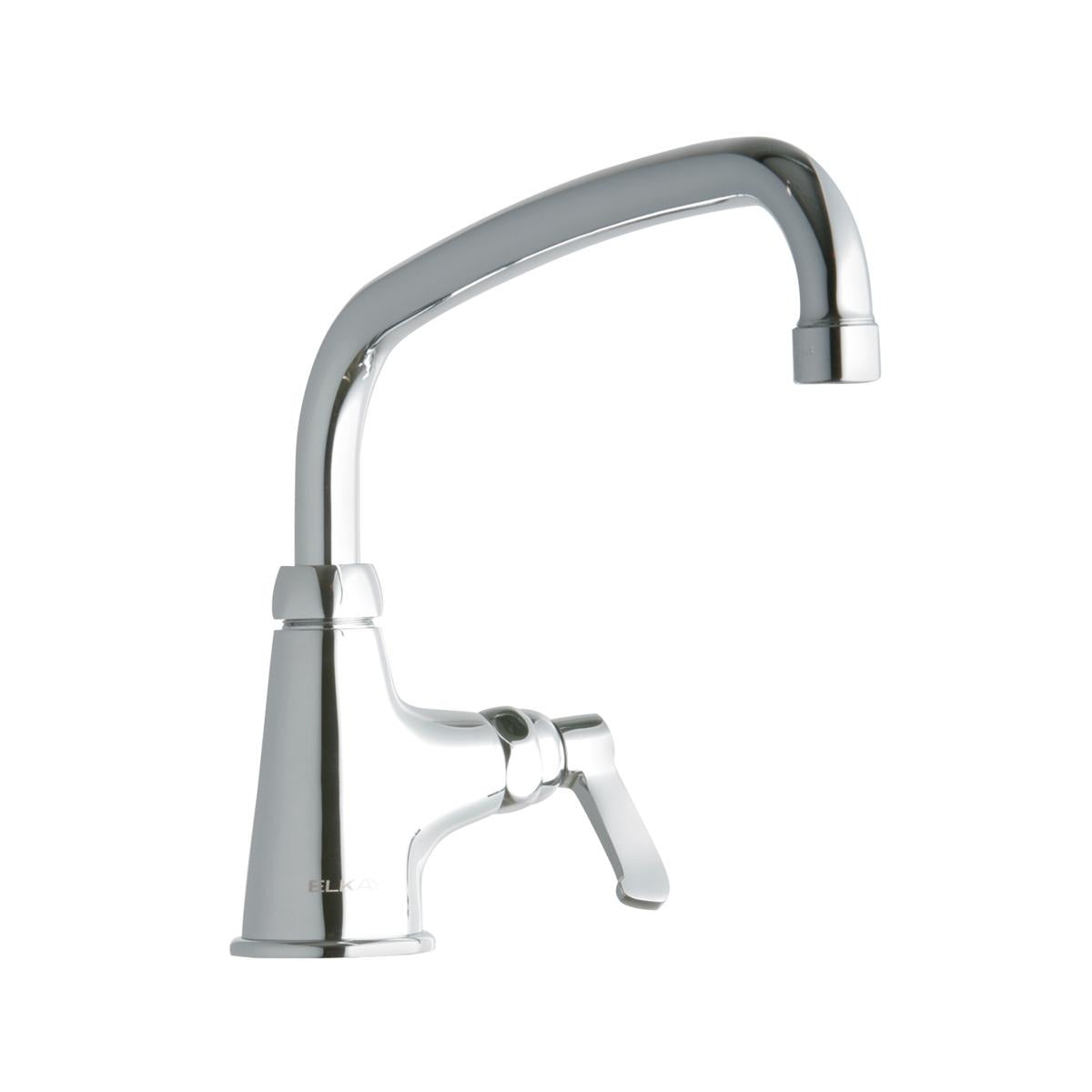

Bsc Preferred LK535AT10L2 Single Hole Faucet 1.5 Gpm

Product Description

The BSC PREFERRED LK535AT10L2 is a single hole, deck-mounted faucet built from solid brass for long-term durability in high-use environments. It features a 10-inch arc tube spout with a working height of 9.125 inches and a 2-inch lever handle that operates on a quarter-turn ceramic disc valve. The faucet ships with a 1.5 GPM vandal-resistant aerator pre-installed and includes additional aerator inserts rated at 2.2 GPM and 0.5 GPM. Certified low lead and ADA compliant, it meets current federal and state lead content regulations. Licensed plumbers and facilities maintenance technicians are the primary installers for this type of unit.

This faucet is suited for commercial and institutional applications where durability, water conservation, and code compliance are required. Typical installation locations include commercial kitchens, school classrooms, breakrooms, and other high-traffic or public-access areas. A spout swing restriction pin is included, allowing the spout to be locked in a fixed position when the application requires it. The deck-mount, single-hole design simplifies rough-in and fits standard counter or sink installations without additional drilling.

Key Features

• Solid brass construction for corrosion resistance in demanding commercial environments
• Quarter-turn ceramic disc valve for smooth, low-wear operation
• 1.5 GPM vandal-resistant aerator pre-installed; includes 2.2 GPM and 0.5 GPM inserts for configurable flow rates
• Spout swing restriction pin included to fix spout position when required
• ADA compliant lever handle design
• Certified low lead — meets federal and state lead content regulations

Compatibility

Designed for single-hole deck-mount installations. Compatible with standard countertop and sink configurations requiring a single faucet cutout. Suitable for commercial kitchens, classrooms, laboratories, and other high-use or institutional settings.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the applicable requirements of the International Plumbing Code (IPC). Shut off the water supply and relieve line pressure before beginning any work. Inspect the supply lines and shut-off valves for condition before completing the connection. Do not overtighten mounting hardware onto the deck surface, as solid brass fittings can be damaged by excessive force.
