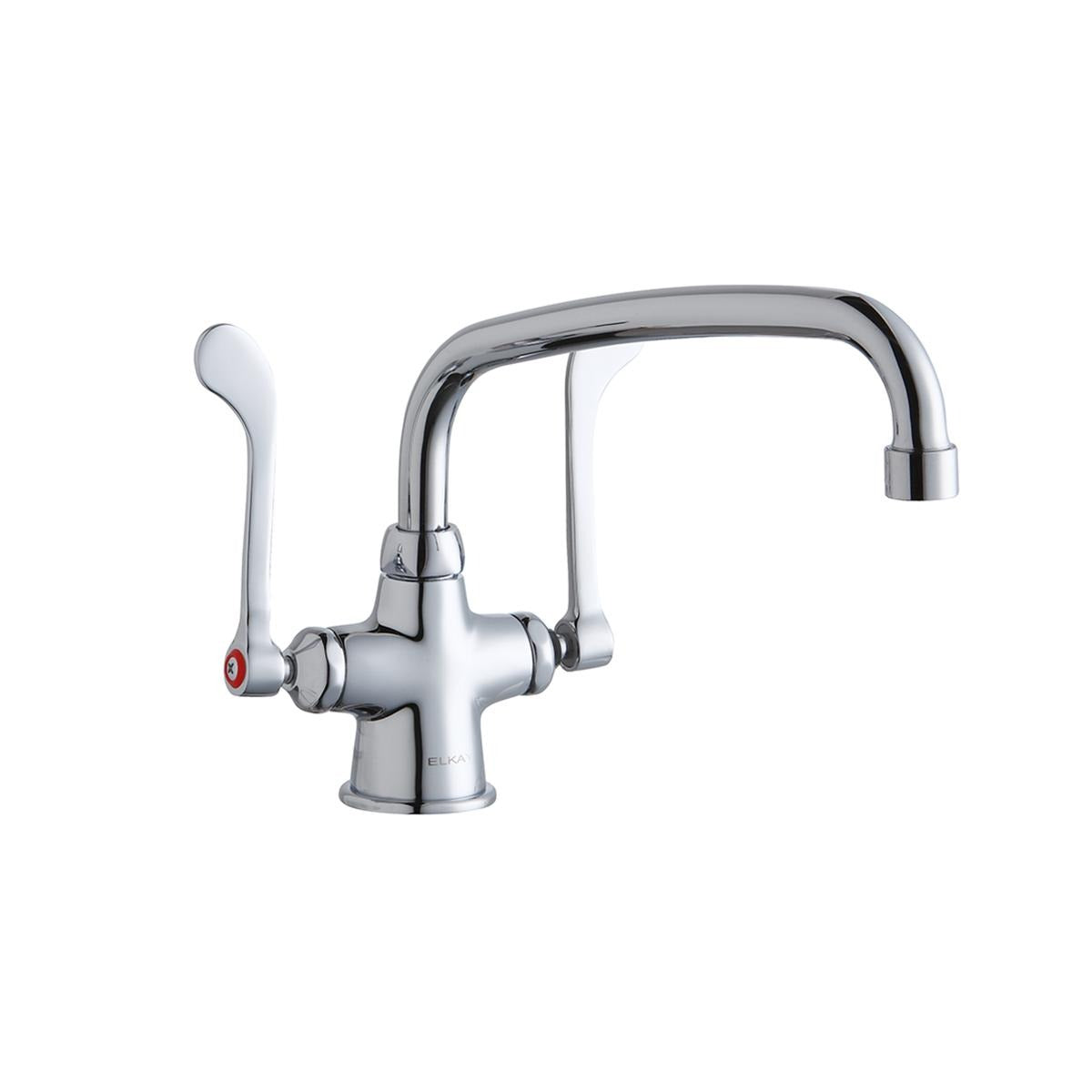

Bsc Preferred LK500AT10T6 Single Hole Faucet 1.5 Gpm

Product Description

The BSC PREFERRED LK500AT10T6 is a single-hole deck-mount faucet built for demanding commercial and institutional environments. It features a 10-inch arc tube spout, 6-inch wristblade handles, and a quarter-turn ceramic disc valve for smooth, consistent operation. Flow rate is 1.5 GPM through a vandal-resistant aerator, with included 2.2 GPM and 0.5 GPM aerator inserts for adjustable output. Solid brass construction handles the wear of high-traffic use. NSF/ANSI 61 and 372 certification confirms lead-free materials, meeting federal and applicable state low-lead requirements. A licensed plumber typically handles installation in commercial or institutional settings.

The LK500AT10T6 is suited for commercial kitchens, school restrooms, healthcare facilities, and similar high-use environments where durability and accessibility are required. The single faucet hole requirement simplifies deck cutout planning. ADA compliance makes it appropriate for accessible sink installations. The spout swing restriction pin locks the spout in a fixed position, which is useful in applications where controlled water direction is necessary. Package dimensions measure approximately 12.19 inches by 7.38 inches by 4.38 inches, and the unit weighs 5.5 pounds.

Key Features

• 10-inch arc tube spout provides clearance for washing tasks at the sink
• 6-inch wristblade handles allow low-effort, forearm-operated water control
• Quarter-turn ceramic disc valve delivers reliable, long-cycle operation
• Vandal-resistant aerator at 1.5 GPM; includes 2.2 GPM and 0.5 GPM insert options
• Spout swing restriction pin fixes spout in a stationary position for specialized applications
• ADA compliant; NSF/ANSI 61 and 372 certified lead-free construction

Compatibility

Designed as an OEM-style replacement or new-installation single-hole deck-mount faucet for commercial sinks and lavatories requiring a single faucet hole cutout.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply at the isolation valves or main shutoff before beginning work and relieve line pressure before disconnecting supply lines. Verify the sink deck thickness and hole diameter are compatible with the faucet shank before mounting. Do not overtighten the mounting hardware on the underside of the deck, as solid brass fittings can be damaged by excessive torque.
