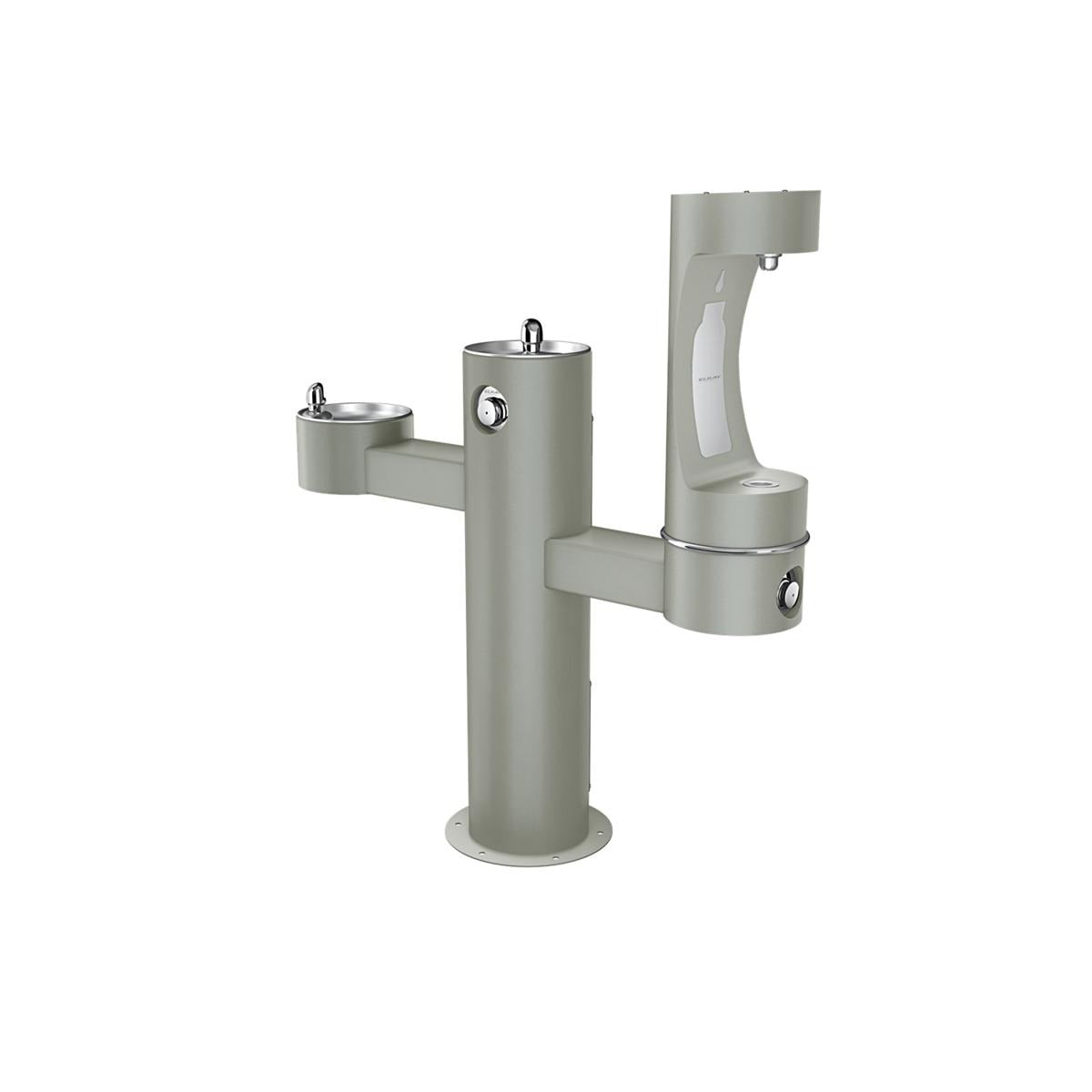

Bsc Preferred LK4430BF1LFRKGRY Tri-level Bottle Fill Station

Product Description

The BSC PREFERRED LK4430BF1LFRKGRY is a tri-level outdoor bottle filling station built on a single pedestal with three independent filling stations. Constructed from heavy-gauge 316 stainless steel, it resists corrosion and is rated for extreme weather conditions in exposed outdoor environments. The unit is non-refrigerated and non-filtered, operates without any electrical connection, and features a fully sealed freeze-resistant valve. A mechanical front bubbler button activates flow, and the laminar flow design delivers a clean fill with minimal splash. Licensed plumbers typically handle installation at educational campuses, parks, and recreational facilities.

The LK4430BF1LFRKGRY is intended for permanent outdoor installation at locations requiring multi-user water access at varying heights, such as school campuses, public parks, sports complexes, and municipal recreation areas. The tri-level configuration supports accessibility for users of different heights. The station requires no electrical service, simplifying rough-in and reducing ongoing operating costs. A chrome-plated hood guard and tamper-proof screws provide vandal resistance appropriate for high-traffic public settings.

Key Features

• Three independent filling stations on a single tri-level pedestal for simultaneous or sequential use
• Heavy-gauge 316 stainless steel construction for corrosion resistance in exposed outdoor environments
• Fully sealed, freeze-resistant valve minimizes groundwater contamination risk
• Laminar flow design reduces splash and promotes sanitary bottle filling
• Vandal-resistant build with tamper-proof screws and chrome-plated hood guard
• No electrical requirements — water supply connection only

Compatibility

Designed as an OEM-style outdoor pedestal bottle filling station suitable for permanent plumbing connections in parks, educational campuses, and recreational facilities requiring non-refrigerated, non-filtered potable water access.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the supply line before making any connections. The unit weighs 280 pounds — use appropriate lifting equipment and a minimum two-person crew for placement and anchoring. Do not install in locations where the supply line cannot be adequately protected from freezing, and verify local freeze-protection requirements before final positioning.
