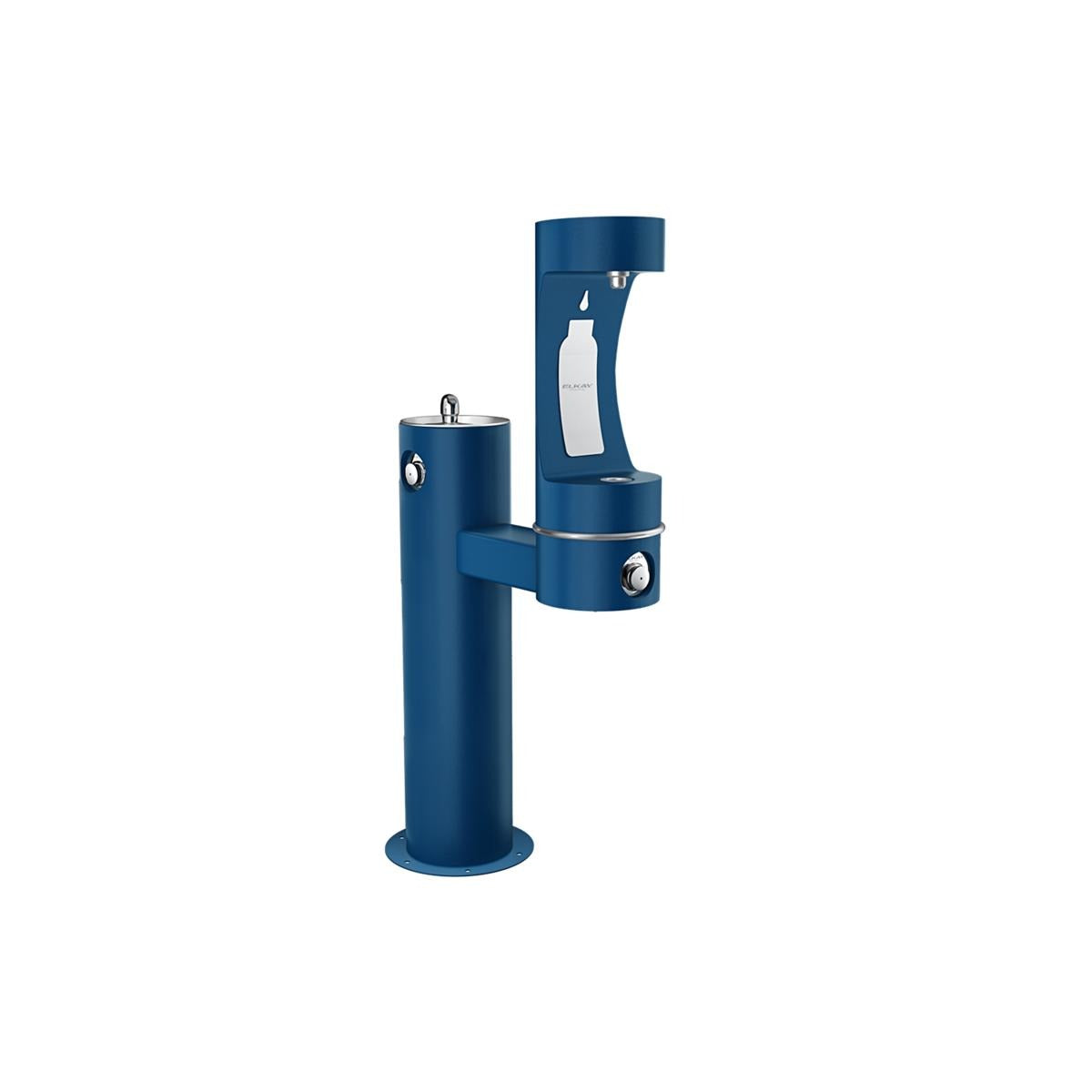

Bsc Preferred LK4420BF1LFRKBLU Bi-level Bottle Filling Station

Product Description

The BSC PREFERRED LK4420BF1LFRKBLU is a bi-level outdoor bottle filling and drinking station built from heavy-duty type-316 stainless steel. It serves two users simultaneously with a mechanical bottle filler button and a front bubbler button at each station. Laminar flow technology delivers a clean, low-splash fill stream. The unit is entirely non-refrigerated and requires no electrical connection, which simplifies rough-in and eliminates ongoing electrical load. A sealed freeze-resistant system protects internal waterways from freezing temperatures and reduces the risk of groundwater contamination. Lead-reduction performance is certified to NSF 372. Tamper-proof screws and a corrosion-resistant coating support long-term outdoor serviceability.

This filling station is designed for high-traffic outdoor environments including parks, recreational areas, school campuses, and municipal installations. The bi-level pedestal configuration serves users of varying heights, including those with accessibility needs. The non-refrigerated, self-contained design makes it suitable for locations where running an electrical circuit is impractical or cost-prohibitive. Vandal-resistant bubblers limit tampering and protect water quality in unsupervised public settings. The unit is available in twelve finishes, allowing it to coordinate with surrounding site fixtures and architecture.

Key Features

• Type-316 stainless steel construction with corrosion-resistant coating for long-term outdoor durability
• Bi-level pedestal design with two independent hydration stations
• Laminar flow bottle filler technology reduces splash and cross-contamination risk
• Sealed freeze-resistant system — no electrical power required for operation
• Vandal-resistant bubblers and tamper-proof screws for public-setting security
• NSF 372 certified for lead-reduction compliance

Compatibility

Designed as a standalone outdoor pedestal bottle filling and drinking station; no additional compatible equipment or replacement part numbers were specified in available product data.

Installation Notes

Installation is typically performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and depressurize the line before making any connections to the unit. Because this station requires no electrical supply, no electrical permit or low-voltage wiring is involved. Anchor the pedestal base per the manufacturer mounting instructions before completing the water connection to prevent unit movement under load.
