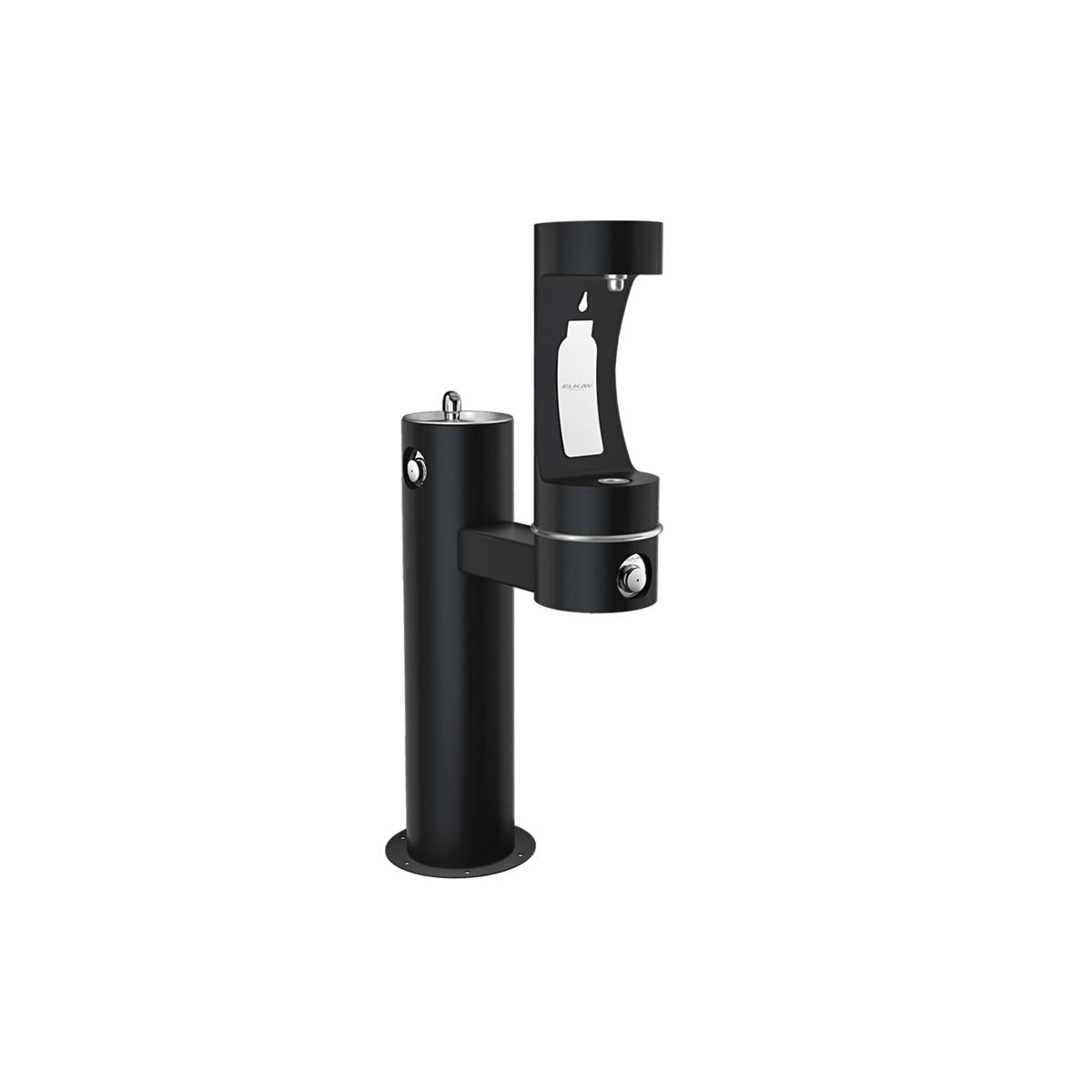

Bsc Preferred LK4420BF1LBLK Bi-level Bottle Filling Station

Product Description

The BSC PREFERRED LK4420BF1LBLK is a bi-level pedestal-mounted outdoor bottle filling and drinking station designed for high-traffic public and institutional environments. It houses two hydration points: a mechanical bottle filler and a front-facing bubbler, both constructed from type 316 stainless steel for corrosion resistance. The unit ships at 147 pounds and measures 57 inches in height, 31 inches in width, and 14 inches in depth, making it a substantial, freestanding fixture. No electrical connection is required. Licensed plumbers install this unit as part of a potable water distribution system.

This station is suited for outdoor installations at educational campuses, parks, athletic facilities, and recreational areas where durable, accessible hydration infrastructure is required. The bi-level configuration serves users of varying heights, including wheelchair-accessible applications. The black powder-coated finish and stainless steel construction are selected for installations that face direct weather exposure and elevated vandalism risk. It is a non-filtered, non-refrigerated unit, which simplifies rough-in and eliminates ongoing filter maintenance.

Key Features

• Type 316 stainless steel construction with black powder-coated finish for corrosion and weather resistance
• Bi-level design with two stations: one mechanical bottle filler and one front bubbler
• Laminar flow technology minimizes splash during bottle filling
• Vandal-resistant chrome-plated integral hood guards and tamper-resistant screws
• Mechanical activation buttons require no electrical power
• NSF 372 compliant for lead-free drinking water contact surfaces

Compatibility

Designed as an OEM-style freestanding pedestal bottle filling station for outdoor potable water supply lines in commercial, institutional, and municipal plumbing systems.

Installation Notes

Installation must be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements for potable water fixtures. Shut off the water supply to the feed line before making any connections. The unit is freestanding and requires anchoring per manufacturer instructions to prevent tipping in high-traffic environments. Because this station is non-refrigerated and non-filtered, no electrical rough-in or drain connection for a filter system is needed, though a drain line for the bubbler must be plumbed to local code.
