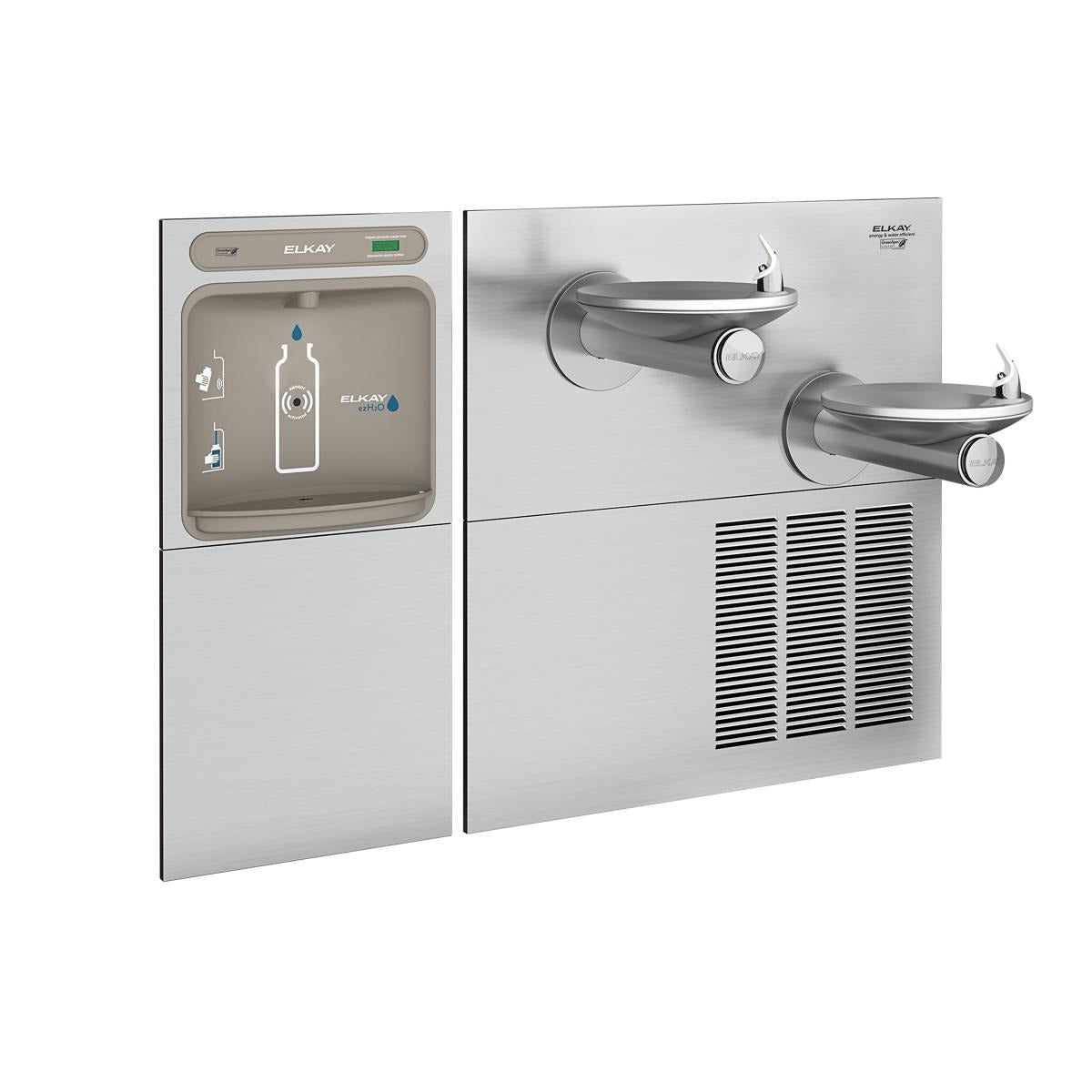

Bsc Preferred EZWS-SFGRN28K Bottle Filling Station

Product Description

The BSC PREFERRED EZWS-SFGRN28K is a bi-level, wall-mounted bottle filling station and drinking fountain designed for high-traffic indoor environments. It delivers chilled, filtered water through three access points: a sensor-activated touchless bottle filler, a Flexi-Guard StreamSaver antimicrobial bubbler, and a second-level bubbler configuration. The bottle filler operates at 1.1 gallons per minute with a 20-second automatic shut-off. The hermetically sealed refrigeration system provides a chilling capacity of 8.0 gallons per hour. A Green Ticker display tracks the number of single-use plastic bottles diverted from waste. Plumbing and facilities contractors handle installation, which requires a water supply connection and drain line.

This unit is suited for schools, municipal buildings, parks, and other public indoor spaces where high daily usage demands reliable, sanitary hydration access. The bi-level configuration accommodates users of different heights, including ADA-accessible mounting heights when installed per applicable codes. The real drain system eliminates standing water in the basin. Laminar flow from the bottle filler reduces splashback and keeps the fill port clean during use. The package includes the fountain, chiller unit, and mounting frames as a complete assembly ready for installation.

Key Features

• Sensor-activated bottle filler with 1.1 gallon-per-minute fill rate and 20-second auto shut-off
• Hermetically sealed refrigeration system with 8.0 gallons-per-hour chilling capacity
• Flexi-Guard StreamSaver bubbler with flexible mouth guard for user safety
• Antimicrobial protection on key plastic components to inhibit mold and mildew growth
• Green Ticker display showing cumulative plastic bottles saved from single-use waste
• Real drain system eliminates standing water; laminar flow design reduces splashback
• Complete package includes fountain, chiller, and mounting frames

Compatibility

Designed for wall-mounted indoor installation in schools, parks, and public facilities requiring a bi-level bottle filling station and drinking fountain combination with chilled water delivery.

Installation Notes

Installation is performed by a licensed plumber or qualified facilities contractor. Shut off the water supply to the installation area before beginning rough-in work. The unit requires a potable cold-water supply line, a drain connection, and a dedicated electrical circuit to power the refrigeration compressor. Verify mounting height and ADA clearance requirements per applicable local codes and IPC standards before securing the mounting frames to the wall.
