Bsc Preferred EZWS-ERPBM28K Bottle Filling Station 8.0 Gph

Product Description

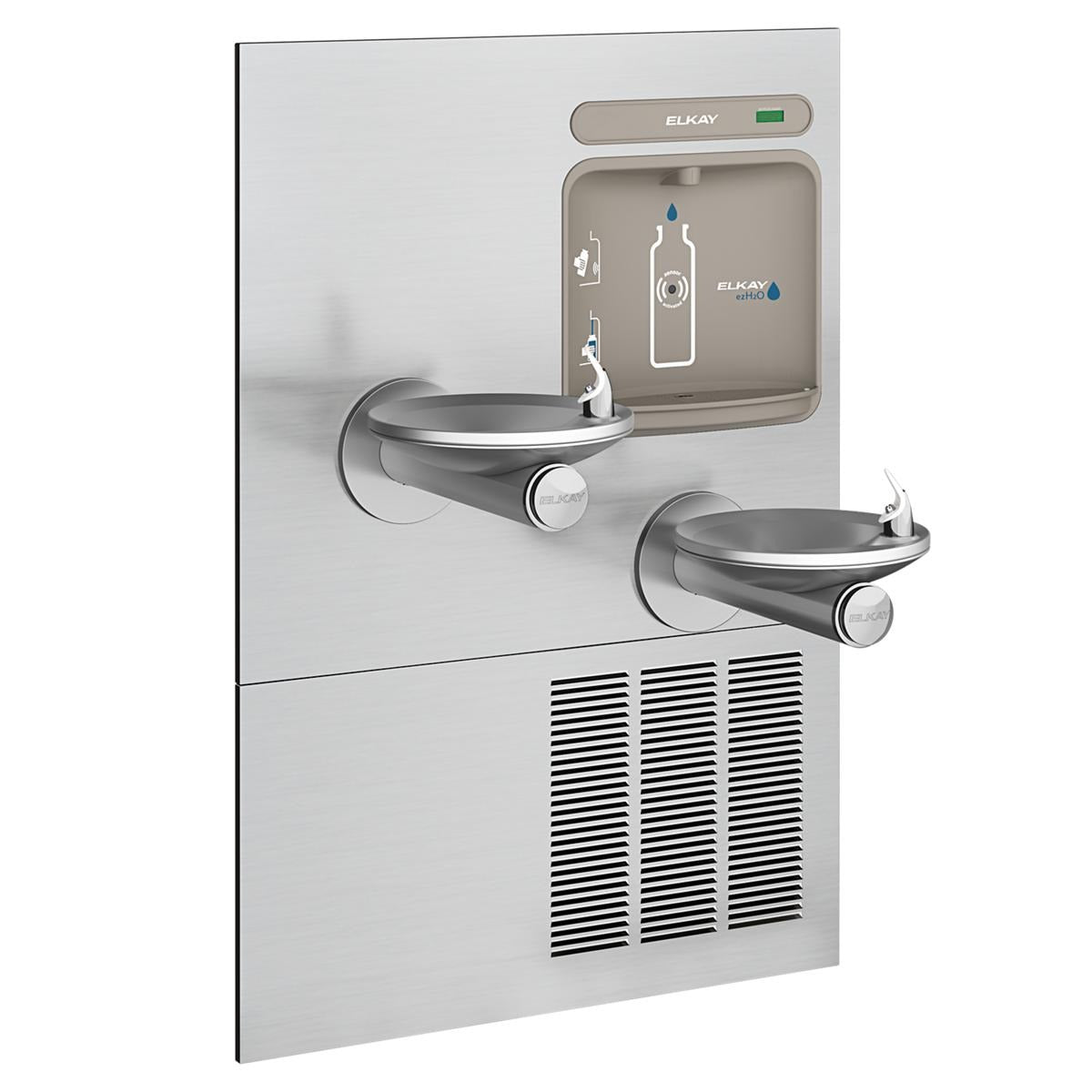

The BSC PREFERRED EZWS-ERPBM28K is a bi-level, wall-mounted bottle filling station with an integrated refrigerated drinking fountain designed for high-traffic indoor environments. The unit delivers chilled water at 8.0 gallons per hour (GPH) and fills bottles at 1.1 GPM through a sensor-activated, touchless fill valve. A laminar flow spout minimizes splash and reduces contamination risk. Silver ion antimicrobial protection is applied to key plastic components to inhibit mold and mildew growth. A Green Ticker display tracks the number of single-use plastic bottles diverted from landfills. Licensed plumbers and facilities maintenance technicians handle installation in commercial and institutional settings.

This station is suited for schools, offices, gyms, healthcare facilities, and public buildings where both bottle filling and traditional drinking fountain access are required. The bi-level configuration serves users of varying heights. A push-button mechanical front bubbler serves traditional fountain users alongside the touchless sensor fill port. The included mounting frame and chiller assembly simplify wall installation. The Real Drain system eliminates standing water in the drain pan, reducing maintenance burden and bacterial growth risk. This model runs on 115 volts at 60 Hz and draws 370 watts, making it compatible with standard commercial electrical circuits without a dedicated high-amperage circuit.

Key Features

• Touchless sensor-activated bottle fill port at 1.1 GPM for hands-free, hygienic operation
• Refrigeration output of 8.0 GPH delivers consistently chilled water under sustained demand
• Silver ion antimicrobial protection on plastic components inhibits mold and mildew growth
• Green Ticker display shows cumulative plastic bottles saved, supporting sustainability reporting
• Real Drain system eliminates standing water in the drain pan for lower maintenance frequency
• Bi-level design with integral SwirlFlo bubbler accommodates both bottle filling and direct drinking use
• Wall-mount installation with included mounting frame and chiller for a complete, self-contained assembly

Compatibility

Designed as an OEM-style wall-mounted bottle filling and drinking fountain unit for commercial and institutional plumbing systems operating on a standard 115V/60Hz electrical supply with a cold water supply line and drain connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the cold water supply and disconnect electrical power before beginning any connection work. The unit requires a dedicated cold water supply line, a drain connection, and a grounded 115V/60Hz electrical outlet or hardwire connection. Do not operate the refrigeration system without water supply connected, as running dry can damage the chilling components.
