Bsc Preferred EZWS-ERPB8-RF Bottle Filling Station

Product Description

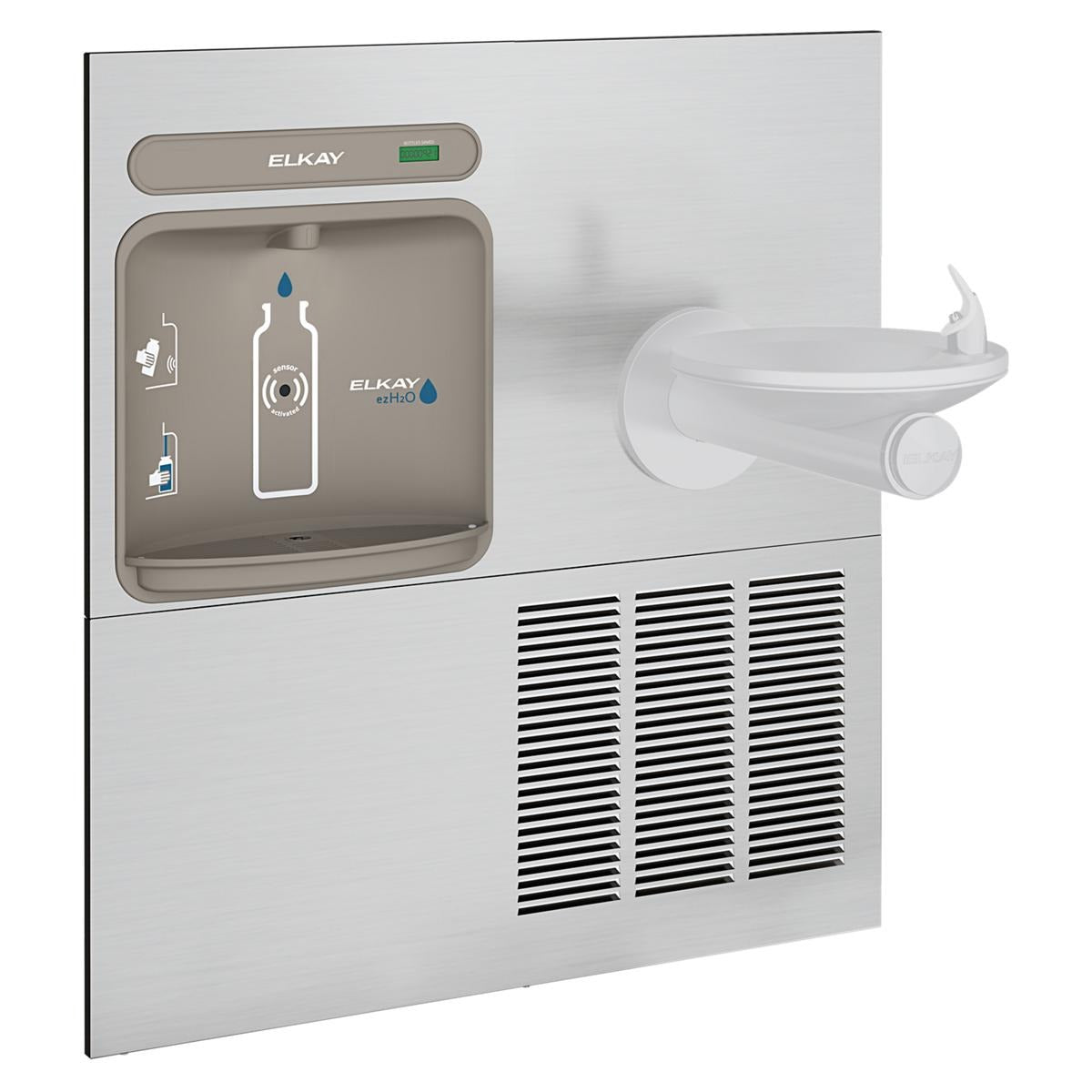

The BSC PREFERRED EZWS-ERPB8-RF is a retrofit bottle filling station designed to integrate with existing refrigerated push-button fountains, converting them into touchless, sensor-activated hydration points. The unit delivers chilled water at a fill rate of 1.1 gallons per minute using a laminar flow design that minimizes splash and maintains a clean fill. Construction is non-filtered stainless steel throughout the main body, with key plastic components treated with silver ion antimicrobial protection to inhibit mold and mildew growth. Power draw is 15 watts at 115 volts, 60 Hz. Licensed plumbers install this unit in indoor commercial and institutional environments where sanitation and water access are priorities.

This station is built for indoor retrofit applications in schools, gymnasiums, office buildings, and public facilities where existing bi-level refrigerated Soft Sides push-button fountains are already installed. The touchless sensor activation eliminates contact at the fill point, supporting infection-control protocols in high-traffic settings. An integrated Green Ticker display tracks the cumulative count of plastic bottles displaced, providing a visible sustainability metric for facility managers and building occupants. The Flexi-Guard Safety Bubbler meets ADA accessibility guidelines, supporting compliant installations in public and institutional facilities.

Key Features

• Touchless sensor activation for hands-free, contact-free water filling
• 1.1 gallons per minute fill rate with laminar flow for minimal splash
• Silver ion antimicrobial treatment on key plastic components inhibits mold and mildew
• Integrated Green Ticker tracks and displays cumulative plastic bottles saved
• Real drain system eliminates standing water for improved sanitation
• Flexi-Guard Safety Bubbler meets ADA accessibility guidelines
• Low power consumption at 15 watts, 115 volts, 60 Hz

Compatibility

Designed as a retrofit solution for existing bi-level refrigerated Soft Sides push-button fountain units. Includes integral bottle filling station panels and mounting frame required for installation.

Installation Notes

Installation is performed by a licensed plumber. Shut off the water supply and disconnect power to the existing fountain before beginning the retrofit. The unit includes a mounting frame and panels; follow the manufacturer installation instructions for proper alignment and connection to the existing fountain plumbing. Verify the electrical supply matches the unit rating of 115 volts, 60 Hz before restoring power.
