Bsc Preferred EZWS-ERFP8-RF Bottle Filling Station 8.0 Gph

Product Description

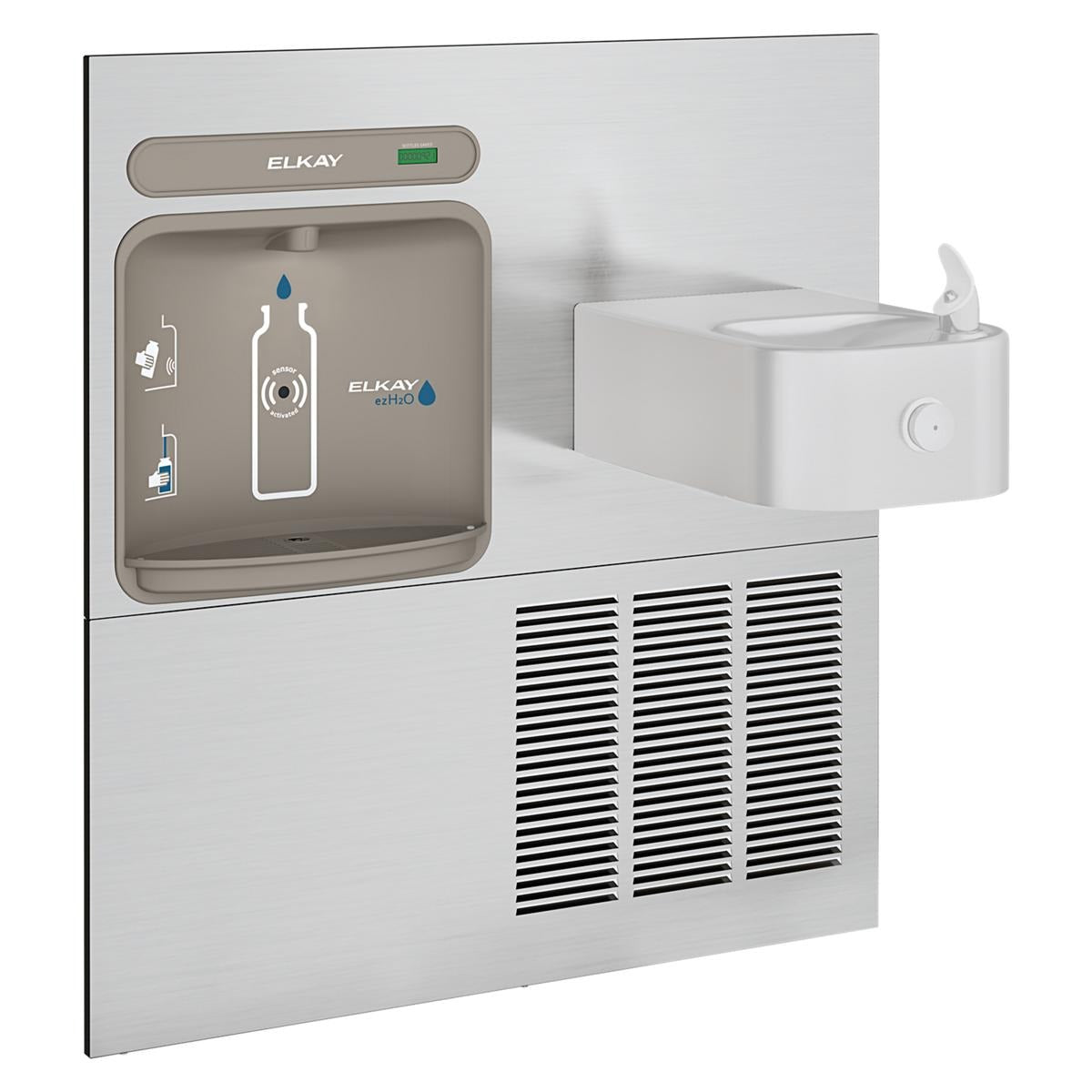

The BSC PREFERRED EZWS-ERFP8-RF is a retrofit bottle filling station and drinking fountain combo designed to upgrade an existing refrigerated push-button fountain into a modern hydration station. It delivers a chilling output of 8.0 gallons per hour (GPH) and a bottle fill rate of 1.1 gallons per minute (GPM) through a hermetically sealed refrigeration system. A touchless infrared sensor activates the bottle filler for hands-free, hygienic operation, while a mechanical front bubbler button retains standard fountain function. Licensed plumbers and facilities maintenance professionals typically handle installation in commercial and institutional settings.

This unit is suited for high-traffic indoor locations including schools, office buildings, and fitness centers. It retrofits onto existing refrigerated push-button fountains, making it a practical upgrade without a full fixture replacement. The laminar flow nozzle delivers a splash-free fill stream. An integrated Green Ticker display counts estimated plastic bottles diverted from landfills, which is a common requirement for green building and sustainability reporting programs. The integral drain system eliminates standing water around the unit, keeping the installation area clean and presentable.

Key Features

• Touchless infrared sensor activation for hygienic, hands-free bottle filling
• 8.0 GPH chilling capacity via hermetically sealed refrigeration system
• 1.1 GPM fill rate for rapid bottle filling
• Mechanical front bubbler button for standard fountain access
• Laminar flow nozzle provides a splash-free filling experience
• Antimicrobial protection on key components to inhibit mold and mildew growth
• Integrated Green Ticker tracks estimated plastic bottles saved from landfills
• Meets ADA guidelines for bottle filler reach range and wheelchair access

Compatibility

Designed as an OEM-style retrofit for existing refrigerated push-button drinking fountains; verify mounting frame dimensions and drain connection against existing fixture before ordering.

Installation Notes

Installation should be performed by a licensed plumber familiar with potable water supply and drain connections. Shut off the water supply and relieve line pressure before beginning any work. Electrical connections to the refrigeration system must comply with applicable NEC requirements; verify voltage and circuit capacity at the rough-in location. Included panels and mounting frame are part of the retrofit kit — review the manufacturer installation instructions for proper sequencing before starting the retrofit.
