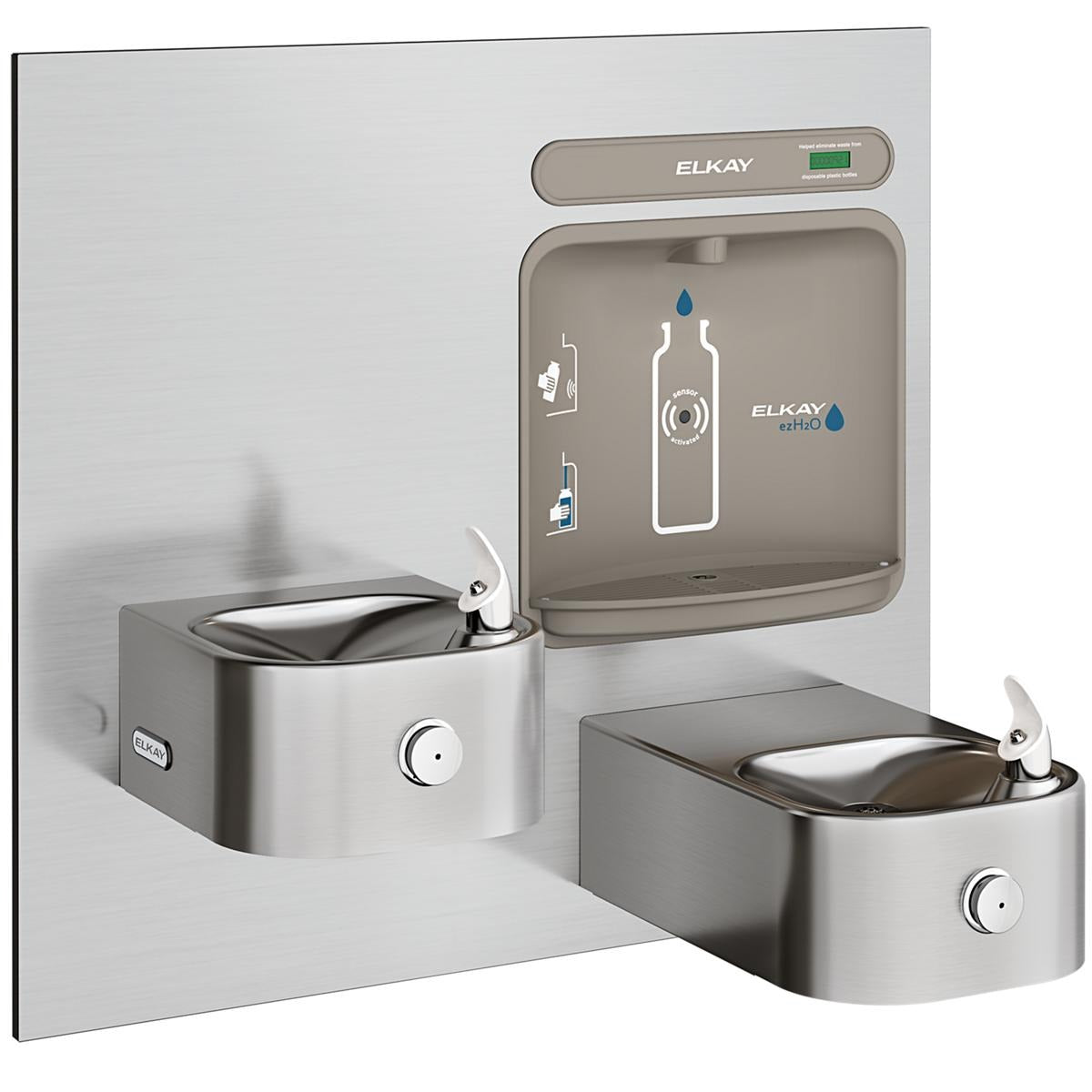

Bsc Preferred EZWS-EDFP217K Bottle Filling Station

Product Description

The BSC PREFERRED EZWS-EDFP217K is a dual-station, non-refrigerated bottle filling station with an integral soft-sides drinking fountain designed for permanent indoor installation. Operating at 115V/60Hz with a draw of just 15 watts, the unit delivers a fill rate of 1.5 gallons per minute through a touchless electronic sensor that activates the bottle filler without hand contact. A mechanical push-button activates the integrated fountain. Antimicrobial silver ion protection inhibits mold and mildew growth on key plastic components, and the Real Drain system eliminates standing water in the basin area. Licensed plumbers or qualified facilities technicians handle installation and commissioning.

This station is built for high-traffic indoor environments where bottle filling and drinking fountain access are both required. Typical install locations include schools, universities, office buildings, gyms, and recreational facilities. The dual-station configuration lets two users fill simultaneously, reducing wait times during peak-use periods. The non-refrigerated design keeps power consumption minimal and eliminates refrigerant service requirements, making it well suited for facilities that manage their own maintenance programs without HVAC or refrigeration support on site.

Key Features

• Touchless electronic sensor activates bottle filler for hands-free, sanitary operation
• Dual filling stations allow simultaneous use by multiple occupants
• Green Ticker display tracks the number of 20 oz. plastic bottles diverted from landfill
• Flexi-Guard Safety Bubbler delivers soft, smooth laminar flow with no splash
• Antimicrobial silver ion protection on key plastic components inhibits mold and mildew
• Real Drain system removes standing water to maintain a clean, hygienic basin
• Non-refrigerated design at 15 watts minimizes energy consumption

Compatibility

Designed as a self-contained, wall-mounted or floor-standing indoor bottle filling and drinking fountain unit. Requires a standard 115V/60Hz electrical supply and a potable cold-water supply line with appropriate shutoff. No chilling or refrigeration components are included in this configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the potable water supply and de-energize the circuit before making any connections. The unit requires both a water supply connection and an electrical connection to a properly grounded 115V/60Hz circuit. Do not install in outdoor or unconditioned spaces, as this station is rated for indoor use only.
