Bsc Preferred EZSTLDDLC Bi-level Ada Wall Mount Water Cooler

Product Description

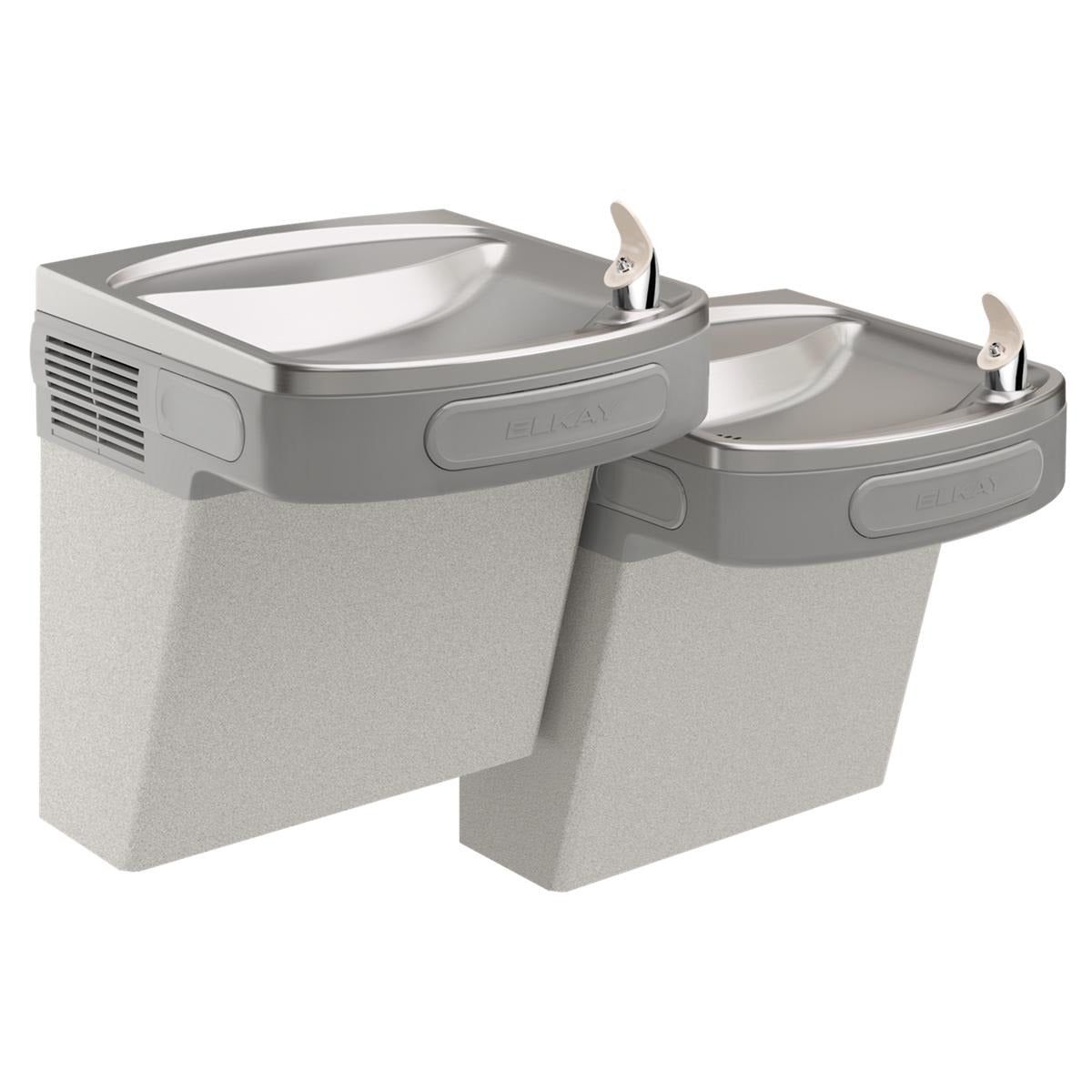

The BSC PREFERRED EZSTLDDLC is a wall-mount, bi-level drinking water cooler designed for indoor commercial and institutional environments. It provides two separate drinking stations in a single unit, meeting ADA compliance requirements for accessibility. The unit operates on 115 volts at 60 Hz, drawing just 0.1 full-load amps at a rated power consumption of 15 watts. It is non-filtered and non-refrigerated, delivering chilled water through a connected supply line. The exterior features a light gray granite finish suited to modern architectural interiors. The Flexi-Guard Safety Bubbler includes a flexible mouth guard to reduce injury risk and limit microbial contact at the drinking surface. A fastenerless integrated drain system reduces debris accumulation and simplifies routine maintenance.

This cooler is intended for installation in schools, offices, government facilities, and public buildings where ADA-compliant dual-height hydration stations are required. The unit supports two installation configurations: a standard high-left/low-right layout or an alternate low-left/high-right layout, providing flexibility for varying spatial and traffic-flow conditions. The electronic front bubbler pushbar allows straightforward, low-effort activation. This model is built to NSF 372 standards for low lead content, making it appropriate for potable water applications where lead reduction compliance is required by code or facility policy.

Key Features

• ADA compliant dual-station design with high and low drinking levels in one unit
• Flexi-Guard Safety Bubbler with flexible mouth guard reduces injury risk and microbial contact
• Fastenerless integrated drain system minimizes debris buildup and eases cleaning
• Low power draw: 15 rated watts, 0.1 full-load amps at 115 volts/60 Hz
• NSF 372 compliant for low lead content in drinking water contact surfaces
• Supports two mounting configurations: high-left/low-right or low-left/high-right
• Light gray granite finish for durability and compatibility with modern interior designs

Compatibility

Designed as an OEM-style wall-mount unit for indoor potable water supply lines in residential, commercial, or institutional plumbing systems where a bi-level ADA-compliant drinking station is required.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and disconnect power at the circuit breaker before beginning any work. Confirm wall blocking or backing is sufficient to support the unit weight of 46 pounds at the specified mounting height. Verify supply line pressure and drain connection clearances before final mounting to ensure proper function and code compliance.
