Bsc Preferred EZSTL8WSVRSK Dual Drinking Station Ada

Product Description

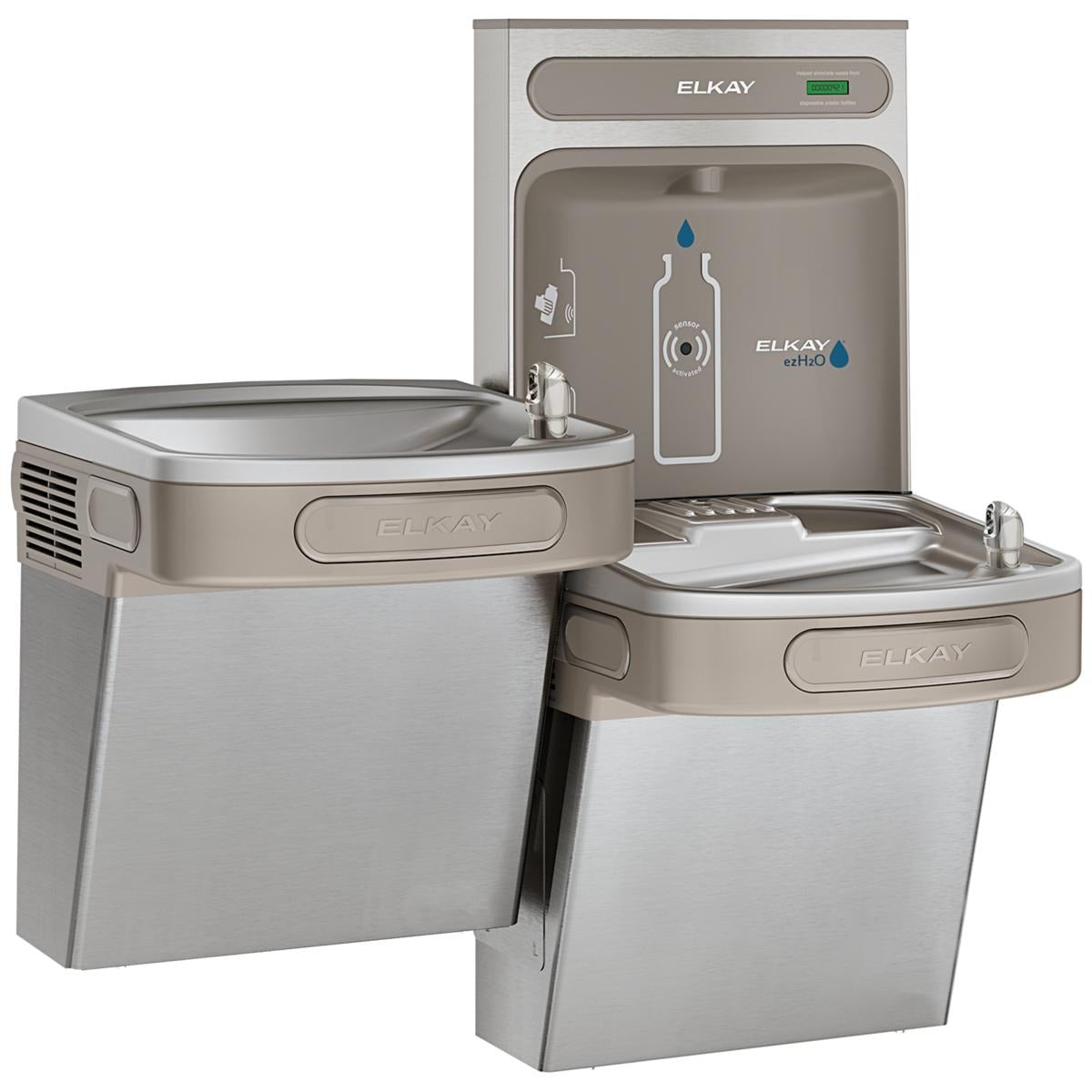

The BSC PREFERRED EZSTL8WSVRSK is a bi-level, ADA-compliant dual drinking station that combines a touchless bottle filling station with a traditional push-bar bubbler in a single wall-mounted unit. Constructed from durable stainless steel with chrome-plated integral hood guards, it delivers chilled water at 8.0 gallons per hour through a hermetically sealed refrigeration system. A laminar flow design reduces splash during bottle fills. Antimicrobial protection on key components inhibits mold and mildew growth. The integrated Green Ticker displays a running count of 20-ounce plastic bottles diverted from the waste stream, making this unit appropriate for sustainability-focused facilities. Licensed plumbers and facilities maintenance crews handle installation and service.

This dual station is suited for high-traffic indoor environments including schools, parks, municipal buildings, and public recreation facilities where simultaneous quick-fill and traditional drinking access are both required. The unit can be configured for high-left/low-right or high-right/low-left orientation, allowing installers to match site-specific clearance and accessibility requirements. Both the bottle filler and the bubbler are sensor- or push-bar-activated. The real drain feature eliminates standing water at the base, reducing maintenance demands and supporting cleaner installations in occupied spaces.

Key Features

• Dual-function unit: touchless bottle filling station and push-bar or sensor-activated bubbler in one cabinet
• ADA-compliant bi-level design with reversible high/low configuration
• Chilling capacity of 8.0 gallons per hour via hermetically sealed refrigeration system
• Stainless steel construction with chrome-plated integral hood guards for vandal resistance
• Laminar flow bottle fill reduces splash and contamination
• Antimicrobial protection on key surfaces inhibits mold and mildew growth
• Integrated Green Ticker tracks 20-ounce plastic bottles saved from the waste stream

Compatibility

Designed as an OEM wall-mount drinking station for indoor plumbing installations requiring ADA-compliant dual-access water delivery in commercial and institutional settings.

Installation Notes

Installation requires a licensed plumber and should conform to applicable IPC and local plumbing codes. Shut off the water supply and disconnect electrical power at the circuit breaker before mounting or servicing the unit. The unit requires a 115-volt, 60 Hz dedicated electrical circuit and a standard potable water supply line with appropriate shutoff valve. Do not install in unprotected outdoor or freeze-risk environments; this unit is rated for indoor use only.
