Bsc Preferred EZSTL8WSVRLK Bi-level Bottle Filling Station

Product Description

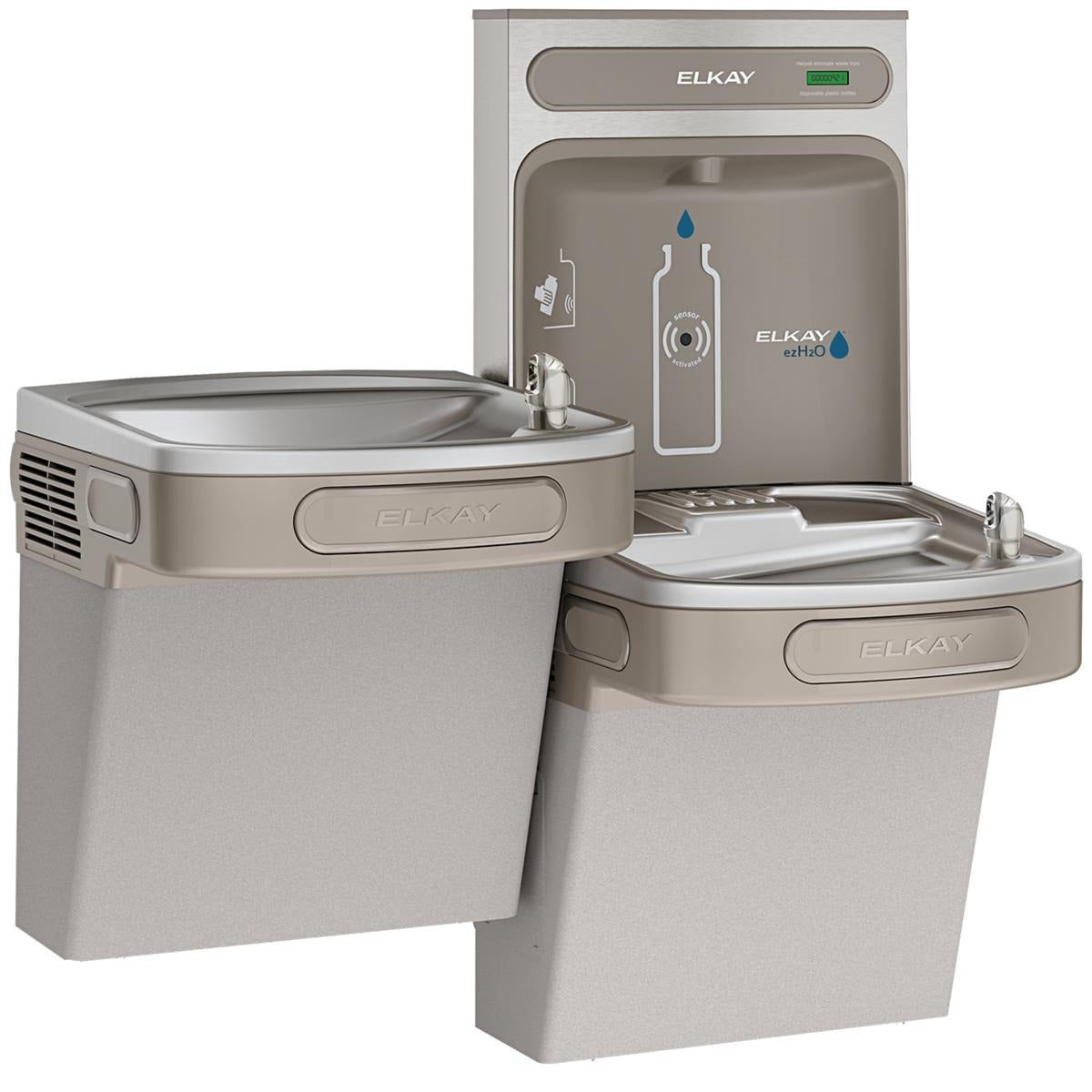

The BSC PREFERRED EZSTL8WSVRLK is a bi-level, vandal-resistant bottle filling station and water cooler designed for high-traffic indoor environments. It delivers 8 gallons per hour of chilled water through a hermetically sealed refrigeration system, maintaining a consistent supply for continuous use. The unit integrates two functional stations: one touchless bottle-filling port activated by an electronic sensor, and one standard push-bar bubbler for direct drinking. Antimicrobial silver ion protection on critical internal components inhibits mold and mildew growth. A laminar flow outlet minimizes splash during filling, and a real drain system prevents standing water accumulation. Licensed plumbers and facilities maintenance technicians typically handle installation.

This unit is built for permanent indoor installation in schools, office buildings, gyms, transit facilities, and other high-traffic public spaces where hygiene and durability are primary concerns. The bi-level configuration serves users of varying heights, and full ADA compliance ensures accessibility across user populations. The vandal-resistant construction includes chrome-plated integral hood guards that protect the unit from tampering and contamination. A Green Ticker display tracks the number of 20-ounce single-use plastic bottles displaced, supporting sustainability reporting for facilities programs. Installation can be configured in standard or reverse cooler orientation to accommodate site-specific plumbing layouts.

Key Features

• 8 gallons per hour chilling capacity via hermetically sealed refrigeration system
• Touchless electronic sensor activation for bottle-filling station
• Antimicrobial silver ion protection on critical components to inhibit mold and mildew
• Vandal-resistant design with chrome-plated integral hood guards
• Green Ticker display tracks 20-ounce plastic bottles kept out of waste stream
• ADA-compliant bi-level configuration with laminar flow and integrated drain system
• Supports standard and reverse cooler installation orientations

Compatibility

Designed for permanent indoor plumbing connection in commercial and institutional facilities requiring ADA-compliant, bi-level hydration stations in high-traffic areas.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and disconnect electrical power to the service area before beginning any work. The unit requires a dedicated water supply line and a drain connection; verify that the rough-in location accommodates both standard and drain plumbing before mounting. Do not operate the refrigeration system without water flow connected, as running the unit dry can damage internal components.
