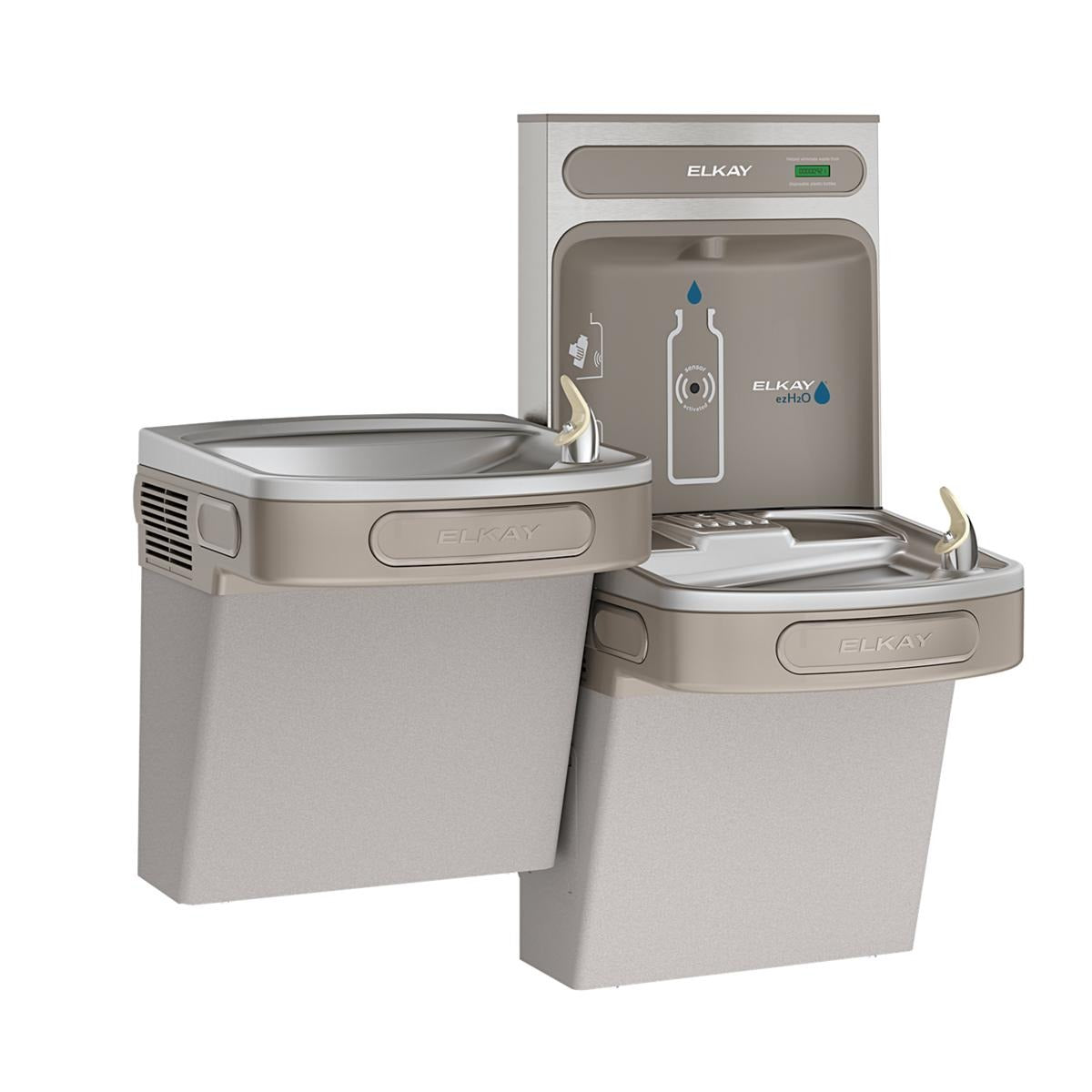

Bsc Preferred EZSTL8WSLK Bi-level Bottle Filling Station

Product Description

The BSC PREFERRED EZSTL8WSLK is a bi-level bottle filling station and ADA-compliant water cooler designed for indoor commercial and institutional environments. The unit delivers a chilling capacity of 8.0 gallons per hour and a sensor-activated bottle fill rate of 1.1 gallons per minute. It includes an electronic touchless bottle filler and a push-bar activated Flexi-Guard safety bubbler mounted at two heights to serve a wide range of users. Silver ion antimicrobial protection is applied to key plastic components to inhibit mold and mildew growth. A laminar flow design reduces splash during fills. Licensed plumbers or qualified facilities technicians typically handle installation.

This station is suited for high-traffic indoor locations including schools, gymnasiums, parks, and public buildings. The bi-level configuration accommodates both standing adults and users in wheelchairs, meeting ADA accessibility requirements. The light gray finish integrates into standard commercial interiors. The unit is non-filtered and refrigerated, drawing from a direct plumbing connection. A built-in Green Ticker display tracks the cumulative count of 20-ounce plastic bottles diverted from landfills, supporting sustainability reporting in institutional settings. A real drain system prevents standing water accumulation at the drain basin.

Key Features

• Electronic sensor-activated bottle filler with 1.1 gallon per minute fill rate
• Push-bar activated Flexi-Guard safety bubbler at ADA-compliant height
• 8.0 gallon per hour refrigerated chilling capacity
• Silver ion antimicrobial protection on key plastic components inhibits mold and mildew
• Laminar flow design minimizes splash and promotes clean fill
• Integrated Green Ticker tracks 20-ounce plastic bottles saved from landfills
• Real drain system eliminates standing water at the unit base

Compatibility

Designed as an OEM-style direct-plumb indoor water cooler and bottle filling station for institutional and commercial applications requiring ADA-compliant bi-level hydration access.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and disconnect electrical power to the circuit before beginning rough-in work. The unit requires a dedicated cold-water supply line and a proper floor drain or drain connection. Do not install in outdoor or unprotected locations, as this unit is rated for indoor use only.
