Bsc Preferred EZSDWSSK Ada Bottle Filling Station

Product Description

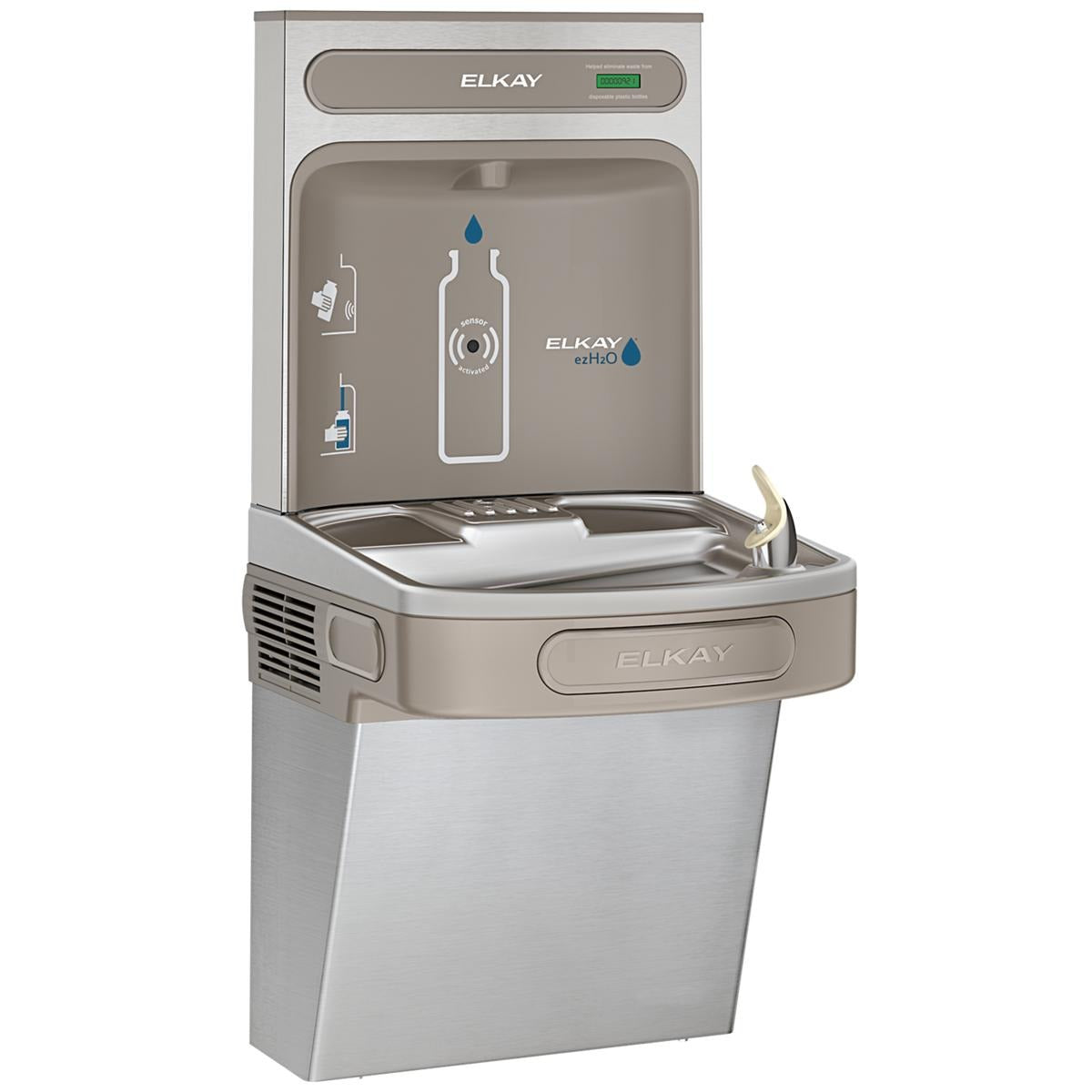

The BSC PREFERRED EZSDWSSK is a wall-mounted, non-refrigerated bottle filling station with an integrated single ADA-compliant drinking cooler, designed for permanent indoor installation in high-traffic commercial and institutional settings. The unit pairs a touchless sensor-activated bottle filler with a push-bar activated Flexi-Guard safety bubbler, delivering a laminar flow fill rate of 1.5 gallons per minute with minimal splash. Silver ion antimicrobial protection is built into key plastic components to inhibit mold and mildew growth. A real drain system eliminates standing water, reducing odor and maintenance concerns. Licensed plumbers and facilities maintenance technicians are the typical installers for this type of fixture.

The EZSDWSSK is suited for indoor environments including schools, office buildings, gyms, healthcare facilities, and other public spaces where hands-free hydration access and ADA compliance are required. The integrated Green Ticker display tracks the cumulative count of 20-ounce plastic bottles displaced, supporting sustainability programs. Operating at 115 volts, the unit is wired to a standard electrical circuit in addition to a standard potable water supply and drain connection, making it a dual-trade installation requiring both a licensed plumber and an electrician in most jurisdictions.

Key Features

• Touchless sensor-activated bottle filler with 1.5 gallons per minute laminar flow fill rate
• Push-bar activated Flexi-Guard safety bubbler for ADA-compliant drinking access
• Silver ion antimicrobial protection on key plastic components inhibits mold and mildew
• Real drain system eliminates standing water and reduces odor buildup
• Green Ticker tracks 20-ounce plastic bottles saved from landfill
• Non-refrigerated, wall-mounted design for permanent indoor installation

Compatibility

Designed as an OEM-style replacement or new-installation wall-mounted bottle filling station for indoor potable water systems requiring ADA-compliant access and 115-volt electrical service.

Installation Notes

Installation requires both a licensed plumber for potable water supply and drain connections and a licensed electrician for the 115-volt circuit connection in accordance with NEC requirements. Shut off the water supply and de-energize the circuit before beginning work. The unit is wall-mounted and must be secured to structural backing capable of supporting the fixture weight. Verify local plumbing and building codes for ADA mounting height requirements prior to rough-in.
