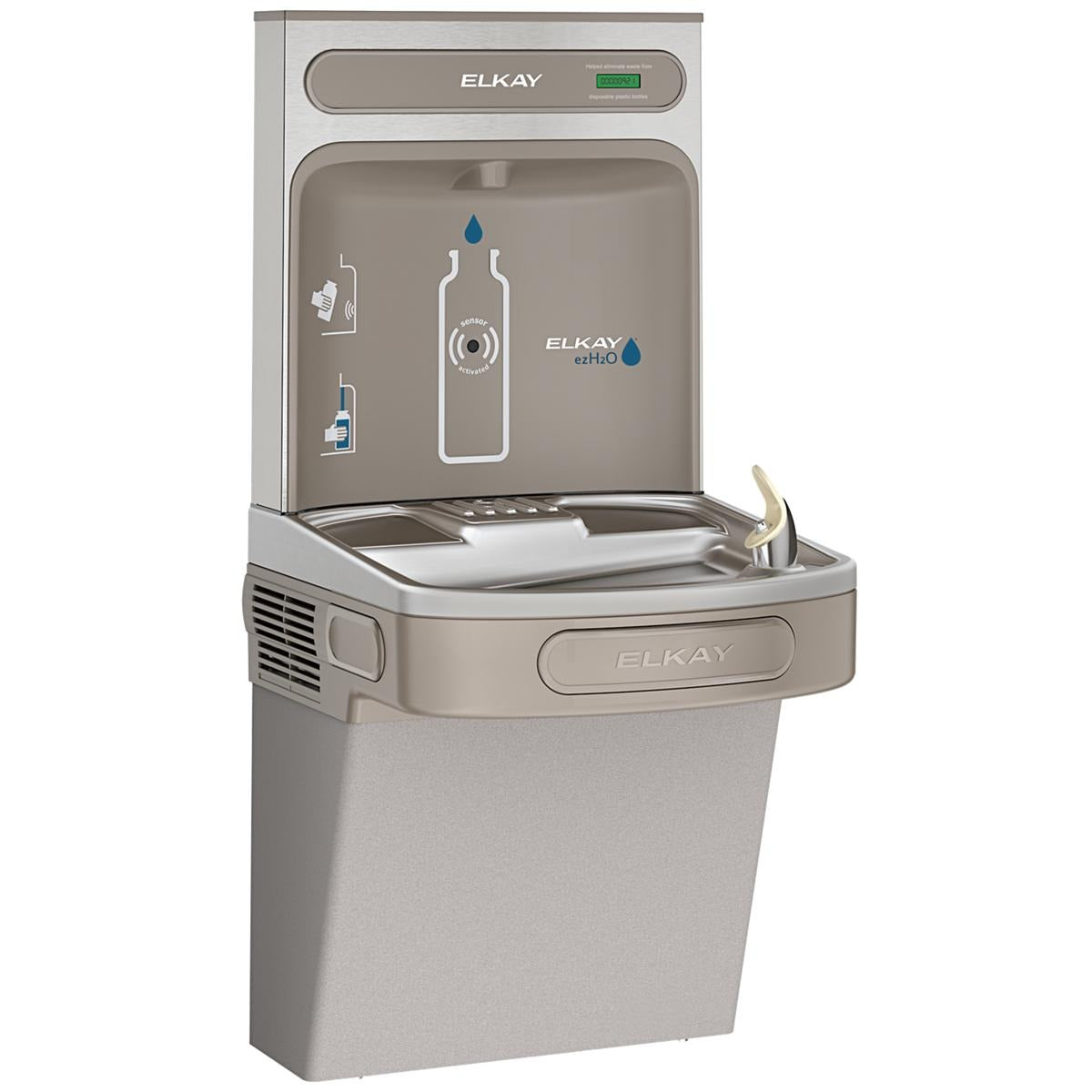

Bsc Preferred EZSDWSLK Bottle Filling Station Wall Mount

Product Description

The BSC PREFERRED EZSDWSLK is a non-refrigerated, wall-mounted bottle filling station designed for indoor use in high-traffic commercial and institutional facilities. It combines an ADA-compliant drinking fountain with an integrated bottle filler in a single unit finished in light gray. The electronic touchless sensor enables hands-free operation at a fill rate of 1.5 gallons per minute. Silver ion antimicrobial protection inhibits mold and mildew growth on plastic components, and the built-in Green Ticker displays the running count of 20-ounce plastic bottles diverted from waste. The unit operates at 115 volts, 60 Hz, drawing 15 watts, making it energy-efficient for permanent installation.

The EZSDWSLK is suited for schools, gyms, offices, and other public or semi-public indoor spaces where high fill volume and hygienic operation are priorities. Its wall-mount configuration keeps floor space clear and positions the filler at an ADA-compliant height. The laminar flow spout produces a smooth, splash-free stream that fits standard water bottles cleanly. The Real Drain system eliminates standing water in the basin, reducing bacterial growth potential between service intervals. A Flexi-Guard Safety Bubbler with a flexible antimicrobial mouthguard is included for the cooler side, reducing injury risk and cross-contamination.

Key Features

• Touchless electronic sensor activation for hands-free bottle filling
• 1.5 gallons per minute fill rate for fast, efficient refills
• Green Ticker tracks 20-ounce plastic bottle waste reduction in real time
• Silver ion antimicrobial protection on plastic components inhibits mold and mildew
• Laminar flow dispensing produces a smooth, splash-free stream
• Real Drain system eliminates standing water for a more hygienic basin
• NSF 372 certified for lead-reducing materials

Compatibility

Designed as a wall-mounted, single-station bottle filling and drinking fountain unit for permanent indoor installation in commercial and institutional plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply line and verify electrical power is de-energized at the circuit breaker before mounting or making connections. The unit requires a standard 115-volt, 60 Hz dedicated circuit and a potable water supply line with appropriate shutoff valve. Confirm wall blocking or backing is adequate to support the unit weight before final mounting.
