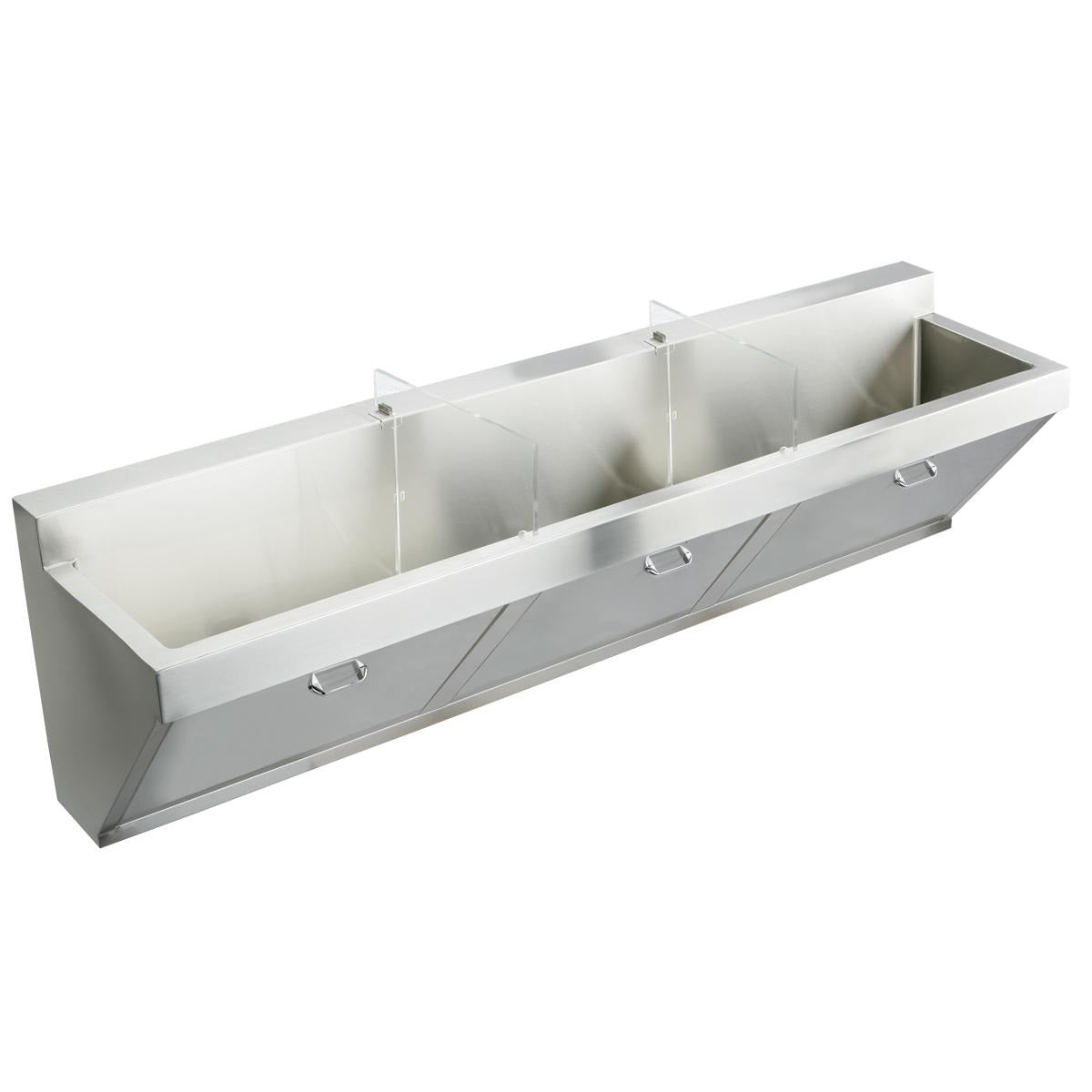

Bsc Preferred EWSF390260 Triple Station Scrub Sink

Product Description

The BSC PREFERRED EWSF390260 is a wall-hung triple station surgeon scrub sink built for surgical suites, procedure rooms, and other demanding medical environments. Fabricated from 16-gauge Type 304 stainless steel, it delivers corrosion resistance and long service life under frequent sanitization cycles. The overall footprint measures 90 inches in length, 23 inches in width, and 26 inches in height, housing three individual bowls each sized at 28 inches long, 16.25 inches wide, and 11 inches deep. Each bowl includes a 3.5-inch drain opening for efficient drainage. Sound-deadening material is applied to reduce vibration and noise during use. Licensed plumbers and facility maintenance trades handle installation in compliance with applicable plumbing codes.

This scrub sink is designed for high-hygiene institutional settings including hospitals, surgical centers, outpatient facilities, and medical education buildings. The wall-hung mounting style keeps the floor area clear for cleaning and infection-control compliance. Three independent bowls allow simultaneous use by multiple scrub personnel, supporting pre-operative workflow. The full enclosure conceals supply and drain plumbing, which supports both code compliance and a clean visual presentation in clinical spaces. Two removable clear acrylic partitions provide flexible bay separation and are removable for access or cleaning.

Key Features

• Three bowls, each 28 inches x 16.25 inches x 11 inches with 3.5-inch drain openings
• 16-gauge Type 304 stainless steel construction for corrosion resistance and durability
• Sound-deadening material minimizes vibration and noise during operation
• Coved corners throughout for simplified cleaning and reduced bacterial harborage points
• High full-length backsplash protects the wall surface from water splash
• Two removable clear acrylic partitions for flexible bay configuration
• Full enclosure conceals plumbing; polished finish on all exposed surfaces

Compatibility

Designed as a wall-hung OEM-style triple station scrub sink suited for surgical, medical, and institutional plumbing rough-in applications requiring a 90-inch three-bay configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable sections of the International Plumbing Code. Shut off the water supply and verify wall blocking or structural support is in place before mounting, as the unit weighs 210 pounds and requires adequate wall framing to carry the load. Confirm drain rough-in locations align with the bowl drain centers before final wall attachment. Do not overtighten drain fittings or supply connections beyond manufacturer specifications.
