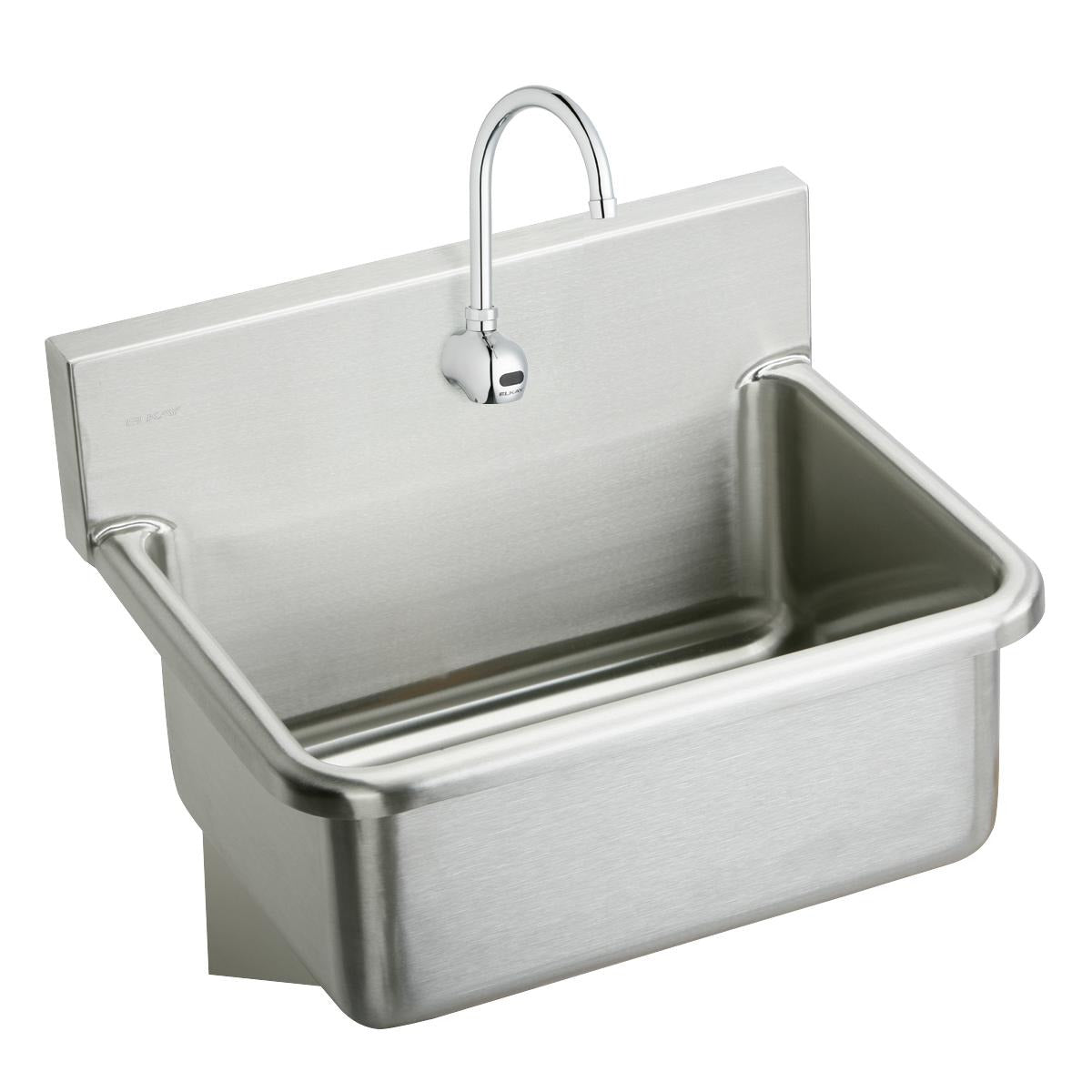

Bsc Preferred EWS2520SACMC Wall-mounted Hand Wash Sink Kit

Product Description

The BSC PREFERRED EWS2520SACMC is a wall-mounted hand wash sink kit built for commercial and residential installations where hygiene and durability are non-negotiable. The single-bowl sink is fabricated from 14-gauge Type 304 stainless steel and measures 25 inches x 19.5 inches x 10.5 inches with a rear center drain for efficient drainage. A 6-inch full-length backsplash protects the wall surface, and 1-3/4-inch radius coved corners simplify cleaning. Sound-deadening material is included to reduce noise during use. The kit ships complete with an LKB722C sensor faucet and an LK724 mechanical mixing valve, giving installers a ready-to-go handwashing station out of the box.

This sink kit is designed for high-traffic environments where touchless operation and reliable water temperature control matter. Typical applications include commercial kitchens, healthcare facilities, classrooms, office break rooms, restaurants, and park restrooms. The sensor faucet operates on AC power or battery, eliminating the need for hand contact at the faucet during operation. The LK724 mechanical mixing valve allows the installer to set a safe, consistent hot water output temperature at the point of use. The wall-hung configuration keeps the floor clear, which supports easier cleaning and ADA-accessible layout planning.

Key Features

• 14-gauge Type 304 stainless steel construction for corrosion resistance and long service life
• Single bowl measuring 25 inches x 19.5 inches x 10.5 inches with rear center drain
• 6-inch full-length backsplash protects walls from water splash
• 1-3/4-inch radius coved corners for fast, thorough sanitation cleaning
• Sound-deadening material reduces operational noise in occupied spaces
• Includes LKB722C hands-free sensor faucet with AC or battery power options
• Includes LK724 mechanical mixing valve for adjustable, consistent water temperature
• NSF-compliant and lead-free construction

Compatibility

Designed as a complete OEM-kit replacement or new-installation solution for wall-mounted hand wash sink applications in commercial and residential plumbing systems. Sensor faucet component LKB722C and mixing valve component LK724 are included as specified in the kit configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and verify zero pressure at the supply lines before beginning any connections. The wall-mount configuration requires proper blocking or a carrier system rated for the combined weight of the sink and kit components. Connect the sensor faucet power supply only after all plumbing connections are complete and verified leak-free.
