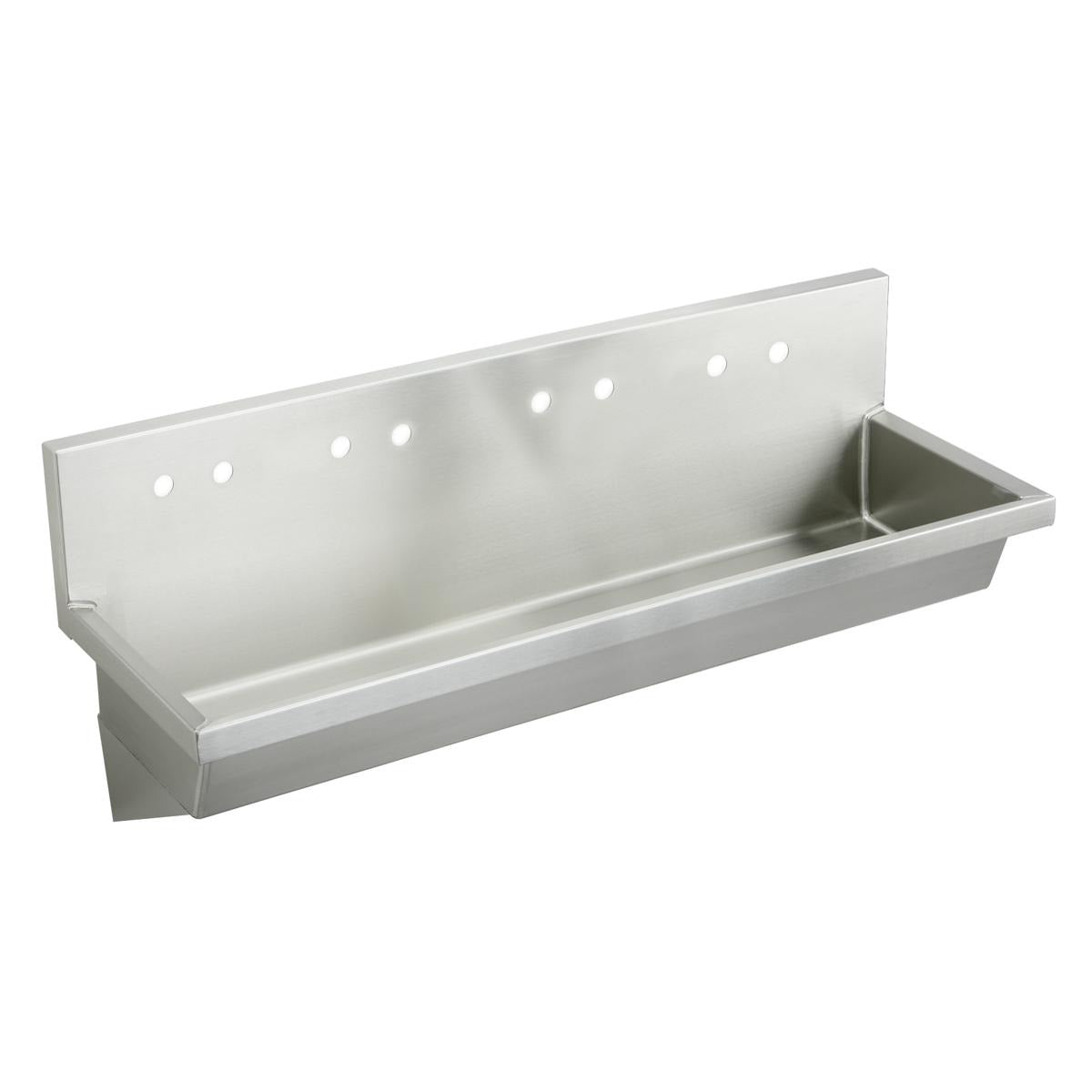

Bsc Preferred EWMA96208 Wall-hung Hand Wash Sink

Product Description

The BSC PREFERRED EWMA96208 is a wall-hung, multiple-station commercial hand wash sink constructed from 14-gauge Type 304 stainless steel. The single bowl measures 93 inches in length, 16.5 inches in width, and 8 inches in depth, providing ample capacity for simultaneous hand washing in high-traffic environments. A 10-inch full-length backsplash controls splash, and 1/4-inch coved corners simplify cleaning. Exposed surfaces are blended to a uniform lustrous finish. The sink ships complete with wall hangers and stainless steel support brackets. Licensed plumbers and commercial contractors install this fixture in facilities where sanitation compliance and workflow efficiency are primary requirements.

The EWMA96208 is suited for classrooms, healthcare facilities, parks and recreation areas, high-traffic commercial kitchens, and office buildings. The 8-faucet-hole configuration accommodates a range of faucet and metering valve setups, giving installers flexibility in final trim selection. The center-positioned 3.5-inch drain opening supports standard commercial drain fittings. Inward-sloping top channel rims direct water toward the basin. ADA-compliant depth configurations are available for installations subject to accessibility requirements. The wall-hung design keeps the floor area clear, supporting housekeeping and inspection routines in regulated commercial environments.

Key Features

• 14-gauge Type 304 stainless steel construction for corrosion resistance and long service life
• Single bowl measuring 93 inches long, 16.5 inches wide, and 8 inches deep for multi-user capacity
• 10-inch full-length backsplash with inward-sloping top channel rims to contain splash
• 1/4-inch coved corners throughout for easy wipe-down and sanitation compliance
• 8 faucet holes for flexible faucet and valve configuration
• Center 3.5-inch drain opening for straightforward drain rough-in
• Includes wall hangers and stainless steel support brackets for secure wall mounting

Compatibility

Designed for wall-hung installation in commercial and institutional settings including healthcare facilities, classrooms, parks, recreation areas, and high-traffic public spaces. Compatible with standard 3.5-inch commercial drain fittings. Accepts up to 8 deck-mount faucets or metering valves. ADA-compliant depth configurations are available for accessible installations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and verify wall-blocking or structural backing is in place prior to mounting, as the sink weighs 132 pounds and requires solid structural support. Attach the included wall hangers and stainless steel support brackets to wall framing before setting the sink. Confirm drain rough-in location and faucet hole count match the planned trim package before final connection.
