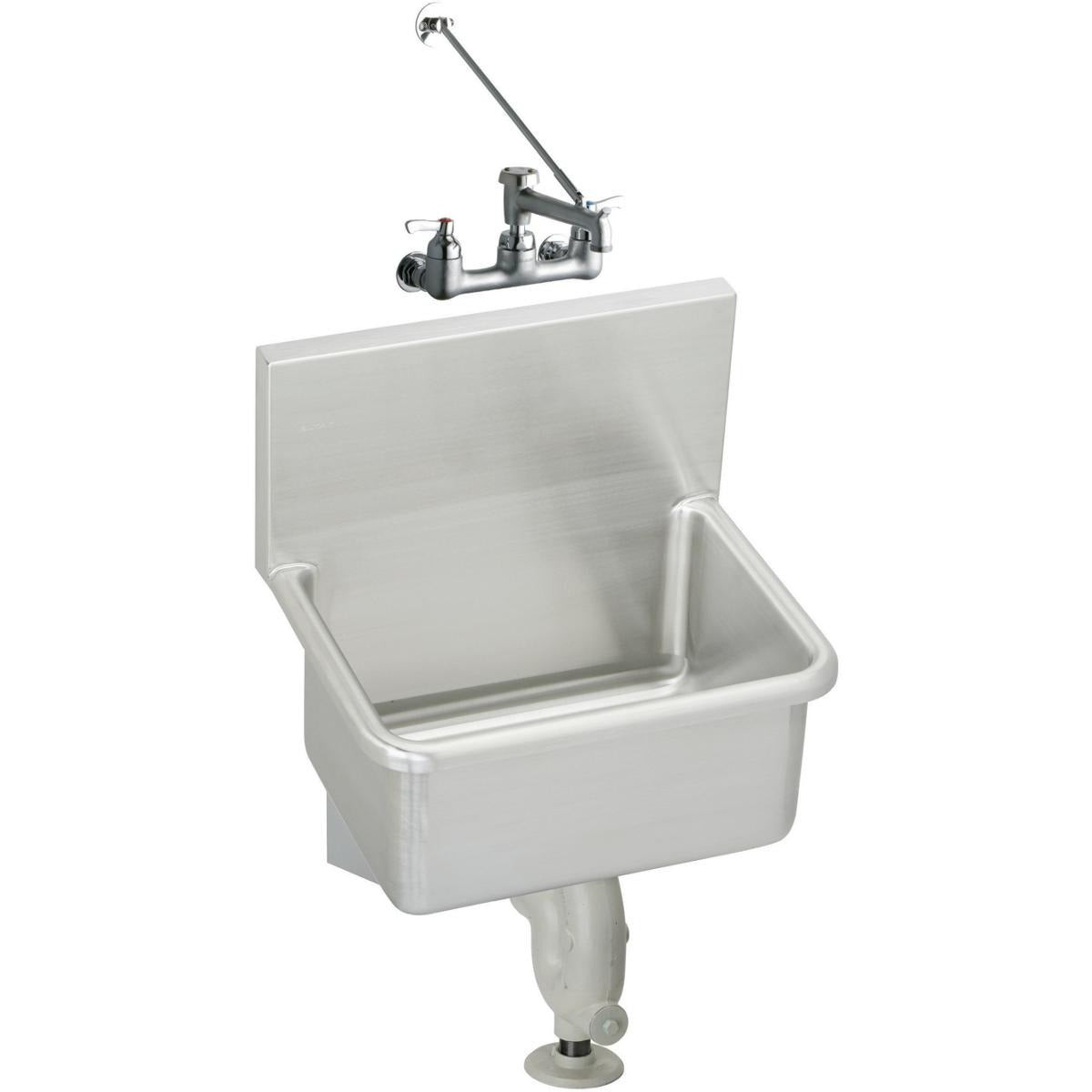

Bsc Preferred ESSW2319C Wall-hung Service Sink Kit

Product Description

The BSC PREFERRED ESSW2319C is a wall-hung service sink kit constructed from 14-gauge Type 304 stainless steel and supplied as a complete, installation-ready assembly. The sink body measures 23 inches in length, 18.5 inches in width, and 12 inches in height, with a single-bowl interior measuring 20 inches long, 15 inches wide, and 12 inches deep. A full-length 12-inch-high backsplash shields walls from water damage during heavy-use cleaning operations. Included accessories are the LKB940C faucet and the LK173 cast iron P-trap, reducing the need for separate procurement on commercial and institutional plumbing installations. The exposed surfaces carry a satin finish. Overall unit weight is 80 pounds.

This service sink kit is suited for janitor closets, commercial kitchens, healthcare facilities, classrooms, and light industrial washdown areas where a durable wall-hung basin is required. The wall-hung configuration keeps the floor clear, simplifying cleaning around the unit. The kit meets ADA depth requirements, making it appropriate for accessible restroom and janitorial service spaces. Installers working in commercial kitchens or healthcare facilities will find the single-bowl layout and center-drain positioning practical for high-volume mop and bucket operations.

Key Features

• 14-gauge Type 304 stainless steel construction for corrosion resistance in wet commercial environments
• Single bowl interior: 20 inches long, 15 inches wide, 12 inches deep
• Full-length 12-inch-high backsplash to protect wall surfaces from splash and overflow
• 1.5-inch rolled rims and 1.75-inch coved corners for structural rigidity and ease of cleaning
• 3.5-inch centered drain opening for optimized drainage flow
• Includes LKB940C faucet and LK173 cast iron P-trap for a complete ready-to-install kit
• Satin finish on all exposed surfaces

Compatibility

Designed for wall-hung installation in commercial and institutional plumbing applications. Supplied with the LKB940C faucet and LK173 cast iron P-trap as integral kit components. Meets ADA depth requirements for accessible service sink installations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and verify wall blocking or support framing is adequate to carry the 80-pound sink assembly before mounting. Confirm drain rough-in dimensions align with the 3.5-inch centered drain opening prior to setting the sink. Do not overtighten the cast iron P-trap connections; follow the P-trap manufacturer instructions for proper joint assembly.
