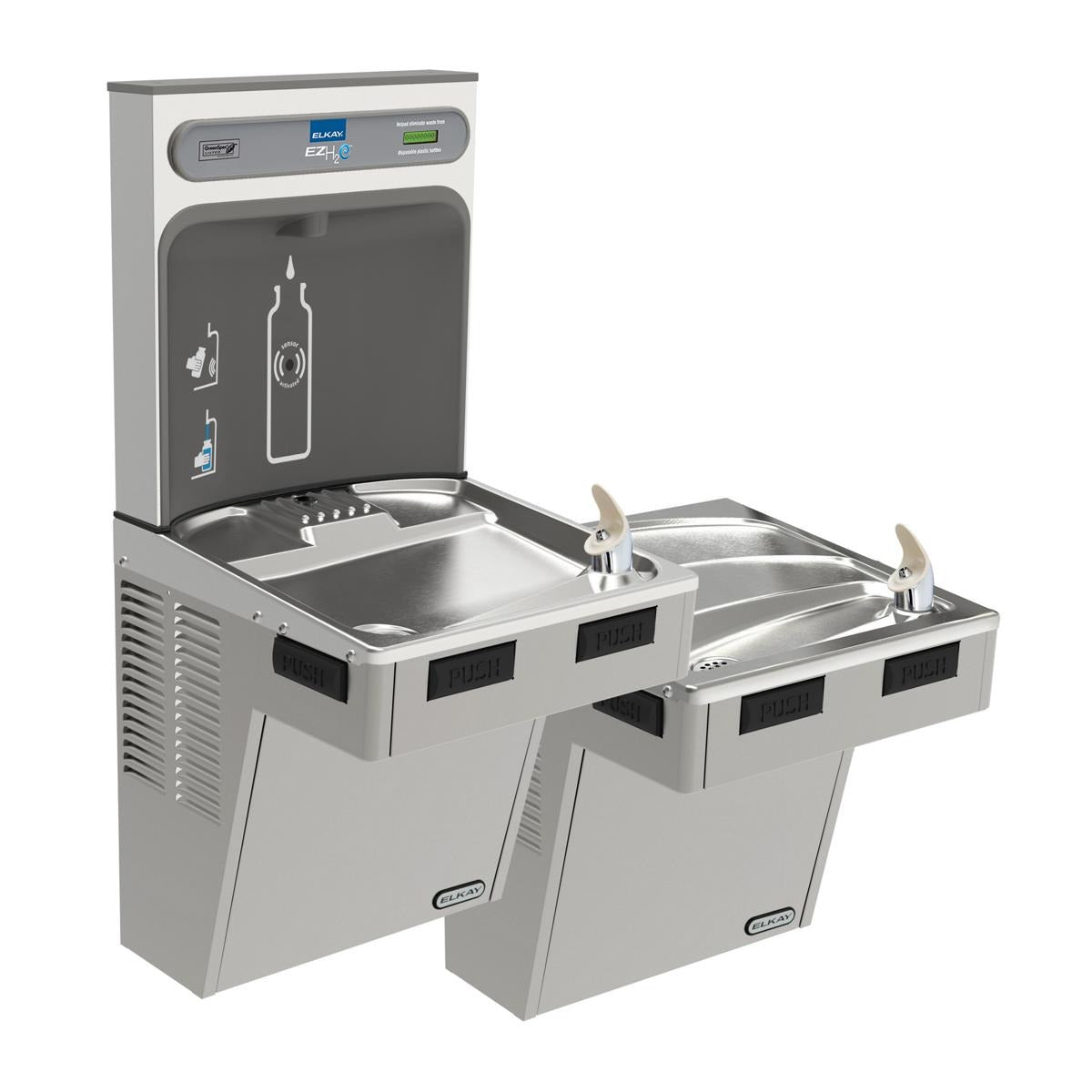

Bsc Preferred EMABFTLDDWSLK Bottle Filling Station

Product Description

The BSC PREFERRED EMABFTLDDWSLK is a bi-level, wall-mounted bottle filling station designed for indoor use in commercial and institutional facilities. The unit combines a non-refrigerated ADA-compliant cooler with a touchless sensor-activated bottle filler that delivers water at 1.5 gallons per minute and shuts off automatically after 20 seconds to limit waste. A Laminar Flow design produces a clean, low-splash stream suited for reusable bottles of all sizes. Licensed plumbers perform the rough-in and final connection on these units, and the wall-mount configuration requires a solid backing or blocking in the wall framing.

This station is intended for high-traffic indoor environments including schools, gymnasiums, office buildings, and public facilities. The bi-level configuration serves both standing adults and wheelchair users, meeting ADA accessibility requirements. The Real Drain system eliminates standing water in the basin, reducing maintenance frequency and improving hygiene. The Green Ticker display tracks the cumulative number of single-use plastic bottles displaced, which is a common requirement for LEED-focused building programs.

Key Features

• Touchless sensor activation with automatic 20-second shutoff for water conservation
• 1.5 gallons per minute fill rate supports high-traffic usage
• Bi-level ADA-compliant design serves standing and wheelchair-height users
• Flexi-Guard Safety Bubbler with silver ion antimicrobial mouth guard inhibits mold and mildew growth
• Laminar Flow stream reduces splash and contamination risk during fills
• Real Drain basin keeps the fixture free of standing water
• Green Ticker display shows cumulative plastic bottles diverted from waste

Compatibility

Designed as an OEM-style wall-mounted bottle filling station for indoor plumbing rough-in in commercial, institutional, and public-facility applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply to the feed line before beginning any connection work. The wall-mount bracket requires attachment to structural framing or rated blocking capable of supporting the unit weight. Verify drain rough-in location and supply line sizing match the fixture requirements before final mounting.
