Bsc Preferred EMABF8WSSK Bottle Filling Station Ada

Product Description

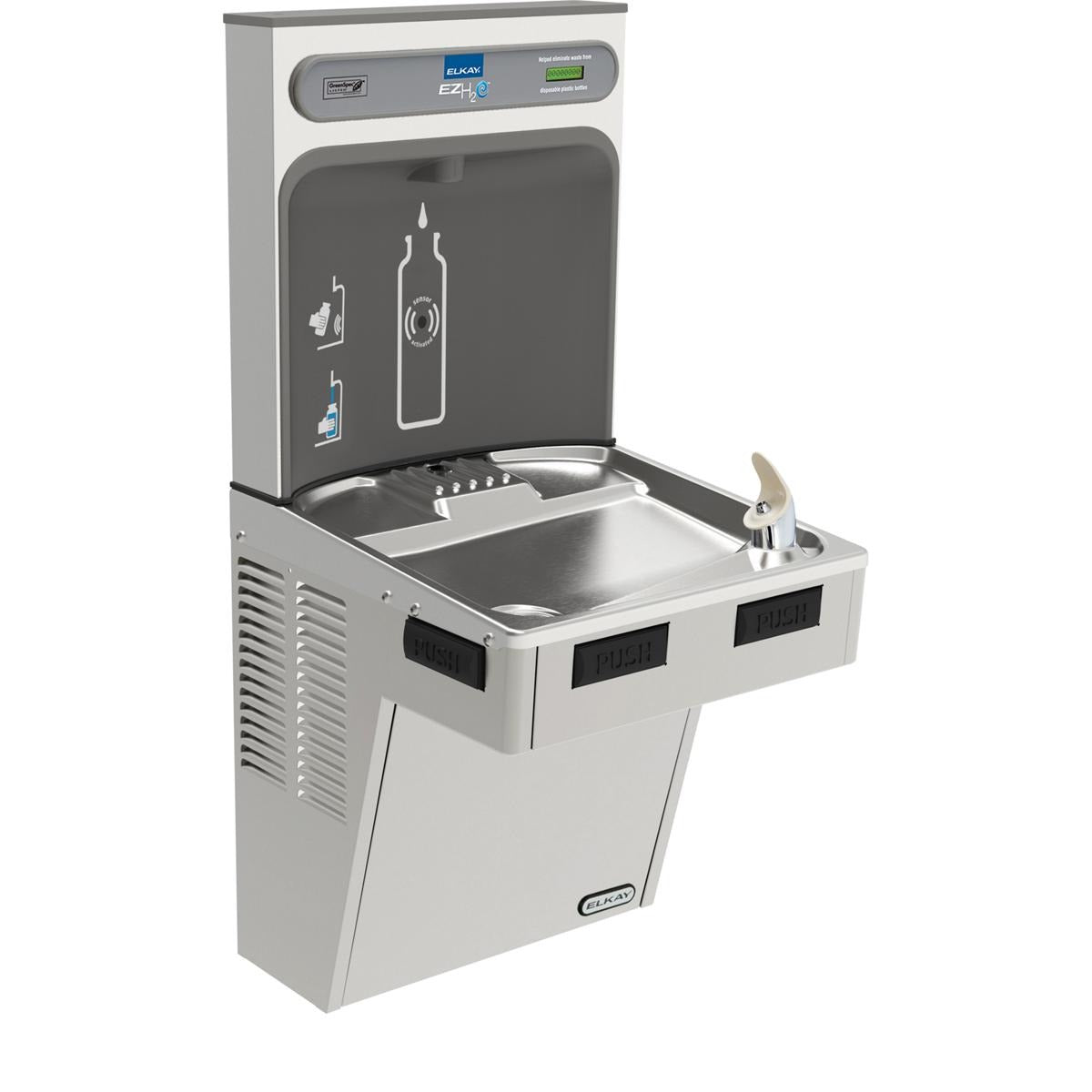

The BSC PREFERRED EMABF8WSSK is a wall-mounted indoor bottle filling station and ADA-compliant water cooler designed for high-traffic commercial and institutional settings. It combines a touchless sensor-activated bottle filler with a mechanically activated Flexi-Guard safety bubbler. The unit chills water at a rate of 8.0 gallons per hour and delivers flow at 1.1 gallons per minute. Constructed from stainless steel with antimicrobial properties that inhibit mold and mildew growth, the station supports a sanitary, low-maintenance installation. A built-in Green Ticker tracks the number of 20 oz. plastic bottles displaced by refills, providing a visible sustainability metric. Operating at 115 volts and 60 Hz with a rated wattage of 370, the unit is suitable for standard commercial electrical circuits.

The EMABF8WSSK is intended for indoor permanent installation in schools, offices, gyms, parks, and similar high-use facilities. The touchless bottle filler activates via sensor, eliminating contact at the fill point. The Flexi-Guard bubbler includes a flexible mouth guard for safe, traditional drinking access. A real-drain system removes standing water from the basin, reducing contamination risk between uses. The mechanically activated bubbler continues to function during sensor or electronic service disruptions, maintaining basic functionality. ADA compliance makes the unit accessible to all users, including those using wheelchairs or mobility aids.

Key Features

• Touchless sensor-activated bottle filler for sanitary, contact-free filling
• Chilling capacity of 8.0 gallons per hour with a 1.1 gallon-per-minute flow rate
• Mechanically activated Flexi-Guard safety bubbler with flexible mouth guard
• Stainless steel construction with antimicrobial properties inhibiting mold and mildew
• Green Ticker displays cumulative 20 oz. plastic bottles displaced from waste
• Real-drain system eliminates standing water for improved basin hygiene
• ADA-compliant design for accessible installation in public and commercial spaces

Compatibility

Designed for indoor wall-mounted installation in commercial and institutional plumbing systems supplied with standard cold-water service and a 115-volt electrical circuit.

Installation Notes

Installation is performed by a licensed plumber and, where required, a licensed electrician for the dedicated 115-volt circuit connection. Shut off the water supply and de-energize the circuit before making connections. The unit is wall-mounted and must be secured to structural backing capable of supporting the unit weight. Verify local plumbing code requirements, including drain line slope and backflow prevention, before completing the installation.
