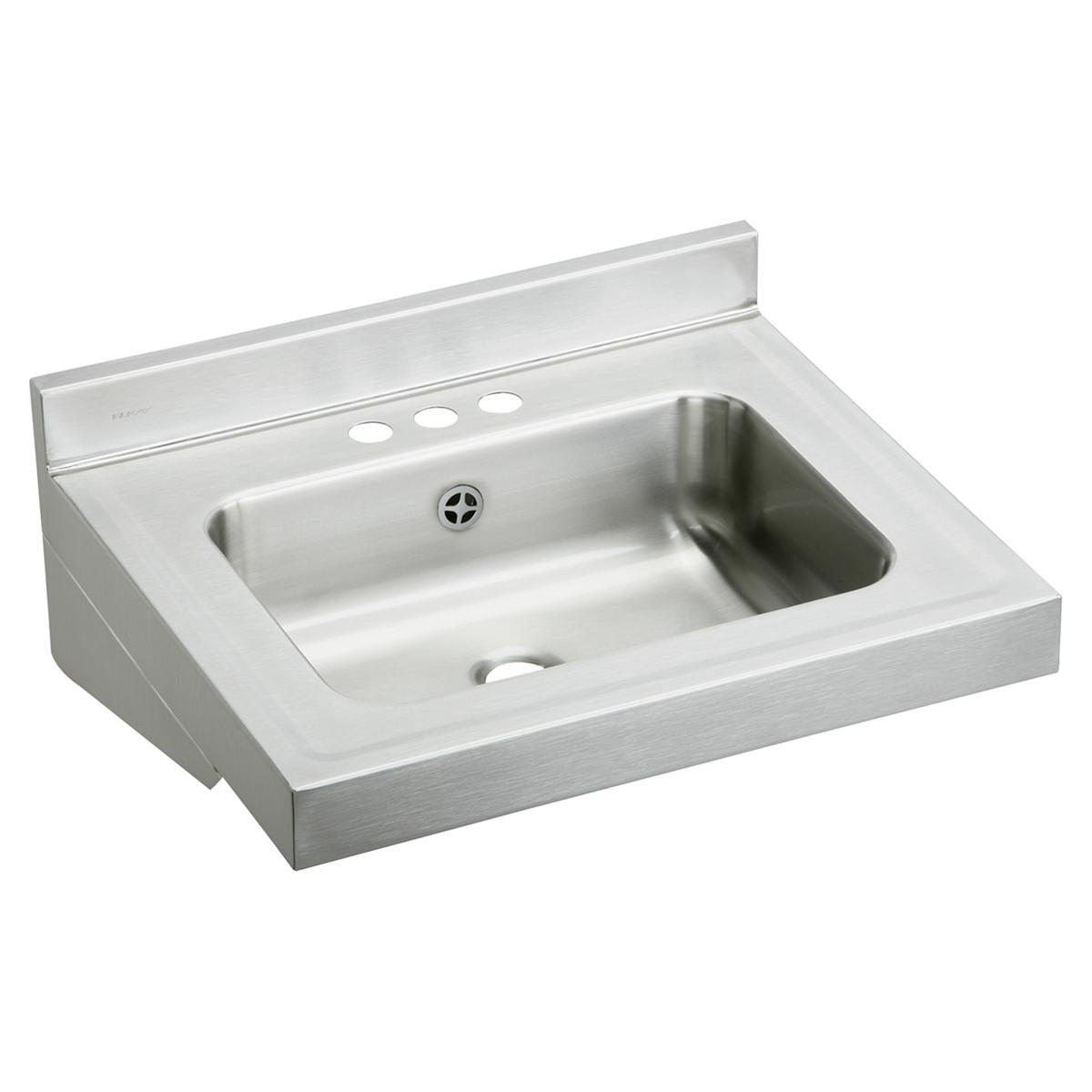

Bsc Preferred ELVWO2219CS3 Wall-hung Lavatory Sink

Product Description

The BSC PREFERRED ELVWO2219CS3 is a wall-hung lavatory sink constructed from 18-gauge Type 304 stainless steel with a satin finish. It measures 22 inches by 19 inches by 5.5 inches overall, with a single bowl measuring 16 inches in length and 11.5 inches in width. The rear center drain placement maximizes usable bowl space, and a 2-inch backsplash is integrated into the design. The faucet hole configuration is CS3, accommodating multiple faucet types. Integral stainless steel support brackets and a wall hanger are included. This sink is designed for licensed plumbers working in residential, commercial, or public-facility settings where ADA-compliant fixtures are required.

The ELVWO2219CS3 is suited for wall-hung installations in both residential and commercial bathrooms, restrooms, offices, and public facilities. The compact overall footprint keeps the floor clear, which is especially useful in tight or accessible-design layouts. ADA compliance is achieved when the sink is properly installed per applicable accessibility standards. The CS3 faucet configuration supports a range of standard faucet types, giving installers flexibility in fixture selection.

Key Features

• 18-gauge Type 304 stainless steel construction with satin finish for corrosion resistance and durability
• Single bowl measuring 16 inches by 11.5 inches with rear center drain placement for maximum usable bottom space
• Integrated 2-inch backsplash and apron front for a clean, functional profile
• Sound-deadening pads on the bowl bottom to reduce vibration and noise during use
• CS3 faucet hole configuration accommodates multiple faucet types
• Includes overflow assembly, integral stainless steel support brackets, and wall hanger for a complete installation
• ADA compliant when properly installed

Compatibility

Designed as a wall-hung lavatory replacement or new-installation sink for residential and commercial plumbing systems requiring ADA-compliant, stainless steel fixtures with a CS3 faucet configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable local plumbing code and ADA accessibility requirements. Shut off the water supply and verify that wall blocking or framing can support the fixture weight before mounting. Use the included integral support brackets and wall hanger as directed; do not mount to drywall alone without adequate backing. Connect the drain and overflow assembly before completing final wall attachment and supply line hookup.
