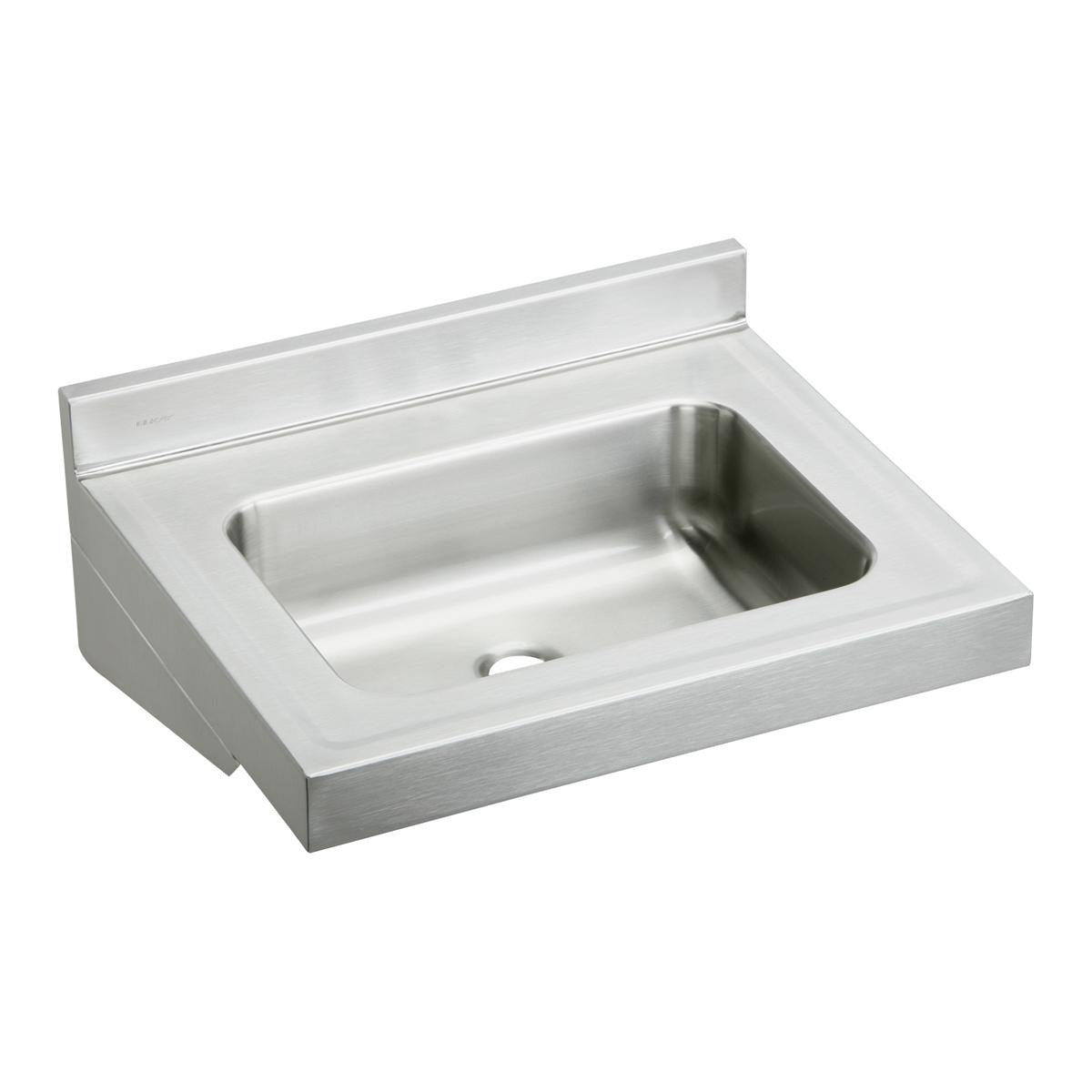

Bsc Preferred ELV22190 Wall-hung Lavatory Sink 22x19

Product Description

The BSC PREFERRED ELV22190 is a wall-hung lavatory sink constructed from 18-gauge Type 304 stainless steel with a satin finish. Measuring 22 inches x 19 inches x 5.5 inches overall, it features a single bowl with a 16-inch x 11.5-inch basin and rear center drain placement. A sound-deadening undercoating reduces vibration and noise during use. Integral stainless steel support brackets and a wall hanger are included for mounting. The backsplash stands 2 inches high, and coved corners simplify routine cleaning. Licensed plumbers and facility maintenance technicians are the primary installers for this fixture type.

The ELV22190 suits commercial and residential applications where wall-hung mounting is required to meet ADA clearance requirements when properly installed. Typical installations include offices, healthcare facilities, restrooms in public buildings, and residential bathrooms where floor clearance and accessibility are priorities. The apron front and sides provide a clean, finished appearance on three exposed faces. The rear center drain placement maximizes usable basin floor area. A 1.625-inch drain opening accommodates standard lavatory drain assemblies.

Key Features

• 18-gauge Type 304 stainless steel construction for corrosion resistance in high-traffic environments
• Satin finish resists fingerprints and integrates with commercial fixture packages
• Sound-deadening material reduces vibration and water noise at the basin
• Rear center drain placement maximizes usable basin floor space
• Coved corners and 2-inch backsplash simplify cleaning and contain splash
• Integral stainless steel support brackets and wall hanger included for mounting
• ADA compliant when properly installed per applicable accessibility codes

Compatibility

Designed as an OEM-style wall-hung lavatory sink for commercial and residential plumbing rough-ins requiring a 22-inch x 19-inch fixture footprint with a rear center drain and standard 1.625-inch drain opening.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code and applicable local amendments. Shut off the water supply and verify wall blocking or carrier framing is adequate to support the fixture and rated load before mounting. ADA-compliant rim height must be confirmed at rough-in; consult ADA Standards for Accessible Design Section 606 for required clearances. Do not over-torque drain fittings or bracket fasteners beyond hardware manufacturer specifications.
