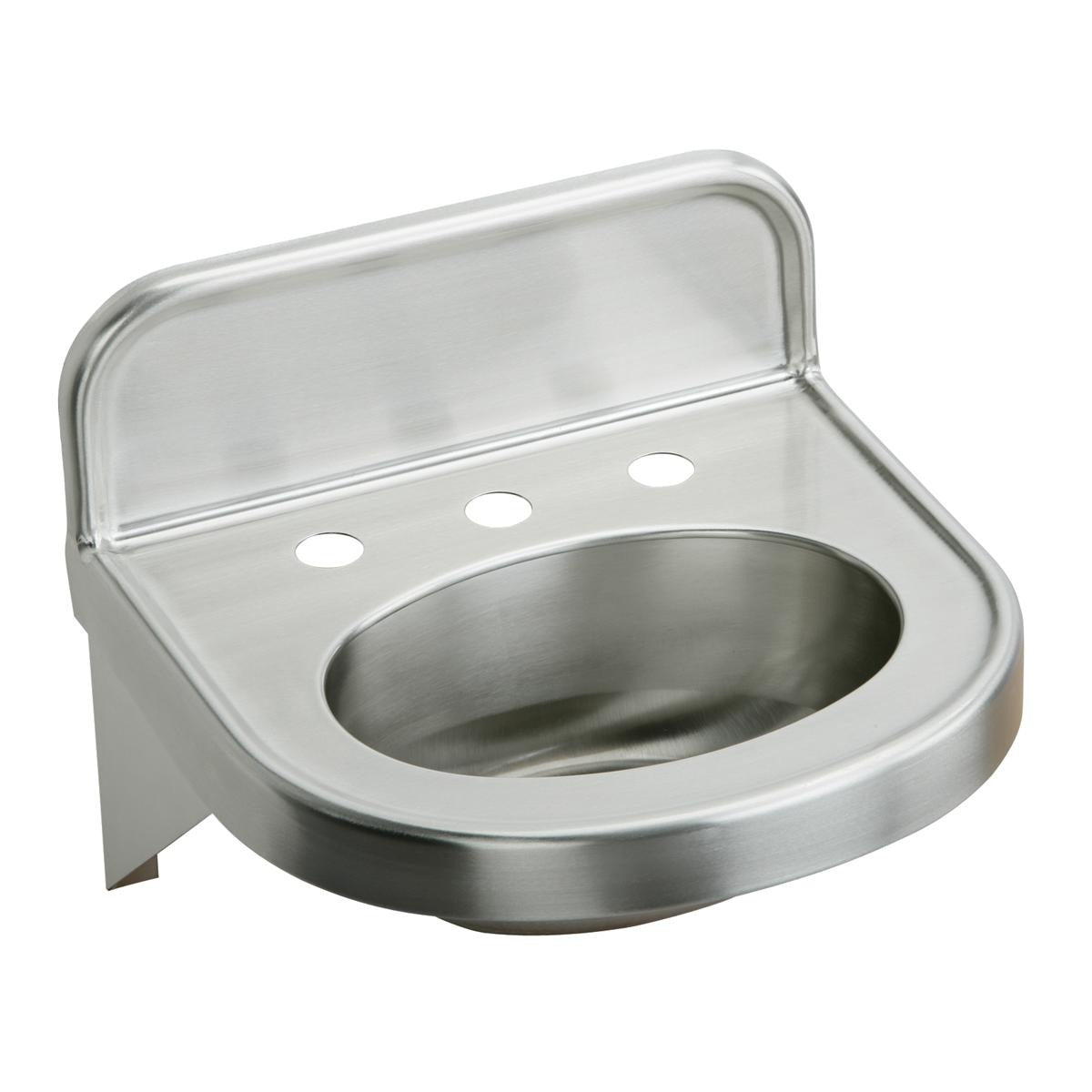

Bsc Preferred ELV18173 Wall Hung Lavatory Sink Ada

Product Description

The BSC PREFERRED ELV18173 is a wall-hung lavatory sink built from 18-gauge Type 304 stainless steel. It is designed for commercial restrooms, healthcare facilities, and any application that requires ADA-compliant sink installations. The single bowl measures 13.625 inches in length, 10.125 inches in width, and 5.8125 inches in depth, providing adequate capacity for everyday hand-washing use. Exposed surfaces receive a hand-blended satin finish for a uniform, low-maintenance appearance. Sound-deadening material is applied to reduce basin noise during use. Stainless steel wall support brackets are included for mounting.

This sink is suited for commercial and institutional environments including healthcare facilities, public restrooms, and office buildings where ADA compliance is required. The three-hole faucet configuration accommodates a wide range of centerset or widespread faucet styles. The 5.5-inch backsplash provides wall protection, and the anti-splash rim helps contain water within the basin. The overall sink dimensions are 18 inches in length by 17.0625 inches in width by 5.5625 inches in height, fitting standard wall-hung rough-in locations. Installation with included wall support brackets enables ADA-compliant mounting when positioned at the correct height per applicable code.

Key Features

• 18-gauge Type 304 stainless steel construction for corrosion resistance in high-use environments
• Single bowl with 13.625 x 10.125 x 5.8125 inch interior dimensions
• Hand-blended satin finish on all exposed surfaces
• Anti-splash rim and 5.5-inch backsplash for containment and wall protection
• Three-hole faucet configuration for broad faucet compatibility
• 1.5-inch rear center drain opening for efficient water drainage
• Includes stainless steel wall support brackets; ADA compliant when installed at correct height

Compatibility

Designed as an OEM-style wall-hung lavatory sink for commercial and institutional plumbing installations requiring a three-hole faucet configuration and a 1.5-inch rear center drain. ADA compliant when installed in accordance with applicable accessibility standards.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and ADA accessibility requirements. Shut off the water supply completely before beginning rough-in work. Secure the included stainless steel wall support brackets to structural wall blocking or framing rated to support the sink load. Verify drain rough-in location and faucet supply line positions match the sink layout before final mounting.
