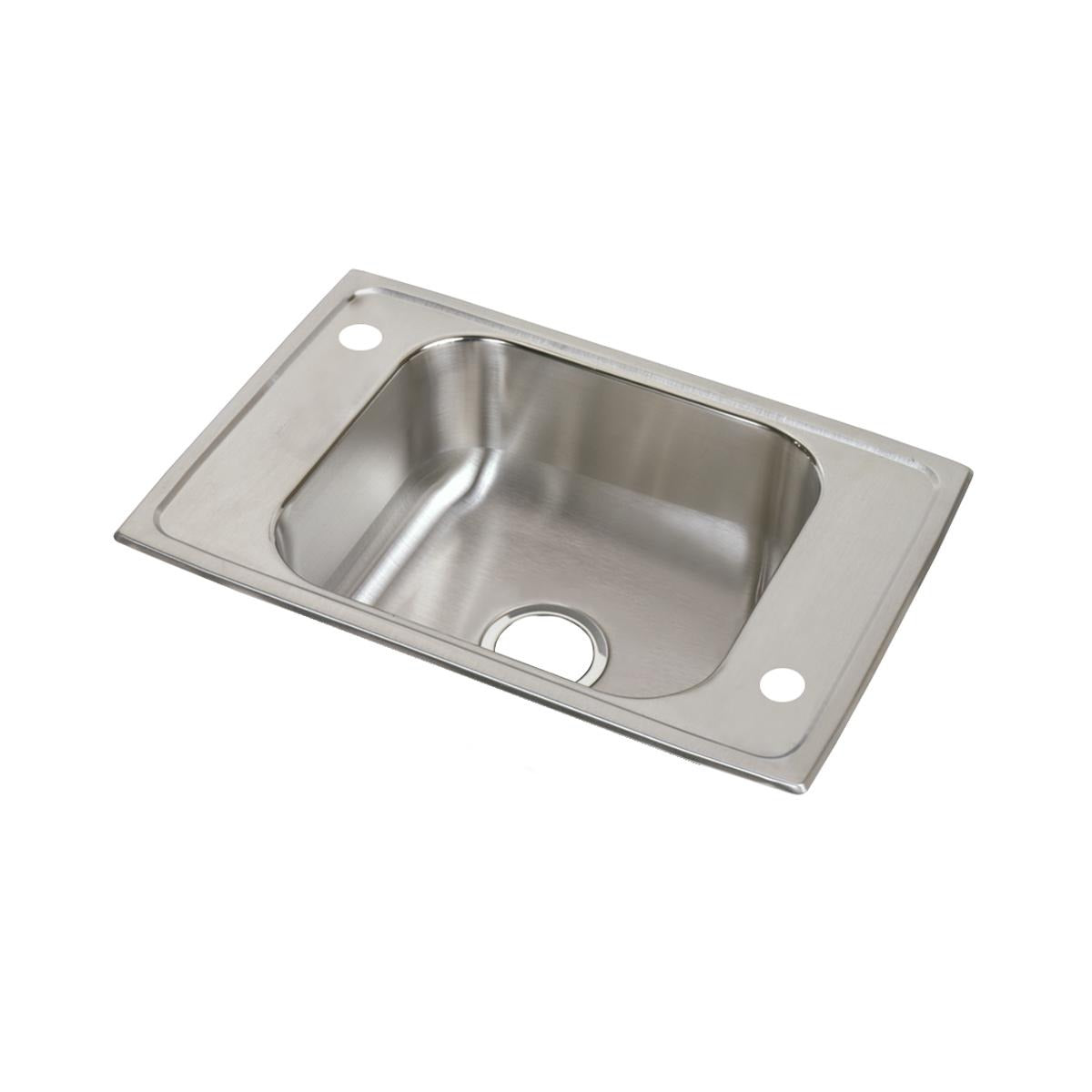

Bsc Preferred CDKAD2517654 Drop-in Sink Ada 25x17 Stainless

Product Description

The BSC PREFERRED CDKAD2517654 is a single-bowl drop-in sink constructed from 20-gauge Type 304 stainless steel, designed for installation in classrooms, offices, healthcare facilities, and other public spaces. The overall sink dimensions are 25 inches by 17 inches by 6.5 inches, with a bowl interior measuring 15.75 inches in length and 14 inches in width. Sound-deadening pads bonded to the underside reduce vibration and noise during use. The center drain opening measures 3.5 inches and accommodates standard garbage disposals. This sink is ADA compliant and carries a made-in-USA designation from BSC PREFERRED, a stainless steel manufacturer with roots going back to 1920. Licensed plumbers and facility maintenance professionals handle typical installation.

The CDKAD2517654 is suited for drop-in countertop installations in commercial and institutional environments where durability, accessibility, and ease of maintenance are priorities. Four pre-drilled faucet holes are included along the deck, supporting a range of standard faucet configurations. The mounting clips are positioned within the U-channel, which simplifies securing the sink to the countertop substrate. A minimum cabinet width of 30 inches is recommended. The required countertop cutout measures 24.375 inches by 16.375 inches. Typical applications include school classrooms, public restrooms, break rooms, medical office washrooms, and similar facilities.

Key Features

• 20-gauge Type 304 stainless steel construction for corrosion resistance and long service life
• ADA compliant design meets accessibility requirements for public and institutional installations
• Sound-deadening pads minimize vibration and noise during operation
• Center drain opening at 3.5 inches accommodates standard garbage disposals
• Four pre-drilled deck faucet holes support standard faucet configurations
• Mounting clips located within the U-channel simplify drop-in installation
• Made in USA by BSC PREFERRED

Compatibility

Designed for drop-in countertop installation requiring a cutout of 24.375 inches by 16.375 inches and a minimum cabinet width of 30 inches. Compatible with standard 3.5-inch drain assemblies and garbage disposal units. Suitable for countertop materials standard to commercial and institutional construction.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable IPC requirements. Shut off the water supply and verify the countertop cutout dimensions before setting the sink. Apply a continuous bead of plumber's putty or silicone sealant around the cutout perimeter prior to dropping the sink into position, then secure using the U-channel mounting clips from below. Do not overtighten clips on fragile countertop materials such as laminate or solid surface without proper backing support.
