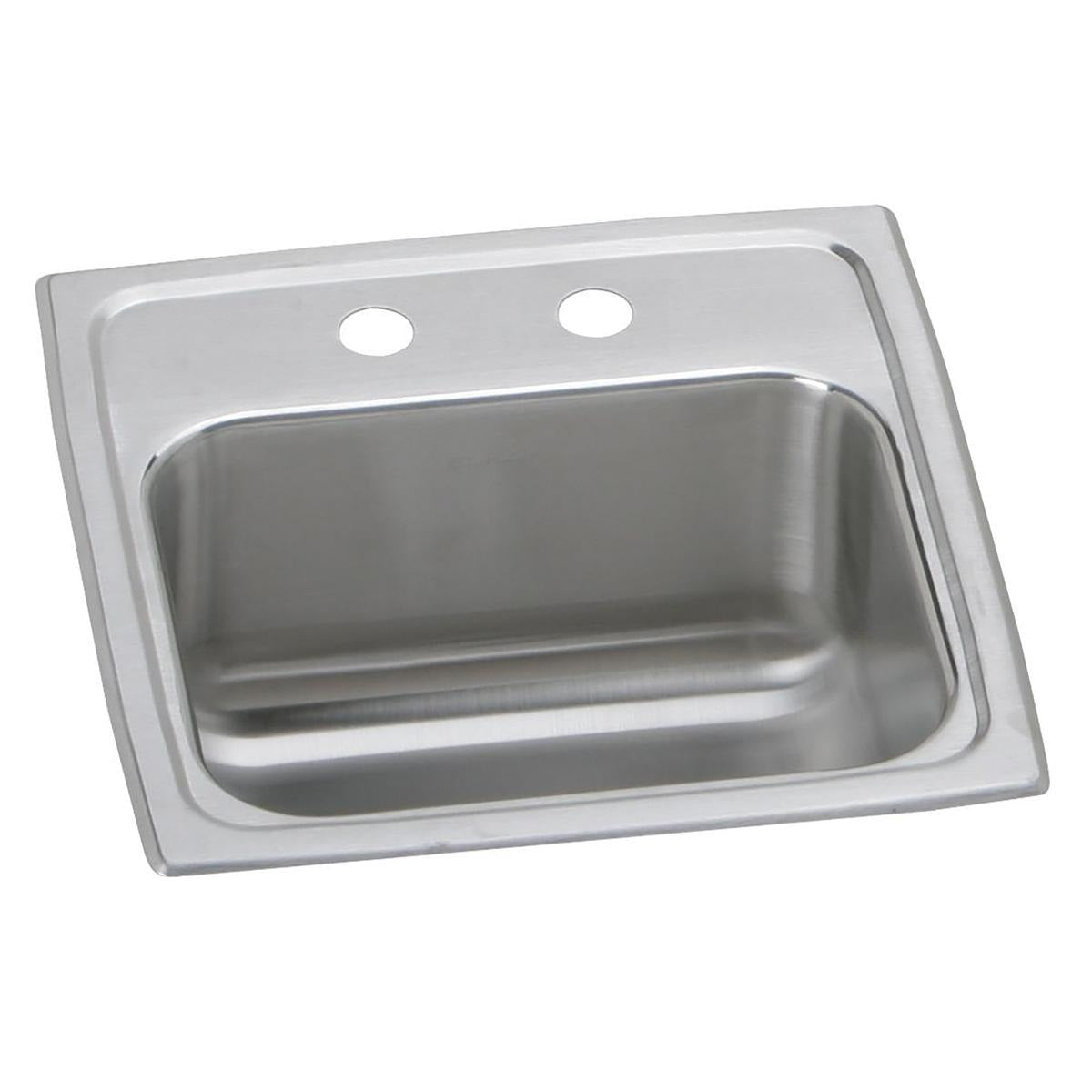

Bsc Preferred BCR152 Drop-in Bar Sink Ada Compliant

Product Description

The BSC PREFERRED BCR152 is a stainless steel drop-in bar sink built for bar stations, prep areas, and kitchen installations where durability and accessibility matter. Constructed from 20-gauge Type 304 stainless steel, the sink delivers a corrosion-resistant, easy-to-clean surface suited for continuous commercial or residential use. The single rectangular bowl measures 12 inches in length by 10 inches in width with a 6.125-inch depth, providing adequate capacity for glass rinsing and ingredient prep. Sound-deadening pads bonded to the underside of the bowl reduce vibration and noise during use. Licensed plumbers and qualified contractors handle installation in accordance with applicable IPC requirements.

The BCR152 is designed for bar tops, kitchen countertops, and prep-area installations in both residential and light commercial settings. The drop-in configuration with U-channel mounting simplifies countertop integration. Two faucet holes provide flexibility for faucet selection and configuration. The center drain location supports efficient water flow in standard drain setups. A minimum cabinet size of 18 inches is required, and the countertop cut-out dimension is 14.375 inches by 14.375 inches. The overall sink dimensions are 15 inches by 15 inches by 6.125 inches. This sink is ADA compliant when properly installed, broadening its suitability across accessible-design projects. Manufactured in the USA.

Key Features

• 20-gauge Type 304 stainless steel construction for corrosion resistance and long service life
• Drop-in installation with U-channel mounting for straightforward countertop integration
• Single rectangular bowl: 12 inches x 10 inches x 6.125 inches depth
• Center drain placement for efficient water drainage
• Sound-deadening pads on bowl underside to reduce noise and vibration
• ADA compliant when properly installed
• Two faucet holes for flexible faucet configuration

Compatibility

Designed as a drop-in replacement or new-installation bar sink for countertops with a minimum cabinet size of 18 inches, requiring a cut-out of 14.375 inches by 14.375 inches.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply at the isolation valves before beginning any work. The drop-in design seats into the countertop cut-out and is secured via U-channel mounting clips — confirm clip torque and sealant bead continuity per the manufacturer instruction sheet included with the unit. ADA compliance depends on correct mounting height and knee-clearance configuration; verify local accessibility requirements before finalizing countertop height.
