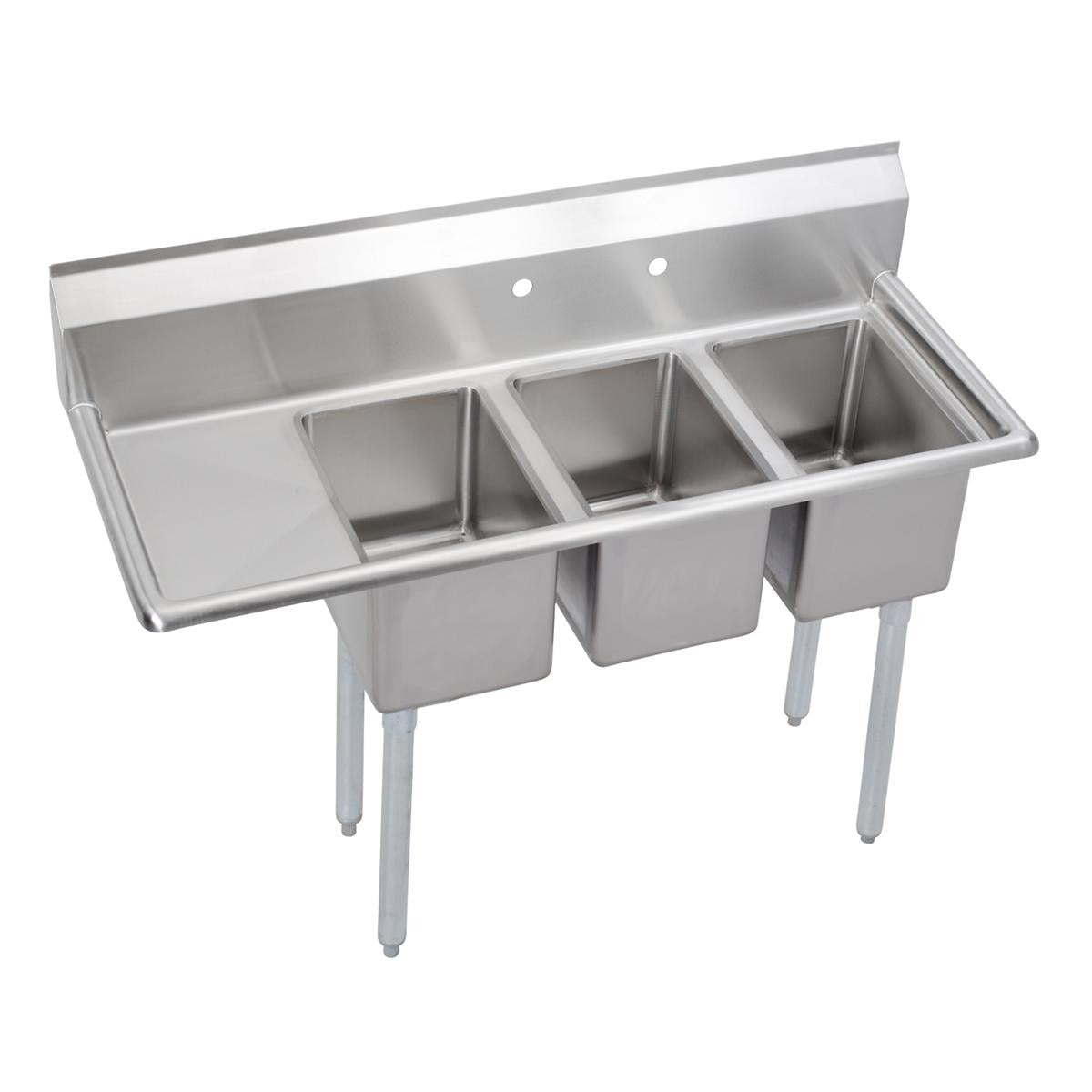

Bsc Preferred 3C10X14-L-12X Three Compartment Sink

Product Description

The BSC PREFERRED 3C10X14-L-12X is a three-compartment stainless steel sink built for commercial food service environments. Constructed from 16-gauge Type 300 series stainless steel, it provides the durability required for high-volume washing, rinsing, and sanitizing operations. The unit measures 48.5 inches long by 19.81 inches wide by 43.75 inches tall and features three bowls sized at 10 inches by 14 inches each, with bowl depths of 10 inches and 12 inches respectively. A 12-inch left drainboard extends the usable work surface for drying or staging. Stainless steel legs and adjustable bullet feet support the frame and compensate for uneven flooring. This sink is installed by licensed plumbers in commercial kitchen and food prep settings.

This sink is designed for commercial kitchen applications including restaurants, institutional kitchens, schools, healthcare facilities, and food preparation areas. The three-compartment layout supports a standard wash, rinse, and sanitize workflow as required by most health department codes. The 12-inch left drainboard provides an adjacent staging surface, and the 10-inch backsplash with tile ledge creates a clean fit against a wall. The sink requires a single splash mount faucet with two faucet holes — faucet is not included. The 3.5-inch center drain on each bowl facilitates efficient drainage. This unit is also available in ADA-compliant bowl depths for facilities with accessibility requirements.

Key Features

• 16-gauge Type 300 series stainless steel construction for commercial durability
• Three bowls at 10 inches by 14 inches with 10-inch and 12-inch depths for versatile washing tasks
• 12-inch left drainboard maximizes adjacent work surface area
• 3.5-inch center drain per bowl for efficient water removal
• 10-inch backsplash with tile ledge for clean wall installation
• Adjustable bullet feet and stainless steel legs accommodate uneven floors
• Configured for two faucet holes with single splash mount faucet (not included)

Compatibility

Designed as an OEM-style commercial three-compartment sink suitable for standard commercial plumbing rough-in configurations in food service, institutional, and industrial kitchen installations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable health department regulations. Shut off the water supply before connecting supply lines, and verify drain rough-in locations prior to setting the sink in final position. The faucet is not included and must be sourced separately to match the two-hole splash mount configuration. Confirm that the floor can support the weight of the unit when loaded, and use the adjustable bullet feet to level the sink before securing drain connections.
