Bsc Preferred 14-3C18X24-2-18X 3 Compartment Sink

Product Description

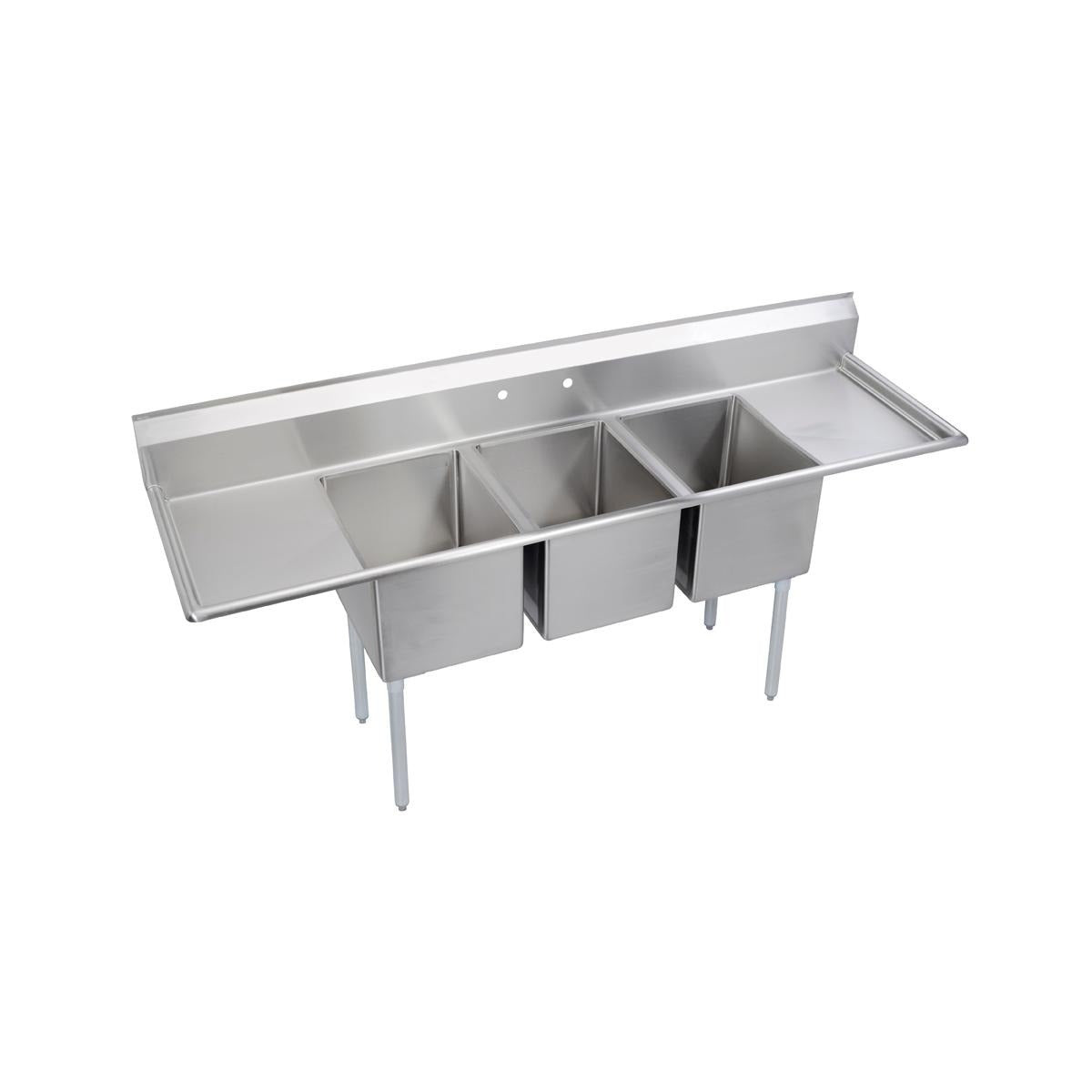

The BSC PREFERRED 14-3C18X24-2-18X is a three-compartment stainless steel sink built for high-volume commercial foodservice environments. Fabricated from 16-gauge type 304 series stainless steel, it measures 94 inches long by 29.81 inches wide by 44.75 inches tall overall. Each of the three bowls measures 18 inches wide by 24 inches front-to-back and 14 inches deep, giving ample capacity for washing, rinsing, and sanitizing. Left and right drainboards, each 18 inches wide, extend the usable work surface on both sides. A 9-inch backsplash with integral tile ledge keeps the wall dry and simplifies installation against tile or block surfaces. Plumbers and commercial kitchen installers typically specify this unit for restaurants, cafeterias, and institutional food prep facilities.

This sink is suited for commercial and institutional applications including restaurants, healthcare facilities, school cafeterias, recreational facilities, and food prep operations. The three-bowl configuration supports standard NSF wash-rinse-sanitize workflow requirements. Two faucet holes spaced 8 inches on center allow direct installation of a splash-mounted faucet, sold separately. Stainless steel legs with adjustable bullet feet are included, enabling the unit to be leveled on uneven floors. The overall footprint of 94 inches by 29.81 inches fits standard back-of-house installation corridors and meets ADA depth accessibility standards.

Key Features

• 16-gauge stainless steel construction for corrosion resistance and long service life in wet commercial environments
• Three bowls, each 18 inches wide by 24 inches deep by 14 inches deep, supporting full NSF wash-rinse-sanitize workflow
• 18-inch left and right drainboards extend usable prep and drainage surface on both sides
• 9-inch backsplash with tile ledge simplifies installation against finished wall surfaces
• Coved interior corners reduce soil accumulation and simplify daily cleaning
• Two faucet holes, 8 inches on center, for splash-mounted faucet installation
• Adjustable stainless steel bullet feet accommodate minor floor level variation

Compatibility

Designed as an OEM-style replacement or new-installation three-compartment sink for commercial kitchen, foodservice, healthcare, and institutional plumbing systems requiring a 94-inch three-bay unit with integral drainboards.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable health department regulations. Shut off water supply lines before connecting drain assemblies or faucet hardware. Faucets, drain baskets, and p-traps are not included and must be sourced separately to complete the rough-in. Verify floor load capacity before setting the unit, as the assembled weight can exceed 214 pounds when fully loaded.
