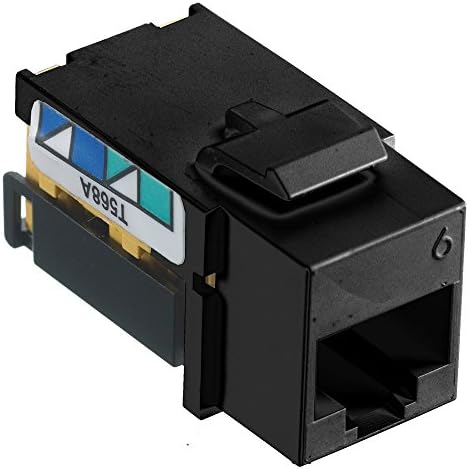

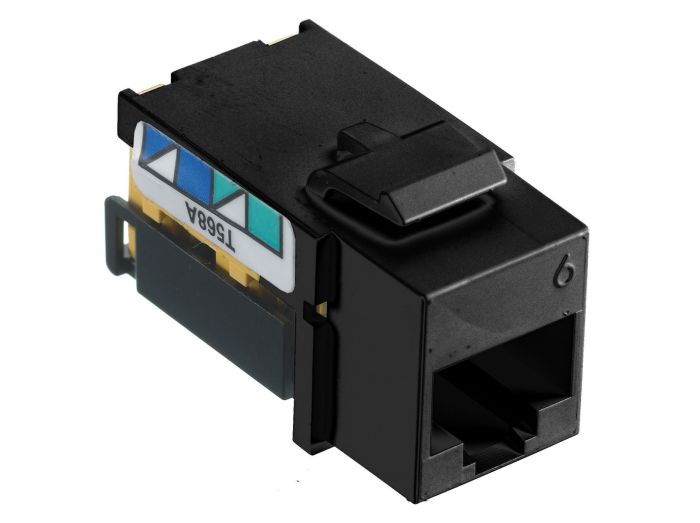

Bryant NSJ6BK netSELECT™ Series Category 6 Jack

Product Description

The BRYANT NSJ6BK netSELECT™ Series Category 6 modular jack meets all TIA channel parameters and supports applications up to 5GBASE-T. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination. It provides for a wide range of applications ranging from high performance data demands.

• Easy To Terminate Angled Wiring Towers
• Exceeds TIA Category 6 Standards
• Quick-Lace Termination

Product Highlights

The NSJ6BK netSELECT™ Series Category 6 modular jack supports applications up to 5GBASE-T.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: NSJ6BK

Technical Specifications

• Application: Up to 5GBASE-T, 802.3bt POE
• Catalog Number: NSJ6BK
• Construction Material - Main: Thermoplastic
• Contact: IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
• Contact Point Material: Beryllium Copper with Gold Over Plating
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Modular Jack
• Material - Housing: High-impact thermoplastic (UL 94V-0)
• Mounting Type: Snap-fit
• Operating Cycles: 750+ Plug
• Performance: TIA Cat 6 Component
• Series: netSELECT Series
• Specifications: Housing - High impact thermoplastic (UL 94 V-0) IDC Contact - Phosphor bronze with 100 micro-inch tin over nickel under plating Nose Contact - Beryllium copper with precious metal plating with nickel under-plating
• Style: RJ-45 Jack
• Sub Brand: netSELECT
• Temperature Rating: Max Continuous- 75° C, Minimum- -40° C Without Impact
• Type: Modular Jack
• Connectivity: RJ45 Jack to IDC Punch Down
• Contact Resistance: Per TIA
• Insertion Loss: Per TIA
• Withstand Voltage: 1,000 Vac @ 60 Hz
• Industry Standard(s): ANSI/TIA/EIA-568 Category 6 UL 1863 - Communications-Circuit Accessory IEC60512-99-002 POE Disconnection Endruance UL 2043 - Suitable for Air-Handling Spaces RoHS Compliant
• Standards - RoHS Compliance Status: CM
• Family Series: Bryant Electric Jacks
• Approvals: CSA, UL
• MPN: NSJ6BK
• Brand: BRYANT
• Connector Type: Ethernet
• Model Number: NSJ6BK
• Mfr Part Number: NSJ6BK
• Built-In Media: Jack
• Item Type Name: Jack, Data Jack, Cat-6 Jack
