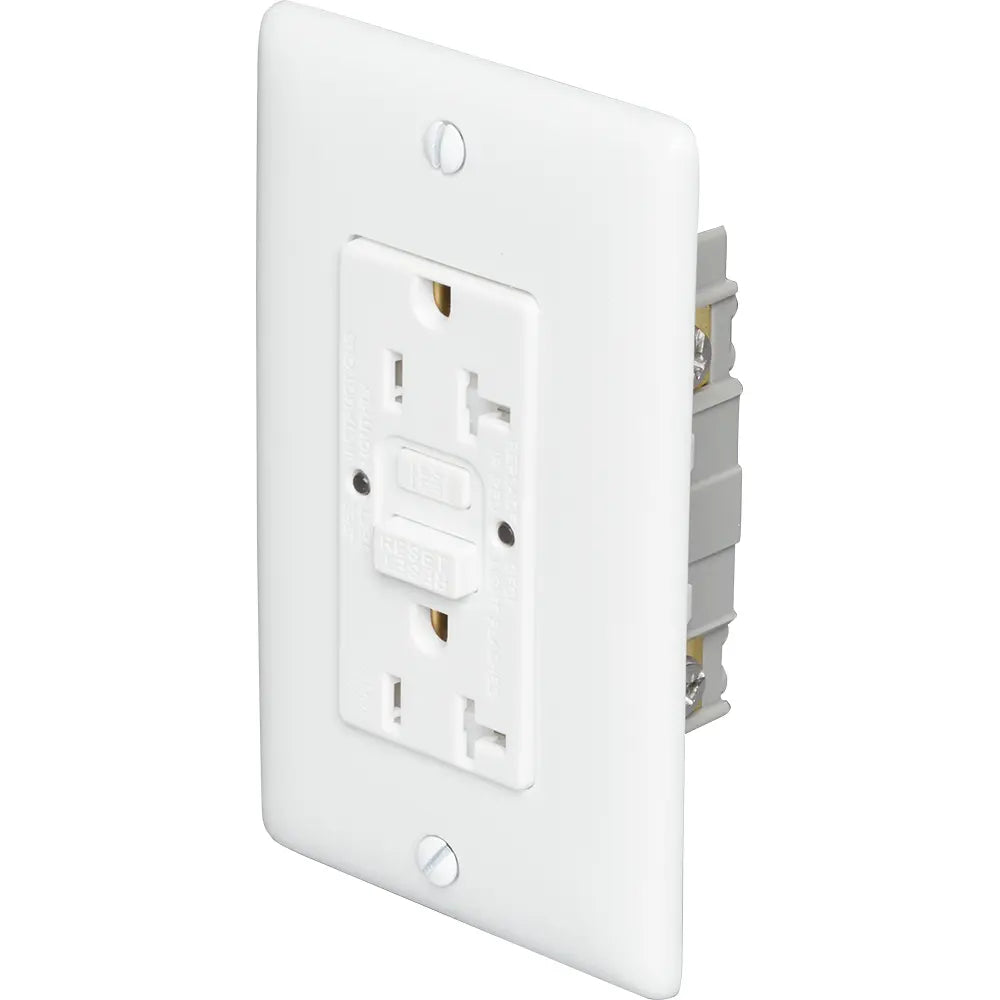

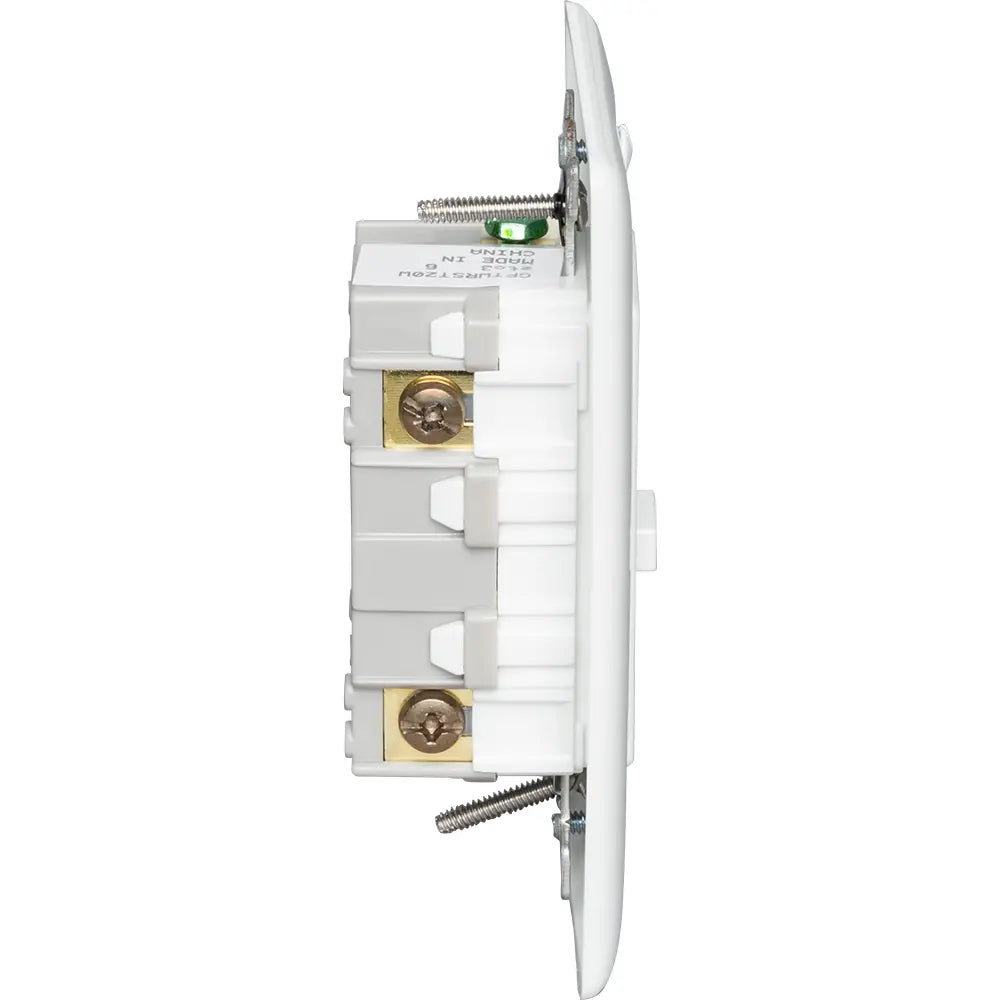

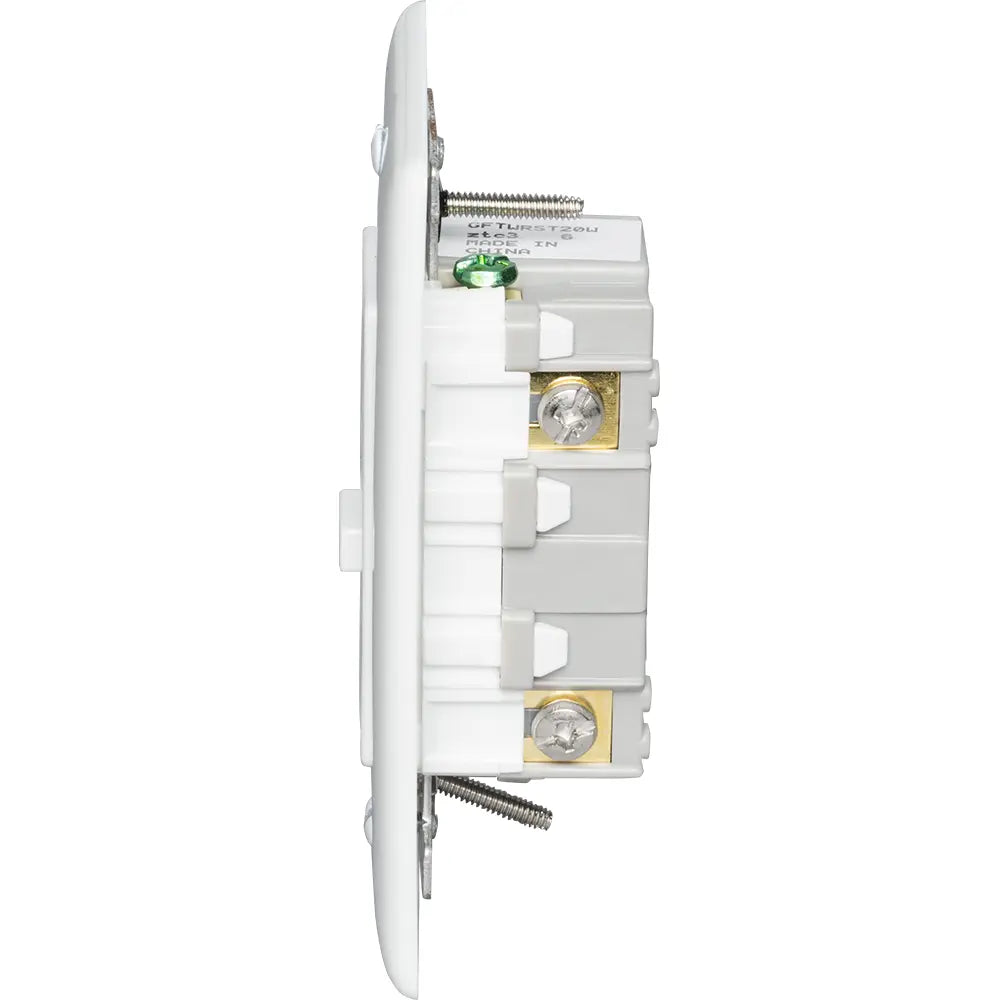

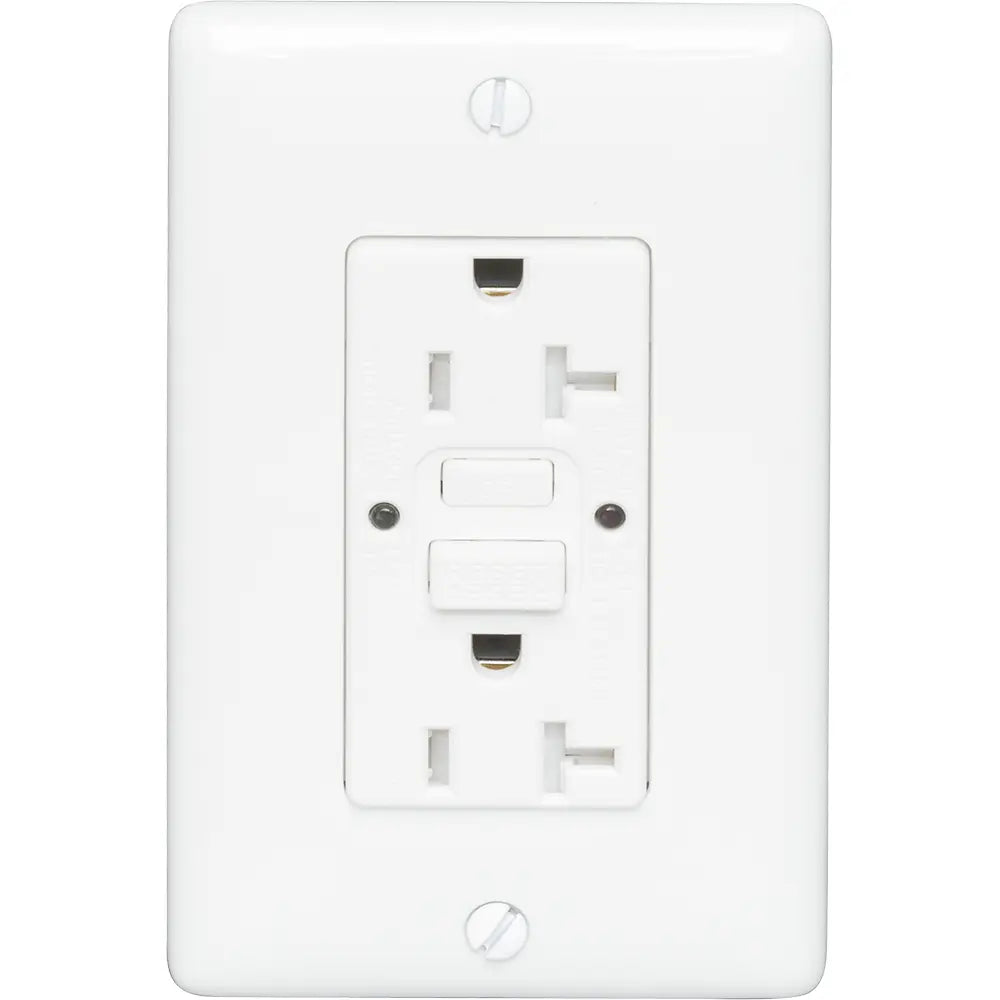

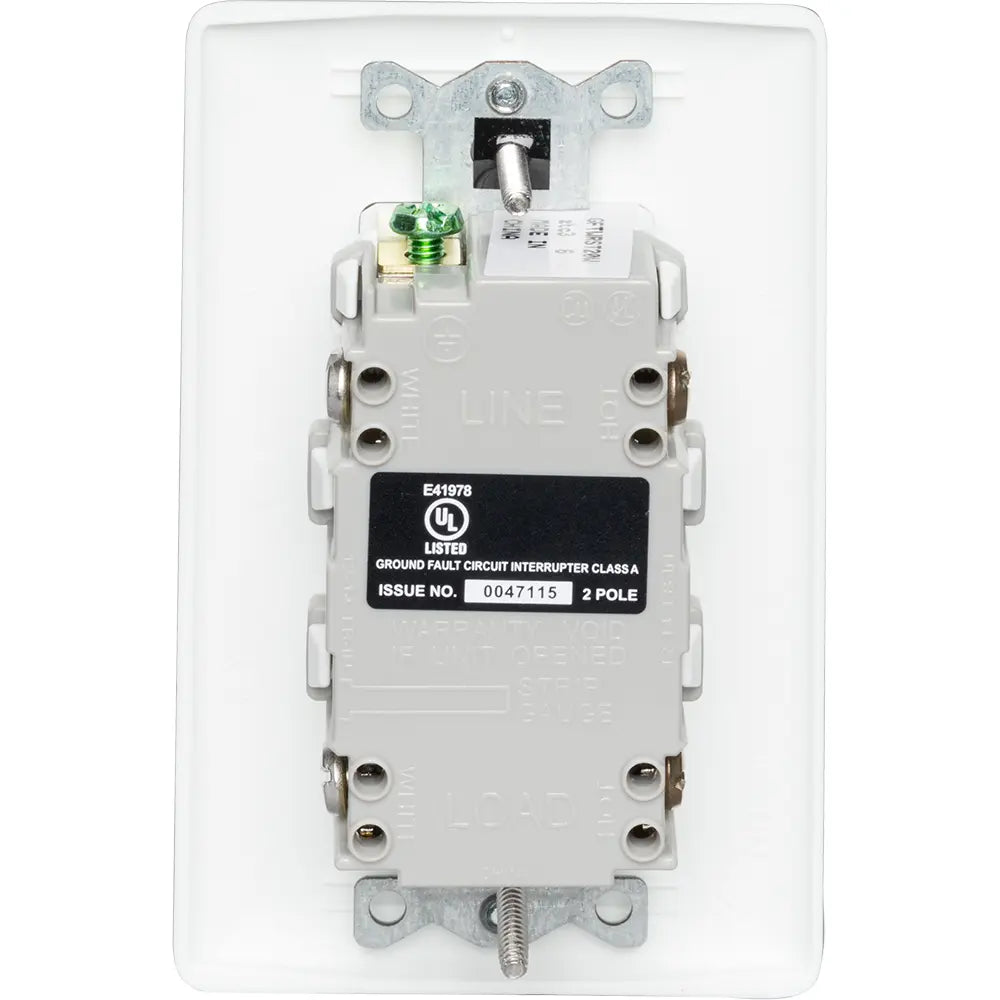

Bryant GFTWRST20W Heavy Duty Commercial Weather Resistant AUTOGUARD Self-Test GFCI Receptacle 20A

Product Description

The BRYANT GFTWRST20W is a heavy-duty commercial weather-resistant AUTOGUARD self-test GFCI receptacle. This receptacle continually tests and monitors for people protection capability automatically. It disconnects power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds.

• Patented shutter design for tamper-resistant protection
• Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications
• Patented AUTOGUARD self test technology

Product Highlights

This GFCI receptacle provides reliable ground fault protection and is suitable for use in harsh and damp environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: GFTWRST20W
• Country of Origin: CN

Technical Specifications

• Type: GFCI Receptacle
• Width: 1.75 Inches
• Height: 3.27 Inches
• Length: 1.47 Inches
• Connection: Screw terminal
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Country of Origin: CN
• Type Of Indicators: LED
• Amps: 20
• Material: Plastic
• Gangs: 1
• NEMA Configuration: 5-20R
• Volts AC: 125
• Wire Size: 14 to 10 AWG
• Phase: 1 ph
• No. Of Poles: 2
• No. of Wires: 3
• Temperature Rating: -30 to 150 deg F
• Dielectric Strength: 1500 V
• Nema Rating: NEMA 5-20R
• Additional Information: Tamper and Weather-Resistant
