Bryant EB-STATE3LTIBR-01 Ecobee 3 Lite Pro Smart Tstat Intellisense Capable EB-STATE3LTBR-01

Product Description

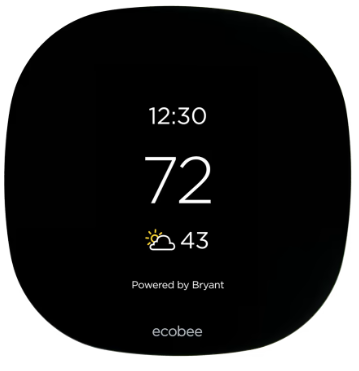

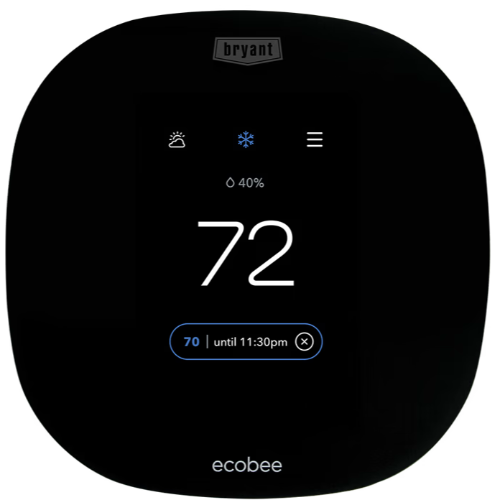

The Bryant EB-STATE3LTIBR-01 ecobee3 lite smart thermostat is a stylish choice for adding smart technology to your home. Pair with InteliSense-enabled Preferred Series equipment for connected comfort. It adapts to your schedule and the weather, providing monthly savings insights. The thermostat features a 3.5” full-color touch screen with a 320 x 480 pixel display.

• Allows for critical equipment performance data to be gathered and shared with your dealer.
• Save up to 23% on heating and cooling costs.
• Control from anywhere with your iOS or Android devices.

Product Highlights

The ecobee3 lite offers remote monitoring, efficient service, and adapts to your schedule for optimal performance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: EB-STATE3LTIBR-01

Technical Specifications

• PRODUCT_TYPE: RHTG
• Efficiency Management: Energy Star Energy Star qualified for local utility company rebates (where available)
• Smart Recovery: Intelligently adapts beyond manual programming for greater efficiency, while still meeting your ideal comfort levels
• Programmability: Create weekly schedule and includes vacation mode
• Hybrid Heat system capable: Allows Bryant gas furnace/heat pump system combinations for best heating efficiencies
• Remote access: Use free Apple and Android apps for smartphone, a tablet or computer to control and program the thermostat from anywhere
• Compatibility: Conventional (2H/2C)—Gas, oil, electric.
• Air-Cooled & Geo-Thermal Heat pumps: (2 stage heat pump + 2 stage aux heat/2 cool) (4H/2C).
• Dual-Fuel support: None
• Boiler: (2-stage-heating).
• Display: 3.5 full-color touch screen
• Pixel Display: 320 x 480 pixel display
• Powering Methods: Wired 24VAC through terminals C and Rc.
• Power Extender Kit: enables you to reliably power your thermostat without having to run a fifth wire
• Thermostat Height: 102.9 mm (4 in.)
• Thermostat Width: 102.9 mm (4 in.)
• Thermostat Depth: 21.4 mm (0.85 in.)
• Trim Plate Height: 170 mm (6.7 in.)
• Trim Plate Width: 170 mm (6.7 in.)
• Trim Plate Depth: 6.25 mm (0.25 in.)
• Device Type: Wi-Fi Thermostat
• Electrical Specification Input Voltage (AC): 24 VAC
• Mechanical Specification Dimensions (Inches): 4 x 4 x 0.85
• Energy Star Certified: Yes
• Remote Sensors: Compatible with SmartSensor
• Alexa Built-In: No
• Voice Control: No
• Stream Music: No
• Hands-Free Calling: No
