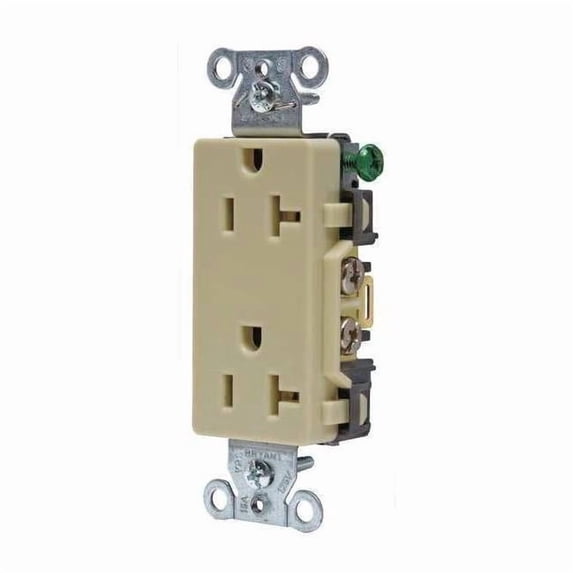

Bryant DRS20I Receptacle 20A 125V

Product Description

The BRYANT DRS20I is a 20A 125V straight blade receptacle. Designed for standard installations, it provides basic, non-locking power connections where electrical performance and durability are required. It is ideal for commercial and industrial environments.

• Current Rating: 20 A
• Voltage Rating: 125V AC
• Mount Type: Flush

Product Highlights

This receptacle features a durable composite housing, screw terminal wire connections, and is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DRS20I
• Country of Origin: China

Technical Specifications

• Amps: 20 Amps
• Brand: BRYANT
• Connection Orientation: Straight
• Cover Type: No Cover
• Current Rating: 20 A
• Face Plate Height: 2.7 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Ivory
• Housing Material: Composite
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial, Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 4.1 in
• Mount Type: Flush
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Poles: 2
• Number of Wires: 3
• Overall Depth: 1.1 in
• Phase: Single
• Polarized: Yes
• Receptacle Type: Decorator Duplex
• Standards: CSA Certified, Federal Specification, UL Listed
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• Resistance Properties: Impact Resistant
• Mounting Type: Flush
• Voltage: 125VAC
• Material: Nylon
• Application: Commercial Grade
• Series: Commercial
• NEMA Configuration: 5-20
• Outlet Type: Decorator
• Application Environment: Commercial
• AFCI: No
• Contact Material: Brass
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Special Resistance: Impact Resistant
• Surge Protection: No
• Wiring Method - Plugs and Receptacles: Back and Side
• Tamper Resistant: No
• Special Features: Corrosion resistant
• Sub-Category: Decorator Receptacles
• HP: 1 hp
• Outlet Type - Plugs and Receptacles: Decorator Duplex
• Surge Suppression: No
• Mounting Type - Plugs and Receptacles: Flush
• Corrosion Resistant: Yes
• NEMA Receptacle Configuration - Plugs and Receptacles: 5-20R
• Weather Resistant - Plugs and Receptacles: No
• Weather Resistant: No
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Style: Decorator
• Nema Rating: 5-20R
• Wattage: 2500
• Material - Mounting Hardware: Screw Mounting
• IP Rating: IP20
• Mounting Location: Outlet Box
• Part #: DRS20I
• Category: Plug/Receptacle
• Features: Impact-Resistant
• Count per pack: 1
• Width: 1.38 in
• Height: 1.07 in
• Length: 3.28 in
• Item: Straight Blade Receptacle
• UNSPSC: 39121406
