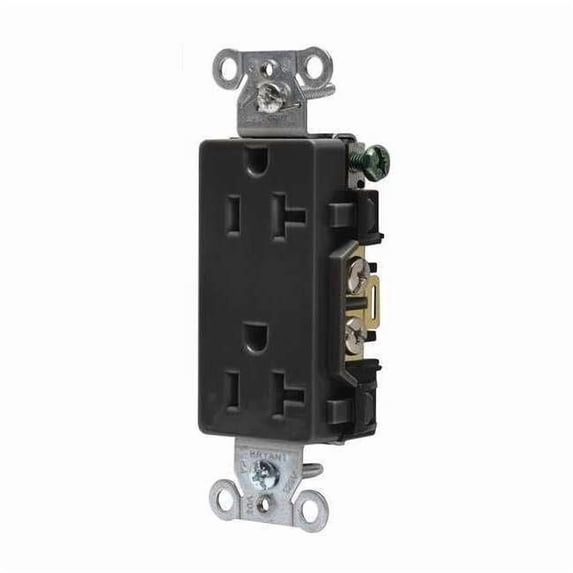

Bryant DRS20BLK Receptacles Duplex Decorator 20A 125V Single Pack

Product Description

The BRYANT DRS20BLK is a straight blade receptacle, designed for standard installations where electrical performance and durability are required. This decorator duplex receptacle is commercial/industrial grade and features a 2-pole, 3-wire grounding configuration. It is rated for 20A and 125V.

• Duplex design
• Commercial/Industrial Grade
• 2-Pole 3-Wire Grounding

Product Highlights

This receptacle provides reliable power connections for commercial and industrial applications, ensuring durability and performance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DRS20BLK
• Country of Origin: China

Technical Specifications

• Application: Commercial Grade
• Catalog Number: DRS20BLK
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Decorator Duplex
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Decorator
• Type: Duplex Receptacle
• UPC: 781786410589
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired Terminal Screws
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Voltage Rating Description: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Brand: BRYANT
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No Cover
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Black
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Polarized: Yes
• Receptacle Type: Decorator Duplex
• Special Resistance: Impact Resistant
• Standards: CSA Certified; Federal Specification; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Electrical outlet type: 20A, 125 V Outlet
• Amps: 20 Amps
• Count per pack: 1
• Mounting Type: Flush
• Voltage: 125VAC
• Depth: 1.1 in
