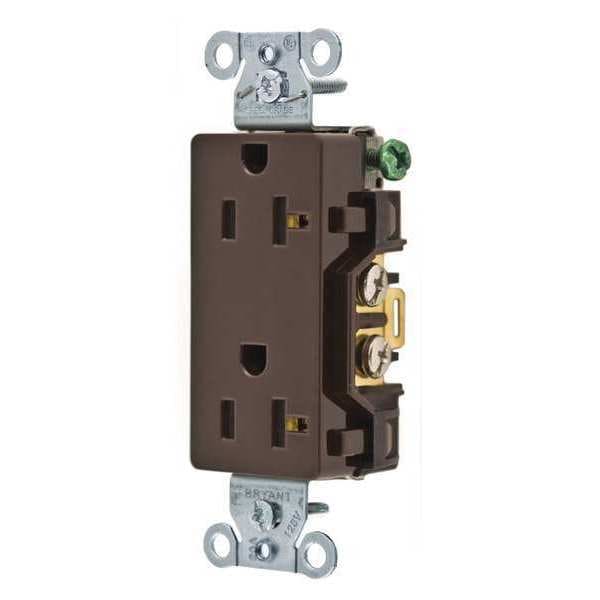

Bryant DRS20 Receptacle Decorator Duplex 20A 125V 5-20R

Product Description

The BRYANT DRS20 is a decorator duplex receptacle designed for commercial and industrial use. Rated for 20A and 125V, this straight blade receptacle features a 5-20R NEMA configuration. It is suitable for standard installations where electrical performance and durability are required.

• Commercial/Industrial Grade
• 2-Pole 3-Wire Grounding
• Back and Side Wired Terminal Screws

Product Highlights

This receptacle is ideal for basic, non-locking power connections in commercial and industrial settings.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DRS20
• Country of Origin: China

Technical Specifications

• Catalog Number: DRS20
• Application: Commercial Grade
• Type: Duplex Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Decorator
• UPC: 781786410534
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired Terminal Screws
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Wattage: 2500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Brand: Bryant
• Country of Origin: China
• Connection Orientation: Straight
• Cover Type: No Cover
• GFCI: No
• Grounding: Grounded
• Housing Material: Composite
• Mount Type: Flush
• Polarized: Yes
• Receptacle Type: Decorator Duplex
• Standards: CSA Certified, Federal Specification, UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Method: Back, Side
• Housing Color: Brown
• Number of Gangs: 1
• Outlet Type: Decorator
• Tamper Resistant: No
• Weather Resistant: No
• Wiring Method - Plugs and Receptacles: Back and Side
• Horsepower Rating: 1 hp
• Includes: Mounting Hardware
• AFCI: No
• Surge Protection: No
• Contact Material: Brass
• Grade: Federal Specification
• For Location: Indoor
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Overall Depth: 1.1 in
• NEMA Receptacle Configuration: 5-20R
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Mounting Location: Outlet Box
• Special Resistance: Impact Resistant
• Voltage: 125VAC
• Body Material: Composite
• Mounting Hardware Included: Yes
• Wire Connection Location: Back, Side
• Wire Connection Types: Screw Terminals
• Outlet Type - Plugs and Receptacles: Decorator Duplex
• NEMA Receptacle Configuration - Plugs and Receptacles: 5-20R
• Weather Resistant - Plugs and Receptacles: No
• Mounting Type - Plugs and Receptacles: Flush
• HP: 1 hp
• Surge Suppression: No
• Market: Commercial, Industrial
• Flange Type: Non-Flanged
• Power Indicator: No
• Application Environment: Commercial
• Corrosion Resistant: No
• Sub-Category: Duplex Receptacles
• Includes Mounting Hardware: Yes
• EU RoHS Indicator: Yes
• Item Type: Decorator Duplex
