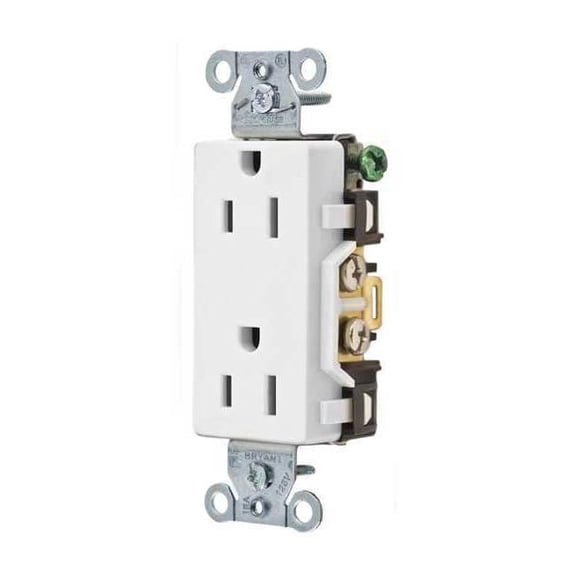

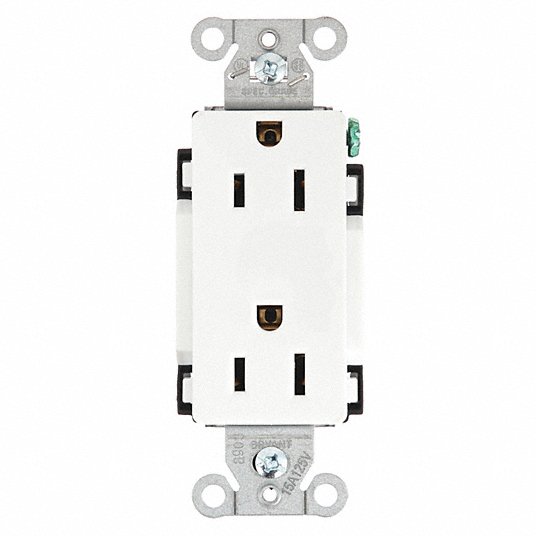

Bryant DRS15WHI Duplex Decorator Receptacle 15A 125V

Product Description

The BRYANT DRS15WHI is a duplex decorator receptacle designed for commercial and industrial use. Rated at 15A and 125V, this 2-pole, 3-wire grounding receptacle provides a reliable power connection. It is suitable for standard installations requiring electrical performance and durability without specialized features.

• Commercial/Industrial Grade
• 2-Pole 3-Wire Grounding
• Impact Resistant

Product Highlights

This receptacle is ideal for general purpose applications needing a robust and durable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DRS15WHI
• Country of Origin: China

Technical Specifications

• Application: Commercial Grade
• Catalog Number: DRS15WHI
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Decorator Duplex
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Decorator
• Type: Duplex Receptacle
• UPC: 781786410503
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired Terminal Screws
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Voltage Rating Description: 125 V
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Brand: BRYANT
• Manufacturer Part Number: DRS15WHI
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• Cover: No
• Face Plate Height: 2.7 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: White
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 4.1 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Overall Depth: 1.1 in
• Polarized: Yes
• Receptacle Type: Decorator Duplex
• Special Resistance: Impact Resistant
• Standards: CSA Certified; Federal Specification; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Electrical outlet type: 15A, 120 V Outlet
• Amps: 15 Amps
• Features: Impact-Resistant
• Count per pack: 1
• Country of Origin: China
• Special Features: Standard Product
• Description - Invoice: RECP, SB, COM, DECO, 15A 125V, 5-15R, WH
