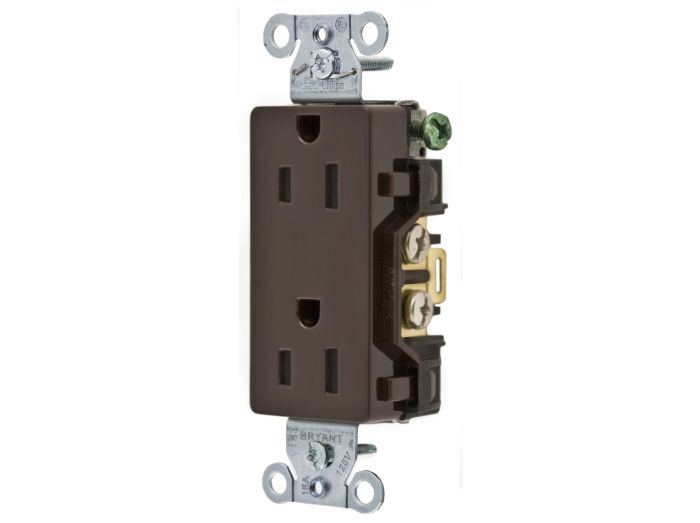

Bryant DRS15 Receptacle, Straight Blade, Commercial, 15A, 125V

Product Description

The Bryant DRS15 is a straight blade, commercial grade receptacle. These general purpose receptacles provide basic, non-locking power connections without added protection or monitoring features. They are designed for standard installations where electrical performance and durability are required.

• Current Rating: 15 A
• Voltage Rating: 125V AC
• Wiring Method: Back/Side

Product Highlights

This receptacle is ideal for commercial and industrial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DRS15
• Country of Origin: China

Technical Specifications

• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• Current Rating: 15 A
• Face Plate Height: 2.7 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Brown
• Housing Material: Composite
• IP Rating: IP20
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 4.1 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wall Plates Included: 0
• Number of Wires: 3
• Overall Depth: 1.1 in
• Phase: Single
• Polarized: Yes
• Receptacle Type: Decorator Duplex
• Special Resistance: Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• Voltage: 125 VAC
• Connection Type: Duplex Receptacle
• NEMA Configuration: 5-15R
• Color: Brown
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
