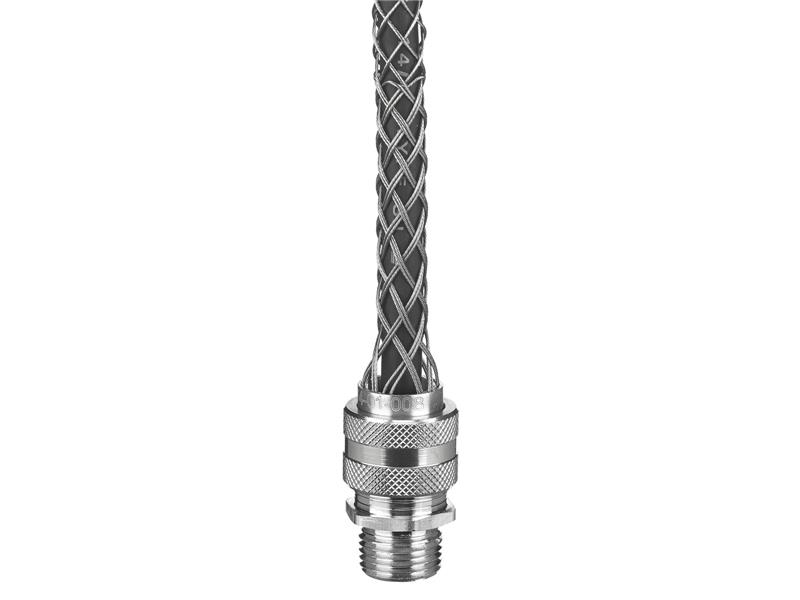

Bryant DC871 Deluxe Cord Grip .875-1.000 inches

Product Description

The BRYANT DC871 is a deluxe cord grip with a straight male design and stainless steel mesh. It is suitable for indoor and outdoor environments where cables are exposed to moisture, splash, or washdown. It provides pullout protection from tension, vibration, motion, and strain. Accepts cable diameter sizes from 0.875" to 1.000".

• Straight Male
• Aluminum Fitting, Stainless Steel Mesh
• For Insulated Cables

Product Highlights

Deluxe cord grip with straight male thread for insulated cables, providing strain relief in harsh environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DC871

Technical Specifications

• Application: Straight Male
• Catalog Number: DC871
• EU RoHS Indicator: Yes
• Material: Aluminum Fitting, Stainless Steel Mesh
• Material - Mounting Hardware: Locknut or Tapped Opening
• OEM Brand Name: Hubbell Bryant
• Series: Deluxe Cord Grips
• Style: For Insulated Cables
• Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
• Thread Size: 1 NPT
• Type: Straight Male Thread
• UPC: 781786243040
• Cable Diameter Range: 0.875 in-1.000 in
• Number of Conductors: Jacketed UL Listed Cable Only
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: DC871
• Manufacturer: Bryant Electric
• Product Series: Deluxe Cord
• Family Series: Bryant Electric Grips, Deluxe Cord Series
• Description: Deluxe Cord Grip, Straight Male, .875-1.000, 1 With Mesh
• Mounting: Stainless Steel Mesh
• Hub Size: 1 " NPT
• Brand: Bryant
• MPN: DC871
• Category: Electrical Accessory
