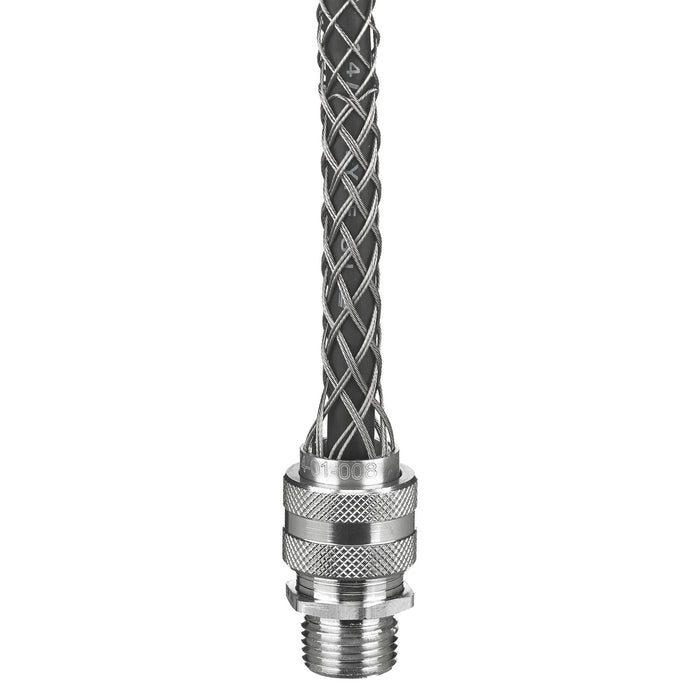

Bryant DC5012 Deluxe Cord Grip, Straight Male, .500-.625 inches, 1/2 inches With Mesh

Product Description

The BRYANT DC5012 deluxe cord grip is a straight male thread designed for insulated cables. It features an aluminum fitting and stainless steel mesh construction. It is suitable for straight male applications with a 1/2 NPT thread size. The cord grip is designed for jacketed UL listed cables only.

• Straight Male Thread
• Aluminum Fitting, Stainless Steel Mesh
• Temperature Rating: Minimum -30 Deg F to 225 Deg F

Product Highlights

The cord grip provides pullout protection from tension, vibration, motion, and strain in indoor and outdoor environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DC5012
• Country of Origin: China

Technical Specifications

• Type: Straight Male Thread
• Style: For Insulated Cables
• Series: Deluxe Cord Grips
• Material: Aluminum Fitting, Stainless Steel Mesh
• Application: Straight Male
• Thread Size: 1/2 NPT
• Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
• Cable Diameter Range: 0.500 in-0.625 in
• Number of Conductors: Jacketed UL Listed Cable Only
• Material - Mounting Hardware: Locknut or Tapped Opening
• EU RoHS Indicator: Yes
• OEM Brand Name: Hubbell Bryant
• UPC: 781786242623
• Standards - RoHS Compliance Status: CM
• Hub Size: 0.5 " NPT
• Product Series: Deluxe Cord
• Family Series: Bryant Electric Grips, Deluxe Cord Series
• Description: Deluxe Cord Grip, Straight Male, .500-.625, 1/2 With Mesh
• Mounting: Stainless Steel Mesh
