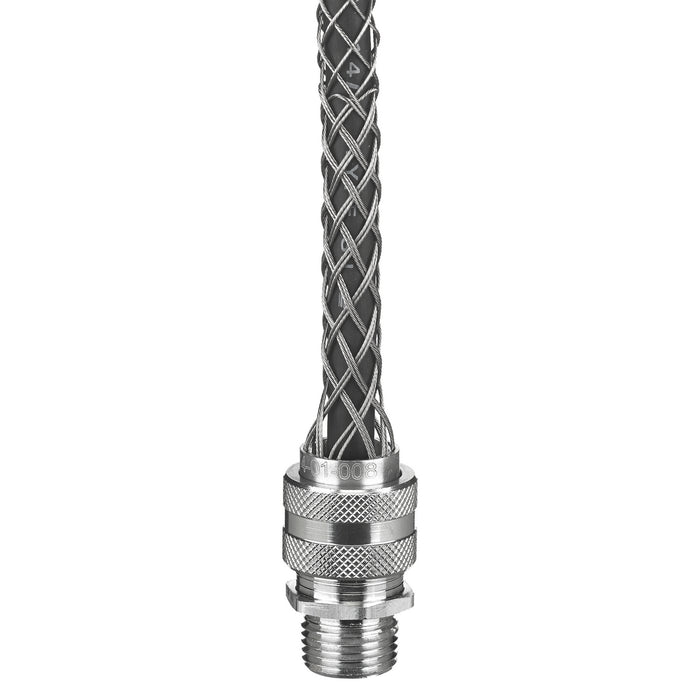

Bryant DC3712 Deluxe Cord Grip Straight Male .375-.500 inches 1/2 inches With Mesh

Product Description

The BRYANT DC3712 is a deluxe cord grip with a straight male end, designed for insulated cables. It provides strain relief and pullout protection from tension, vibration, motion, and strain. Suitable for indoor and outdoor environments where cords are exposed to moisture, splash, or washdown. It accepts cable diameters from 0.375 to 0.500 inches and has a 1/2" NPT thread.

• Straight Male
• For Insulated Cables
• Material: Aluminum Fitting, Stainless Steel Mesh

Product Highlights

Deluxe cord grip for strain relief in harsh environments, with a straight male end and stainless steel mesh.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DC3712
• Country of Origin: China

Technical Specifications

• Application: Straight Male
• Catalog Number: DC3712
• EU RoHS Indicator: Yes
• Material: Aluminum Fitting, Stainless Steel Mesh
• Material - Mounting Hardware: Locknut or Tapped Opening
• OEM Brand Name: Hubbell Bryant
• Series: Deluxe Cord Grips
• Style: For Insulated Cables
• Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
• Thread Size: 1/2 NPT
• Type: Straight Male Thread
• UPC: 781786242609
• Cable Diameter Range: 0.375 in-0.500 in
• Number of Conductors: Jacketed UL Listed Cable Only
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: DC3712
• Manufacturer: Bryant Electric
• Product Series: Deluxe Cord
• Family Series: Bryant Electric Grips, Deluxe Cord Series
• Description: Deluxe Cord Grip, Straight Male, .375-.500, 1/2 With Mesh
• Mounting: Stainless Steel Mesh
• Hub Size: 0.5 " NPT
• Brand: BRYANT
• MPN: DC3712
