Bryant DC2623 Deluxe Cord Grip Straight Male 2.625-2.812 inches

Product Description

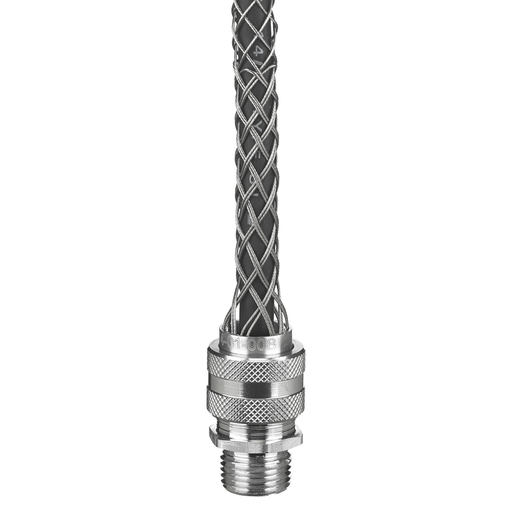

The BRYANT DC2623 is a deluxe cord grip with a straight male design. It is designed for insulated cables with a cable diameter range of 2.625 to 2.812 inches. The cord grip features an aluminum fitting and stainless steel mesh construction.

• Straight male application
• Aluminum fitting with stainless steel mesh
• Temperature rating: Minimum -30 Deg F to 225 Deg F

Product Highlights

The DC2623 cord grip ensures secure cable connections in various environments with its robust construction and wide temperature range.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DC2623
• Country of Origin: US

Technical Specifications

• Application: Straight Male
• Catalog Number: DC2623
• EU RoHS Indicator: Yes
• Material: Aluminum Fitting, Stainless Steel Mesh
• Material - Mounting Hardware: Locknut or Tapped Opening
• OEM Brand Name: Hubbell Bryant
• Series: Deluxe Cord Grips
• Style: For Insulated Cables
• Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
• Thread Size: 3 NPT
• Type: Straight Male Thread
• UPC: 781786243156
• Cable Diameter Range: 2.625 in-2.812 in
• Number of Conductors: Jacketed UL Listed Cable Only
