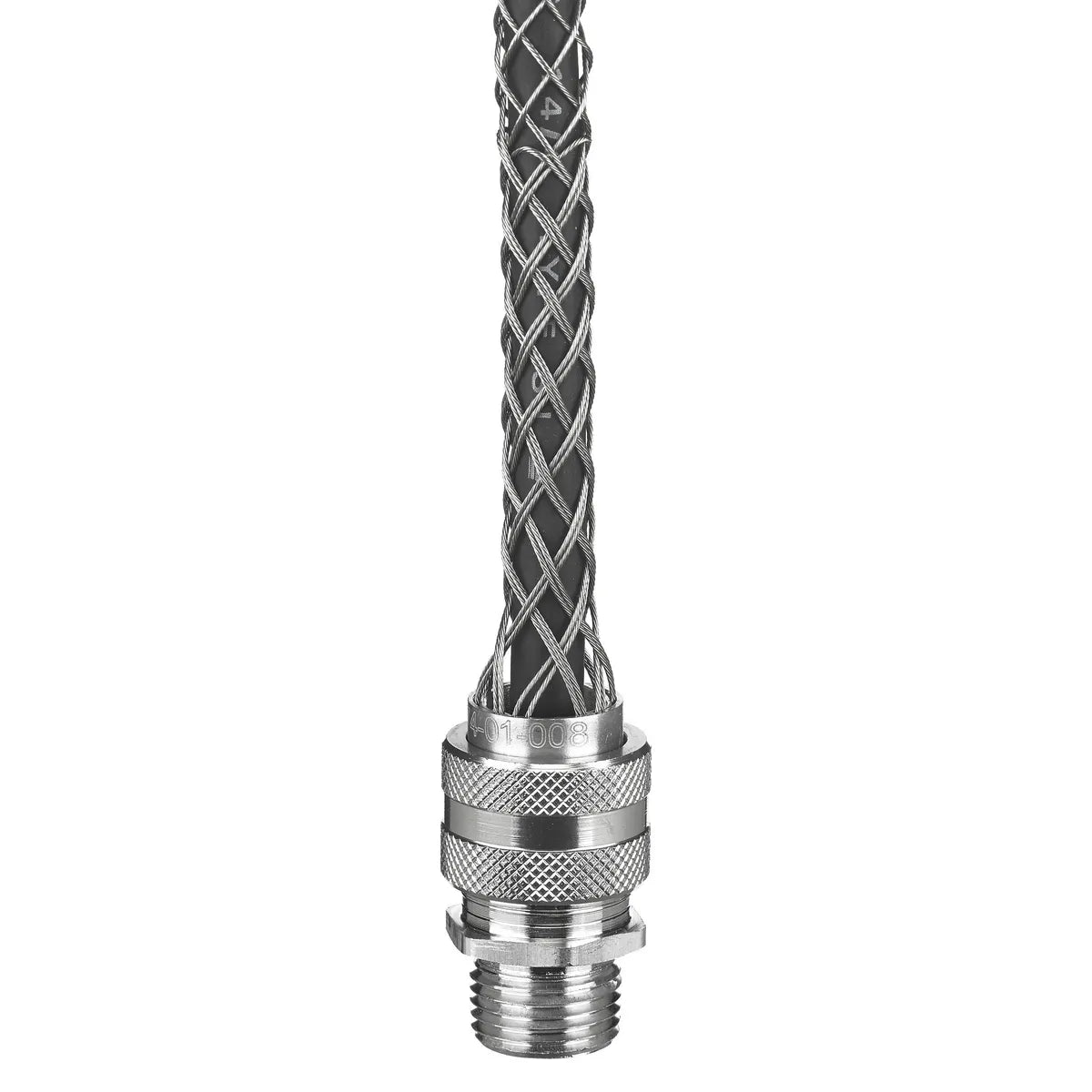

Bryant DC193212 Deluxe Cord Grip Straight Male, 1.937-2.062 inches, 2 1/2 inches With Mesh

Product Description

The BRYANT DC193212 is a deluxe cord grip with a straight male end, designed for insulated cables. It features an aluminum fitting and stainless steel mesh. This cord grip provides strain relief and ensures a secure connection for various applications. It is suitable for use with jacketed UL listed cables.

• Straight Male
• Standard Product
• For Insulated Cables

Product Highlights

Deluxe cord grip with straight male end, aluminum fitting, and stainless steel mesh for secure cable connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DC193212

Technical Specifications

• Application: Straight Male
• Catalog Number: DC193212
• EU RoHS Indicator: Yes
• Material: Aluminum Fitting, Stainless Steel Mesh
• Material - Mounting Hardware: Locknut or Tapped Opening
• OEM Brand Name: Hubbell Bryant
• Series: Deluxe Cord Grips
• Style: For Insulated Cables
• Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
• Thread Size: 2 1/2 NPT
• Type: Straight Male Thread
• UPC: 781786242975
• Cable Diameter Range: 1.937 in-2.062 in
• Number of Conductors: Jacketed UL Listed Cable Only
• Mounting Hardware: Locknut Or Tapped Opening
• Thread Type: NPT
• Item: Strain Relief Cord Grip
