Bryant DC181X2 Deluxe Cord Grip Straight Male 1.812-1.937 inches 2 inches With Mesh

Product Description

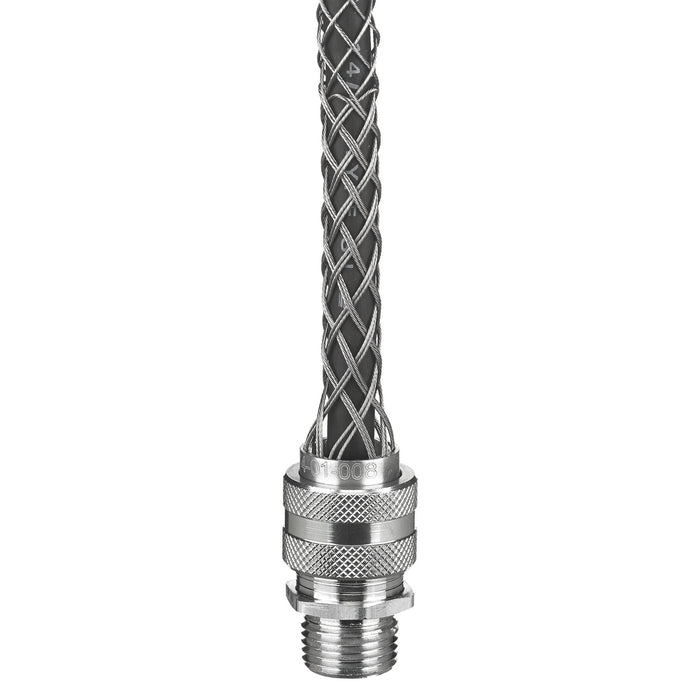

The BRYANT DC181X2 deluxe cord grip is a straight male fitting with a 1.812-1.937" cable diameter range and 2" thread size, designed with stainless steel mesh. Suitable for indoor and outdoor environments, it provides pullout protection from tension, vibration, motion, and strain where cable is exposed to moisture, splash, or washdown.

• Straight Male
• For Insulated Cables
• Standard Product

Product Highlights

Deluxe cord grip with straight male thread for insulated cables, providing strain relief in harsh environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DC181X2
• Country of Origin: United States

Technical Specifications

• Application: Straight Male
• Catalog Number: DC181X2
• EU RoHS Indicator: Yes
• Material: Aluminum Fitting, Stainless Steel Mesh
• Material - Mounting Hardware: Locknut or Tapped Opening
• OEM Brand Name: Hubbell Bryant
• Series: Deluxe Cord Grips
• Style: For Insulated Cables
• Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
• Thread Size: 2 NPT
• Type: Straight Male Thread
• UPC: 781786252707
• Cable Diameter Range: 1.812 in-1.937 in
• Number of Conductors: Jacketed UL Listed Cable Only
• Manufacturer Part Number: DC181X2
• Manufacturer: Bryant Electric
• Product Series: Deluxe Cord
• Family Series: Bryant Electric Grips, Deluxe Cord Series
• Description: Deluxe Cord Grip, Straight Male, 1.812-1.937, 2 With Mesh
• Mounting: Stainless Steel Mesh
• Hub Size: 2 " NPT
• Product Name: Bryant Straight Male Deluxe Cord Grip 1.81-1.93 Inch 2 Inch With Mesh (DC181X2)
• Brand: Bryant
• SKU: DC181X2
• Mfr. Part Number: DC181X2
• UPC Code: #781786252707
• Weight: 2.15 lb
• Country of Origin: United States
• Width: 4.200 in
• Special Features: Standard Product
• Number Of Conductors: Jacketed UL Listed Cable Only
• Description - Invoice: STR MALE, DCG, 1.81-1.93", 2" W/MESH
• Harmonization Code: 7616995190
• MSDS Flag: No
• Carton - SCC-14 Next Lower Level Sub Pack: 00781786252707
• Lowest Level UOM: Each
• Certifications: EU RoHS Indicator Yes
