Bryant DC1752 Strain Relief Cord Grip 1.75-1.87in 2in W/Mesh

Product Description

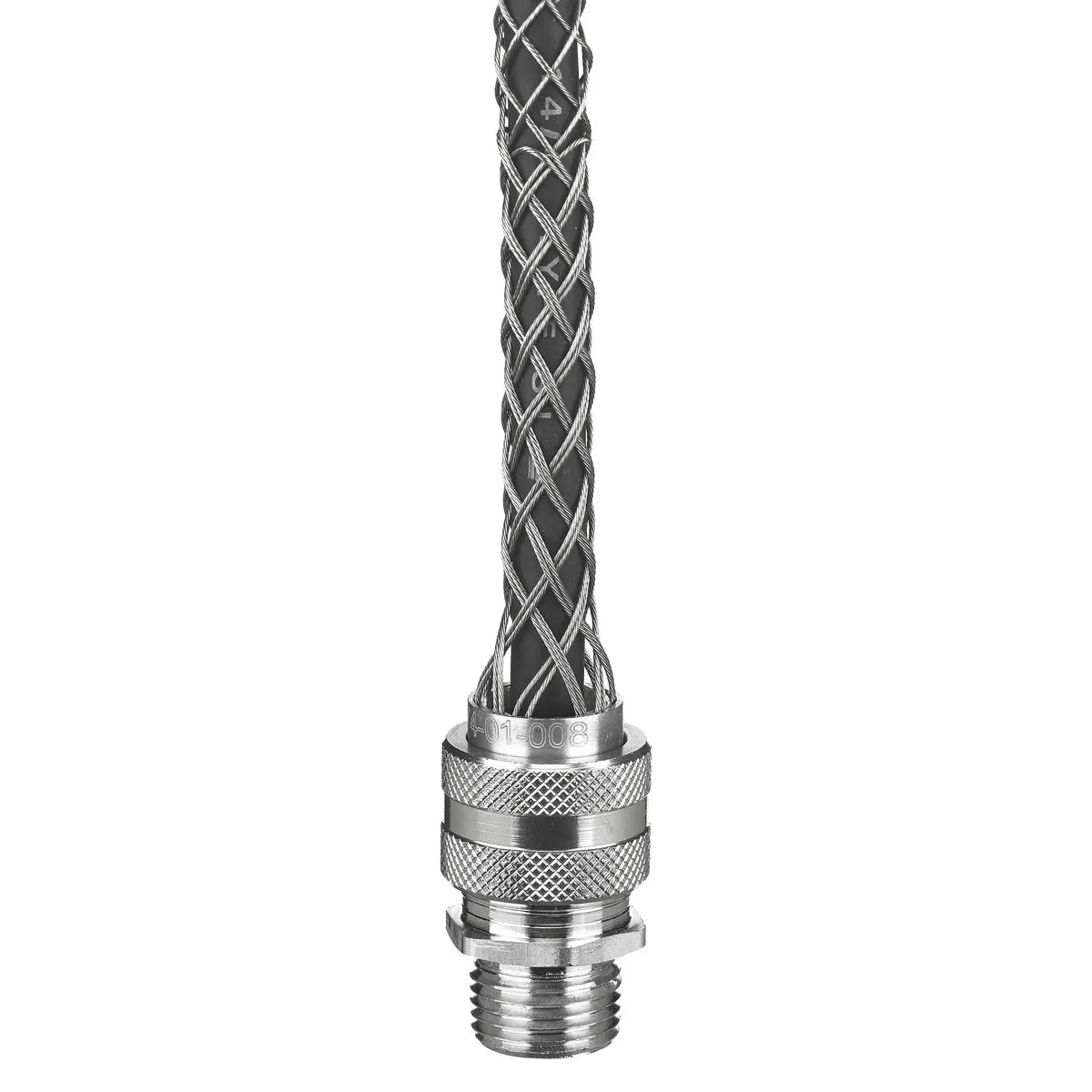

The Bryant DC1752 Strain Relief Cord Grip is designed for indoor and outdoor environments. It provides cable or arc-of-bend control and protects against moisture, splash, or washdown. This cord grip prevents pullout from tension, vibration, motion, and strain. It is a straight male deluxe cord grip with stainless steel mesh.

• Straight Male
• Cable Diameter Range: 1.75" to 1.875"
• Thread Size: 2" NPT

Product Highlights

Deluxe Cord Grip with stainless steel mesh for insulated cables, suitable for a temperature range of Minimum -30 °F To +225°F.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DC1752

Technical Specifications

• Manufacturer Part Number: DC1752
• Manufacturer: Bryant Electric
• Product Series: Deluxe Cord
• Family Series: Bryant Electric Grips, Deluxe Cord Series
• Description: Deluxe Cord Grip, Straight Male, 1.750-1.875, 2 With Mesh
• Hub Size: 2 " NPT
• Item: Strain Relief Cord Grip
• Application: Straight Male
• Cable Diameter Range: 1.75" to 1.875"
• Material: Aluminum Fitting, Stainless Steel Mesh
• Mounting Hardware: Locknut Or Tapped Opening
• Series: Deluxe Cord Grips
• Style: For Insulated Cables
• Temperature Rating: Minimum -30 °F To +225°F
• Thread Size: 2"
• Thread Type: NPT
• Type: Straight Male Thread
• EU RoHS Indicator: Yes
• Material - Mounting Hardware: Locknut or Tapped Opening
• Number of Conductors: Jacketed UL Listed Cable Only
