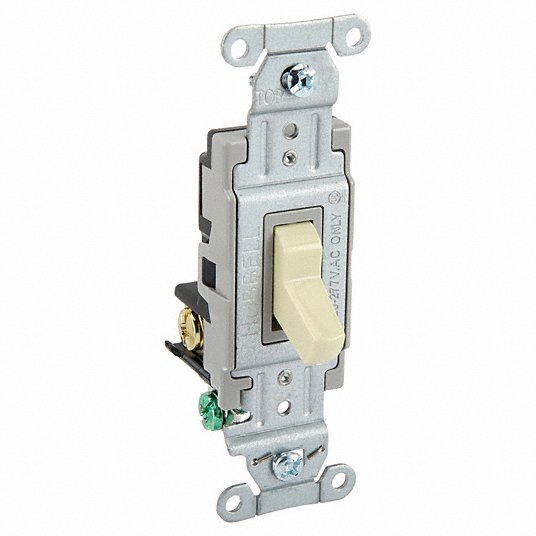

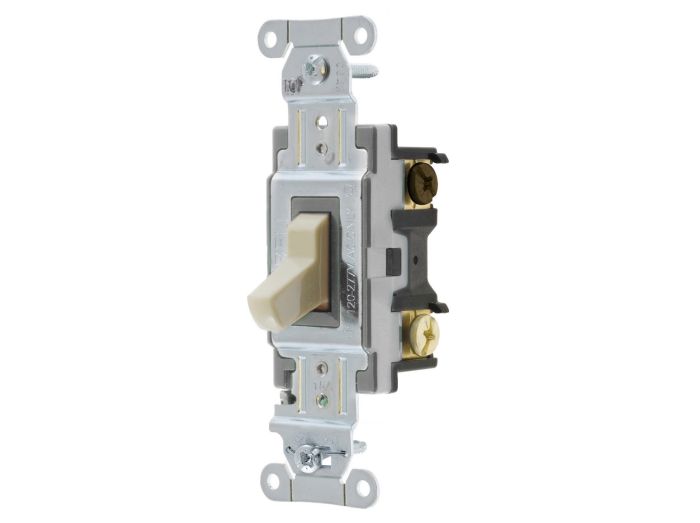

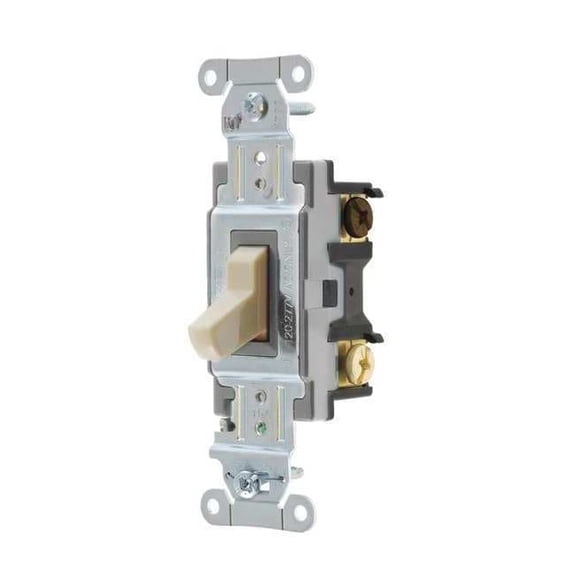

Bryant CSB315BI wall switch, 3-way, 15A 120/277V

Product Description

The BRYANT CSB315BI is a wall switch designed for 3-way circuits. This commercial-grade toggle switch is rated for 15A at 120/277V AC and features back and side wiring. It provides power control for electric devices and equipment such as ceiling fans, lights, outlets, and appliances.

• Commercial Grade
• Toggle Switches
• General Purpose AC

Product Highlights

The BRYANT CSB315BI is ideal for general purpose AC applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CSB315BI
• Country of Origin: China

Technical Specifications

• Catalog Number: CSB315BI
• Amperage Rating: 15 A
• Voltage Rating: 120/277 VAC
• Series: General Purpose
• Style: Three Way
• Type: Toggle
• UPC: 781786737402
• Current Rating: 15 A
• Horsepower Rating: 2 hp
• Illuminated: No
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: No
• Standards: CSA Certified
• Switch Function: Maintained
• Switch Style: Toggle
• Switch Type: 3-Way
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121507
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Switches
• Grade: Commercial
• Switch Configuration: Three Way
• Voltage: 120 VAC, 277 VAC
• Operator Color: Ivory
• Locking: No
• Wiring: Back and Side Wired
• Approvals: CSA, UL
• Comments: Self-Grounding
• Electrical switch type: Toggle Switch
• Height: 1.7 in
• Length: 4.300
• Width: 1.9 in
