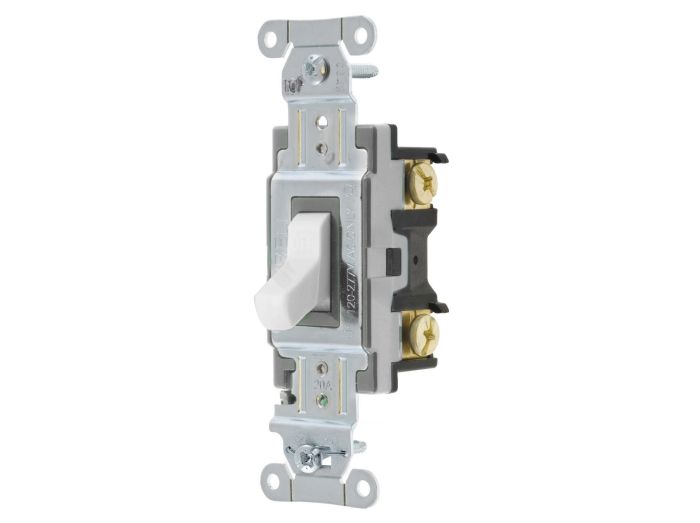

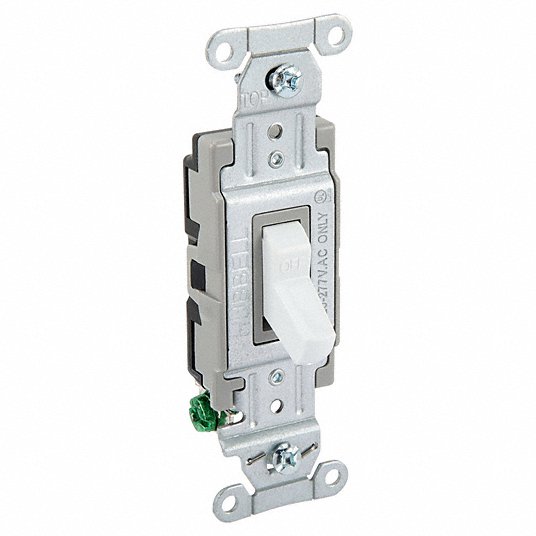

Bryant CSB120BW Wall Switch, 20A 120/277V AC

Product Description

The BRYANT CSB120BW is a commercial-grade, single-pole toggle switch designed for general-purpose AC power control. Rated at 20A and 120/277V AC, it features back and side wiring for versatile installation. This switch is suitable for controlling electrical devices and equipment such as ceiling fans, lights, outlets, and appliances.

• Commercial Grade
• Single Pole
• Back and Side Wired

Product Highlights

The BRYANT CSB120BW toggle switch provides reliable power control for various electrical applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CSB120BW
• Country of Origin: China

Technical Specifications

• Catalog Number: CSB120BW
• Color: White
• Series: General Purpose
• Style: Single Pole
• Type: Toggle
• UPC: 781786736702
• Amperage Rating: 20 A
• Current / Amperage Rating: 20 A
• Voltage Rating: 120/277 VAC
• Voltage Rating Description: 120/277 VAC
• Manufacturer Part Number: CSB120BW
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Switches
• Grade: Commercial
• Switch Configuration: Single Pole
• Voltage: 120 VAC, 277 VAC
• Current Rating: 20 A
• Operator Color: White
• Illuminated: No
• Locking: No
• Wiring: Back and Side Wired
• Approvals: CSA, UL
• Comments: Self-Grounding
• Model: CSB120BW
• MPN: CSB120BW
• Horsepower Rating: 2
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: No
• Standards: CSA Certified
• Switch Function: Maintained
• Switch Style: Toggle
• Switch Type: Single Pole
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121507
