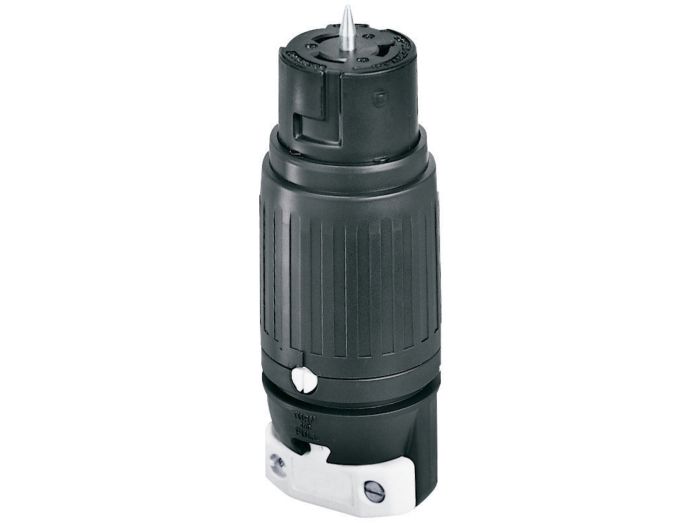

Bryant CS8464 Female Connector Body 50A 480 V AC

Product Description

The BRYANT CS8464 is an industrial-grade female connector body, designed for heavy-duty applications. Rated at 50A and 480V AC, this 2-pole, 3-wire grounding connector features a non-NEMA configuration and screw terminals. Its robust construction ensures reliable performance in demanding environments.

• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Thermoplastic polyester interior provides heat resistance and impact strength
• Oversized contacts minimize operating temperature

Product Highlights

Heavy-duty industrial female connector body with high clamping pressure and heat resistance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CS8464
• Country of Origin: United States

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: CS8464
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Insulation: Insulated Body
• Item Type: 50A Heavy Duty Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Extra Heavy Duty
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 w/o impact, -25 with impact.
• Type: Connector Body
• UPC: 781786538191
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Amperage Description: 50 Amp
• Current Rating: 50 A
• Voltage Rating: 480 VAC
• Voltage Rating Description: 480 VAC
• Conductor Range: #6 AWG
• Number of Conductors: 3-Wire Grounding
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Manufacturer Part Number: CS8464
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Body Type: Straight
• Connection Type: Connector
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Comments: Heavy Duty
• Connector Type: Locking
• Rating - Amps: 50A
• Rating - Volts: 480V
• Cord Diameter: 0.750 - 1.150
